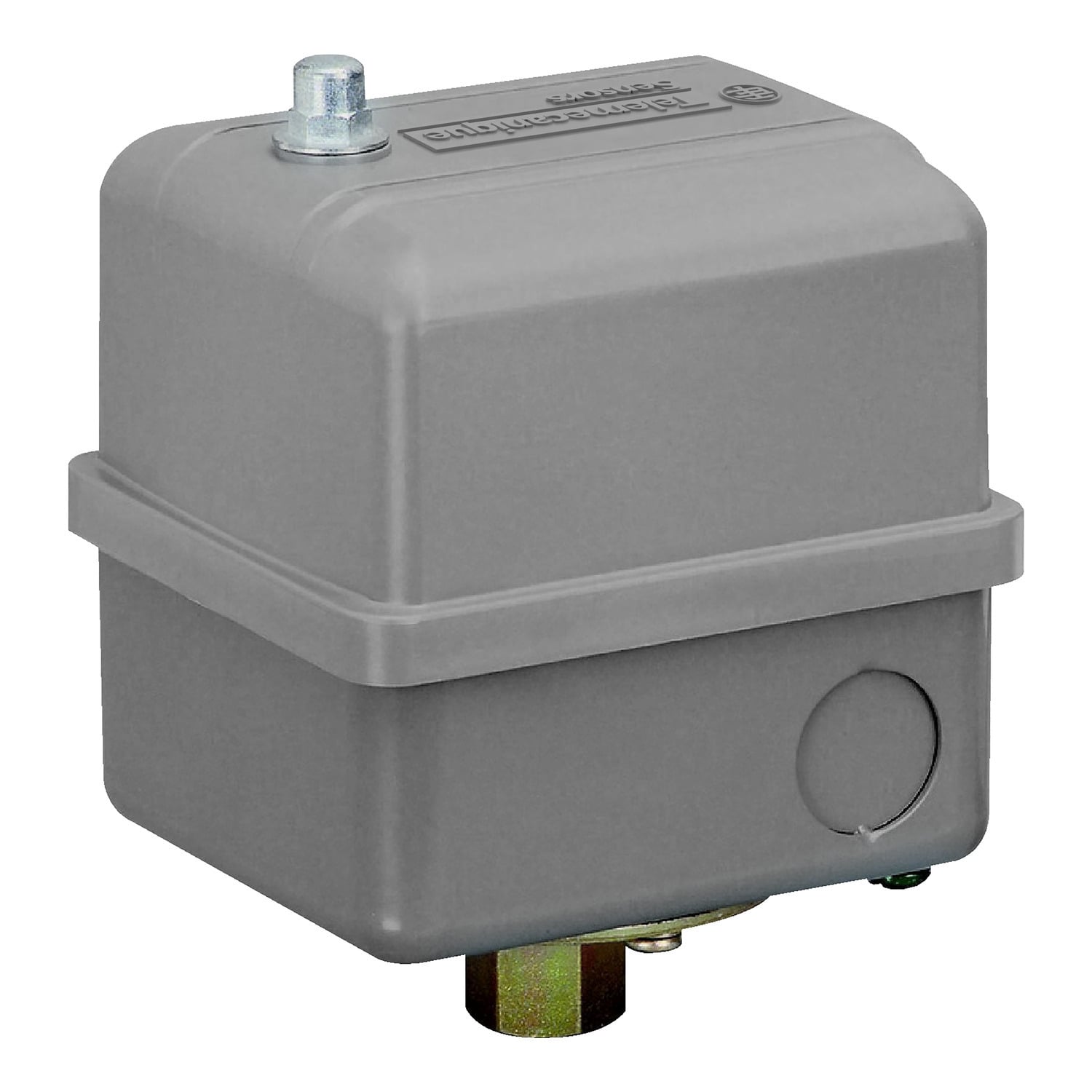

9013GSG2J99H Pumptrol Adjustable Differential Pump/Compressor Switch, 20 to 80 psi Pressure, 15 to 30 psi Differential, 1NO-1NC DPST-DB Contact, Screw Clamp Connection
- MFR:
- Telemecanique Sensors
- MFR #:
- 9013GSG2J99H
- UPC:
- 785901068099
- Item #:
- 330589
9013GSG2J99H Pumptrol Adjustable Differential Pump/Compressor Switch, 20 to 80 psi Pressure, 15 to 30 psi Differential, 1NO-1NC DPST-DB Contact, Screw Clamp Connection
- MFR #:
- 9013GSG2J99H
- UPC:
- 785901068099
- Item #:
- 330589
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$236.45
each
pump or compressor switch 9013GS - adjustable diff. - factory setting
Manuals and Documentation
| Catalog Number | 9013GSG2J99H |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | Control electrically driven water pumps and air compressors;Power circuit;Regulation between 2 thresholds |
| Contact Configuration | NC-NO, snap action, DPST-DB, Form Zb |
| Enclosure | NEMA 1 UL 50 |
| Operating Cycles | 10 CYC/MN |
| Process Connection | 0.25 INCH NPSF INTERNAL UL 508 |
| Special Features | - |
| Standard | CSA FILE LR25490-UL LISTED FILE E12158,IP20 IEC 60529,NSF ANSI 372-UL 508-CE |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=393763&lang=en-us |
| UPC | 785901068099 |
| GTIN | 00785901068099 |
| Item Type | Electromechanical pressure switch;Adjustable differential |
| Operating Temperature | -33-257 A Degrees F |
| System Pressure | 80 PSI 5-60 PSI) |
