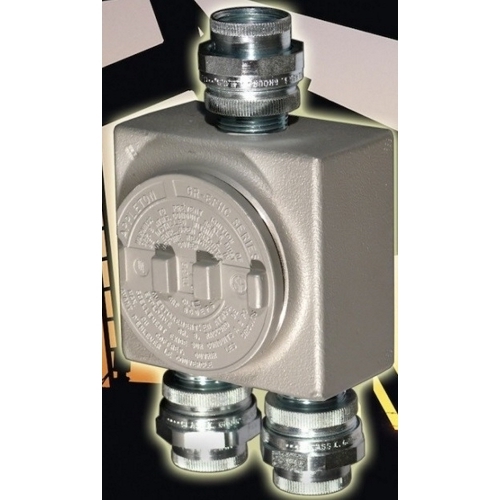

Threaded Conduit Body with Union Hub, 3/4 inch, Malleable Iron, Triple-Coat (Zinc Electroplate/Chromate/Epoxy Powder Coat)
MFR: Appleton Electric
MFR #: GRUSE75
UPC: 781381446259
Item #: 33019
Threaded Conduit Body with Union Hub, 3/4 inch, Malleable Iron, Triple-Coat (Zinc Electroplate/Chromate/Epoxy Powder Coat)
MFR #: GRUSE75
UPC: 781381446259
Item #: 33019
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$301.08
each
UNILETS GRUSE Outlet Box With Union Hubs, Number Of Outlet: 3, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Size: 3/4 IN, Cable Entry: (3) 3/4 IN Union Hub, Cubic Capacity: 19 CU-IN, Knockouts: No, Cover Opening: 3-1/4 IN, Width
Manuals and Documentation
Features
- Explosion proof
- Dust-Ignition proof
- For use with threaded metal conduit
- UL listed
- CSA certified
- Catalog Number
- GRUSE75
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Sub Brand
- UNILETS
- Country of Origin
- Mexico
- Made in USA
- No
- Application
- For Use With Threaded Metal Conduit
- Cable Entry
- (3) 3/4 IN Union Hub
- Cubic Capacity
- 19 CU IN
- Knockouts
- No
- Material
- Copperfree (4/10 Of 1 PCT Maximum) Aluminum
- Special Features
- Explosionproof, dust-ignitionproof; Copper free aluminum cover and body with externally threaded cover; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with internal ground screw; General purpose wiring; Union hubs permit easy wiring; Smooth, rounded integral bushing in each hub type box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance
- Standard
- UL 886, UL File Number E10444, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
- RoHS Indicator
- Contact Manufacturer
- UPC
- 781381446259
- GTIN
- 00781381446259
- Item Type
- GRUSE Outlet Box With Union Hubs
- Length
- 9.0000
- Length UOM
- Inch
- Width
- 6.8000
- Width UOM
- Inch
- Height
- 4.8000
- Height UOM
- Inch
- Weight
- 4.310
- Weight UOM
- Pounds
- Size
- 3/4
