Intermatic

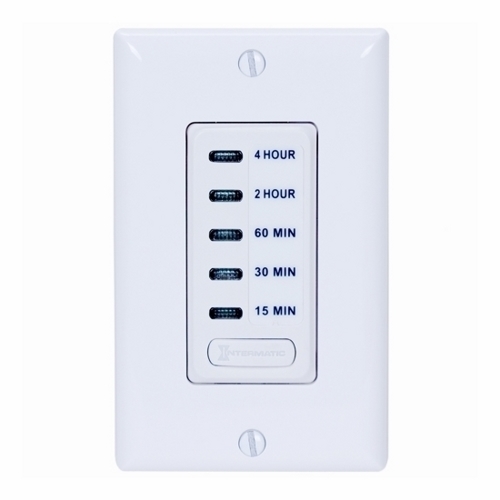

EI215W EI200 Auto Shut-Off In-Wall Electronic Countdown Timer, 15/30/60 min to 2/4 hr Setting, 120 V AC, 1/2 hp, 1NO 1 Form A SPST Contact, 1 Poles

MFR:
Intermatic
MFR #:
EI215W
UPC:
078275108509
Item #:
32977

Availability

Location Available Qty
Available 4 ea
$52.06 each

This timer requires no programming; preset countdown times are activated by pressing a single button. Silent operation makes this timer ideal for applications where the noise of mechanical countdown timers is of concern. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Manuals and Documentation
Catalog Number EI215W
Manufacturer Intermatic
Brand Intermatic
Country of Origin China
Made in USA No
Action 1 x SPST
Amperage Rating 15
Application Indoor, CFLs Lighting, LED Lighting, Fans, HVACR
Contact Configuration 1 NO
Contact Rating 8.3 AMP @ 120 VAC (Tungsten-Incandescent), 8 AMP @ 120 VAC (Ballast-Magnetic), 15 AMP @ 120 VAC (Resistive-Heater)
Mounting Wall
Number of Poles 1
Special Features Features: Silent Operation, Single Button Time Selection, Models without HOLD feature meet Title 24 Requirements, Timer Contacts shall Break Current at the End of Timed Cycle, 1 Year Warranty
Standard cULus Listed, California TITLE 24 Compliant, HVACR
UPC 078275108509
GTIN 00078275108509
Item Type Electronic Countdown Auto Shut-Off In-Wall
Size 2.79 HEIGHT X 1.75 WIDTH X 1.44 DEPTH IN, 70.86 HEIGHT X 44.45 WIDTH X 36.57 DEPTH MM
Operating Temperature +32 to +122 DEG F, 0 to +50 DEG C
Timing Range 15/30/60 MIN - 2/4 HR
Voltage Rating 120
Wattage 1800 W
