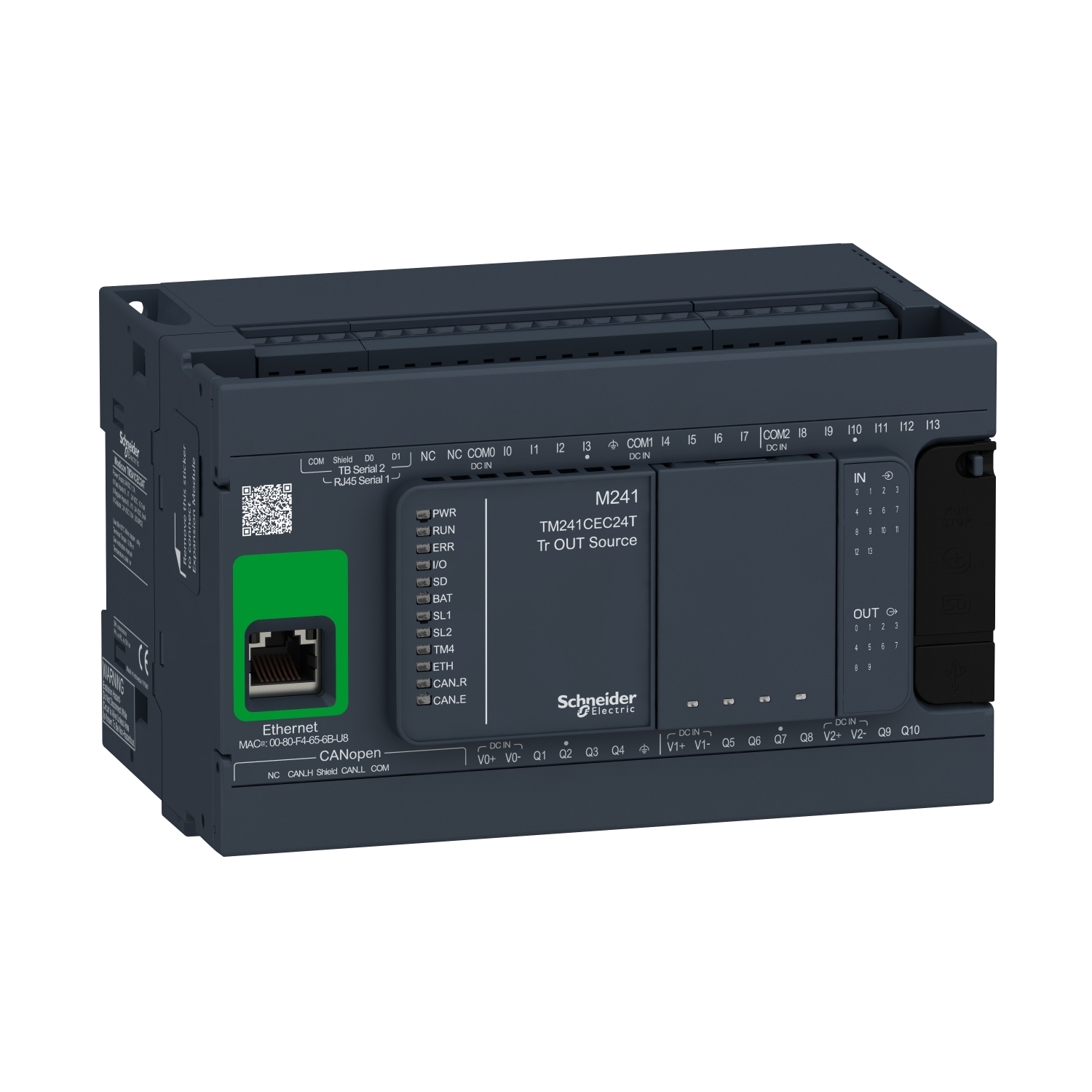

TM241CEC24T I/O Transistor PNP Ethernet Logic Controller, 24 V DC, 5 mA, 24 Inputs, 24 Outputs
- MFR #:
- TM241CEC24T
- UPC:
- 785901349129
- Item #:
- 311219
TM241CEC24T I/O Transistor PNP Ethernet Logic Controller, 24 V DC, 5 mA, 24 Inputs, 24 Outputs
- MFR #:
- TM241CEC24T
- UPC:
- 785901349129
- Item #:
- 311219
Product Details
This TM241 controller is part of the Modicon M241 Logic controller range. It has 24 logic I/O and it is supplied with 24V dc. It is supplied with removable screw terminal blocks for connecting the I/O, a removable terminal block for connecting the power supply, a button cell backup battery BR2032. This M241 logic controller has 5 embedded communication ports, two serial links (RS232/RS485 and RS485) and USB mini-B programming port. It also has an Ethernet port and a CANopen port. It enables the control of simple movements or of control loops. The capacity of M221 logic controllers can be enhanced with the Modicon TM3 expansion module offer.
Manuals and Documentation
Features
- Intuitive machine programming with EcoStruxure Machine Expert
- Flexible and scalable machine control allowing an easy upgrade to higher performance platforms to improve efficiency
- Connected everywhere via Ethernet, wireless access, web servers to simplify machine integration and maintenance
Specifications
Identifiers
| Manufacturer Part Number |
TM241CEC24T
|
|---|---|
| GTIN |
03606480611117
|
| UPC |
785901349129
|
|---|---|
| EAN |
3606480611117
|
General Information
| Manufacturer |
Schneider Electric
|
|---|---|
| Brand |
Schneider Electric
|
| Country Of Origin |
ID
|
| Warranty |
18 months
|
|---|---|
| Standards Approvals |
ABS Certified | CE/CSA Certified | cULus/UL Listed | DNV-GL | EAC Approved | EN/IEC 61131-2 | IACS E10 | IEC 60664-1 | IEC 61010-2-201 | LR | PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov | RCM | REACH Compliant | RoHS Compliant
|
| Application |
Modicon M241 Applications
|
Dimensions
| Dimensions |
95 mm L x 150 mm W x 90 mm H
|
|---|
Technical Information
| Amperage Rating |
5 mA
|
|---|---|
| Communication |
DHCP Client/FTP Server/Ethernet/IP Adapter/Modbus TCP Client/Modbus TCP Slave Device/Modbus TCP Server/WEC VAR Access
|
| Memory |
64 MB
|
| Mounting Type |
Plate/Panel
|
| Number Of Inputs |
24
|
| Number Of Outputs |
24
|
| Power Rating |
32.6 to 40.4
|
|---|---|
| Temperature Rating |
-10 to 55 deg C
|
| Transfer Rate |
1.2 to 115.2 kBps
|
| Type |
I/O Transistor PNP Ethernet
|
| Voltage Rating |
24 V DC
|
