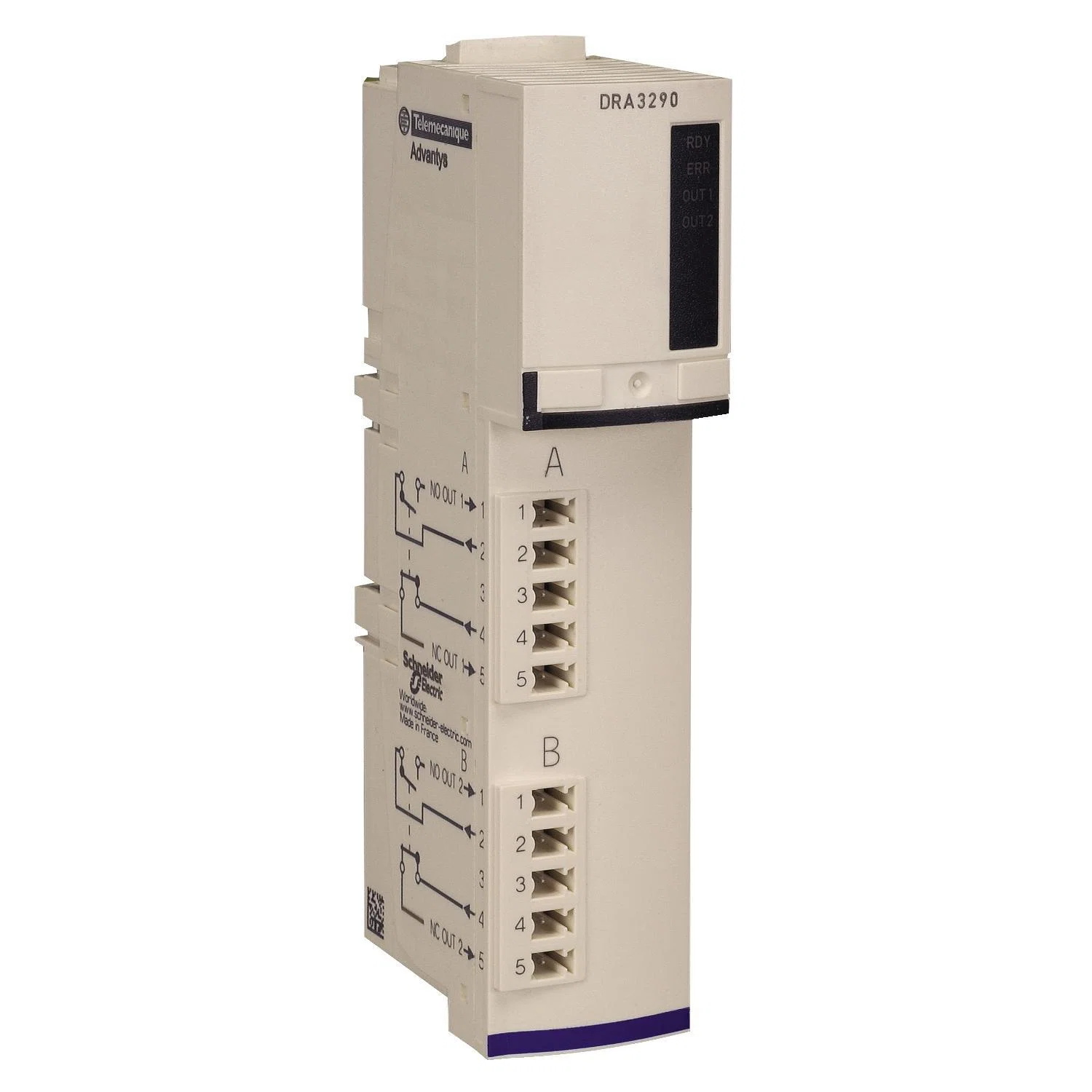

STBDRA3290K Modicon Relay Standard Digital Output Kit, 2 Inputs, 2 Outputs
- MFR:
- Schneider Electric
- MFR #:
- STBDRA3290K
- UPC:
- 785901609032
- Item #:
- 306573
STBDRA3290K Modicon Relay Standard Digital Output Kit, 2 Inputs, 2 Outputs
- MFR #:
- STBDRA3290K
- UPC:
- 785901609032
- Item #:
- 306573
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$178.33
each
standard digital output kit STB - 24 V DC - 6 O
Manuals and Documentation
Features
- Manual reset COM fault reset
| Manufacturer Part Number | STBDRA3290K |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| UPC | 785901609032 |
| EAN | 3595863949131 |
| Country Of Origin | ID |
| Amperage Rating | 55 mA |
| Dimensions | 70 mm L x 128.3 mm W x 28.1 mm H |
| Series | STB |
| Temperature Rating | 0 to 60 deg C |
| Type | Relay Standard |
| Voltage Rating | 24 V DC |
| Alternative Part Number | 9794005 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 Months |
| Standards Approvals | RoHS Compliant | REACH Compliant | WEEE Compliant | CE Certified | EN 61131-2 Class 1 | EN/IEC Certified | CSA Certified | FM Class 1 Division 2 | UL Listed | IEC 60664-1 | Green Premium | PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
| Application | For STBXBA3000 I/O base, STBPDT3100/3105 power distribution module, packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications |
| Includes | (1) STBDRA3290 Module, (1) STBXBA2000 Base, (5) STBXTS1100 Terminal Screw Connectors and (5) STBXTS2110 Terminal Spring Clamp Connectors |
| Number Of Inputs | 2 |
| Number Of Outputs | 2 |
| Step Response | 10 ms |
| Terminal Type | Screw/Spring Clamp |
