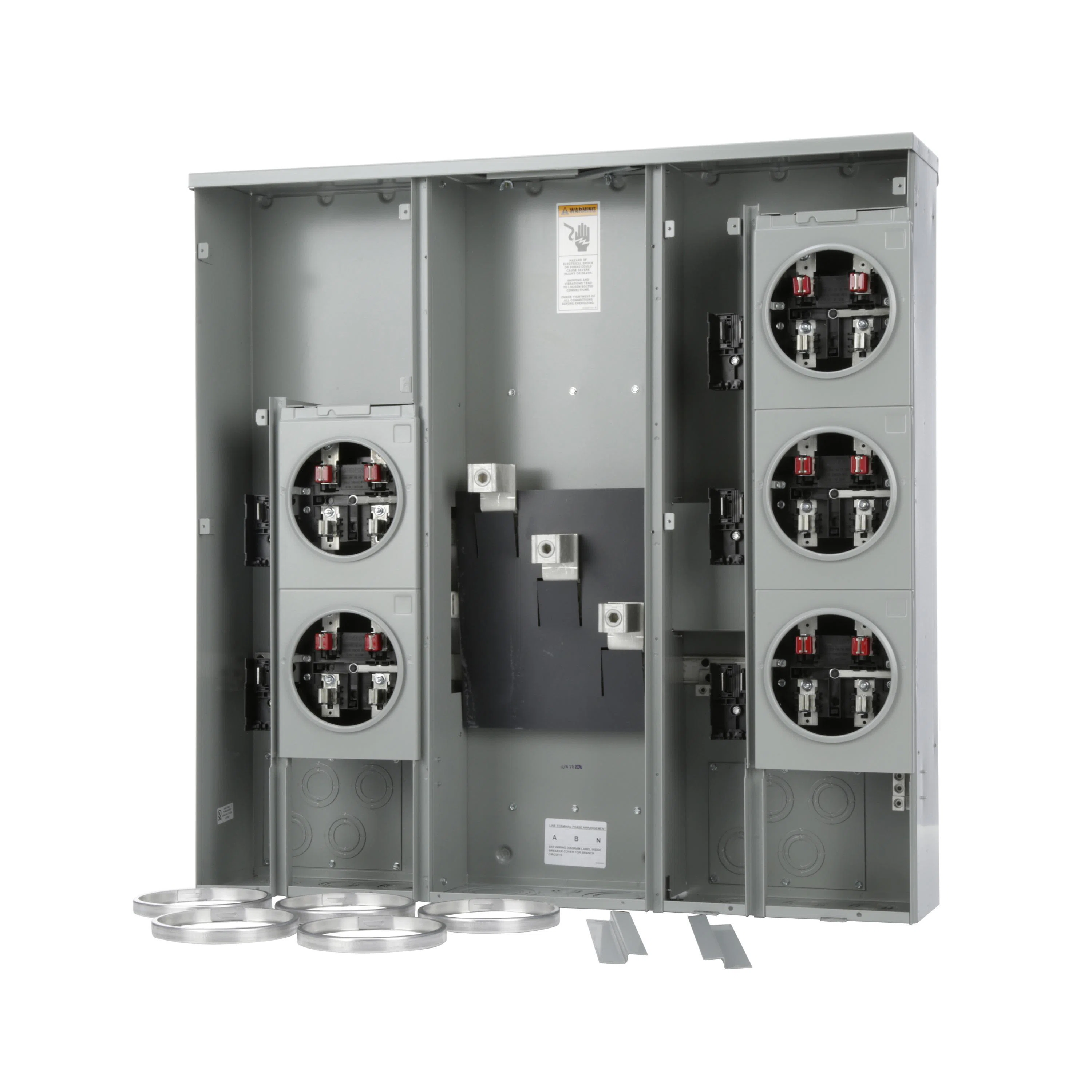

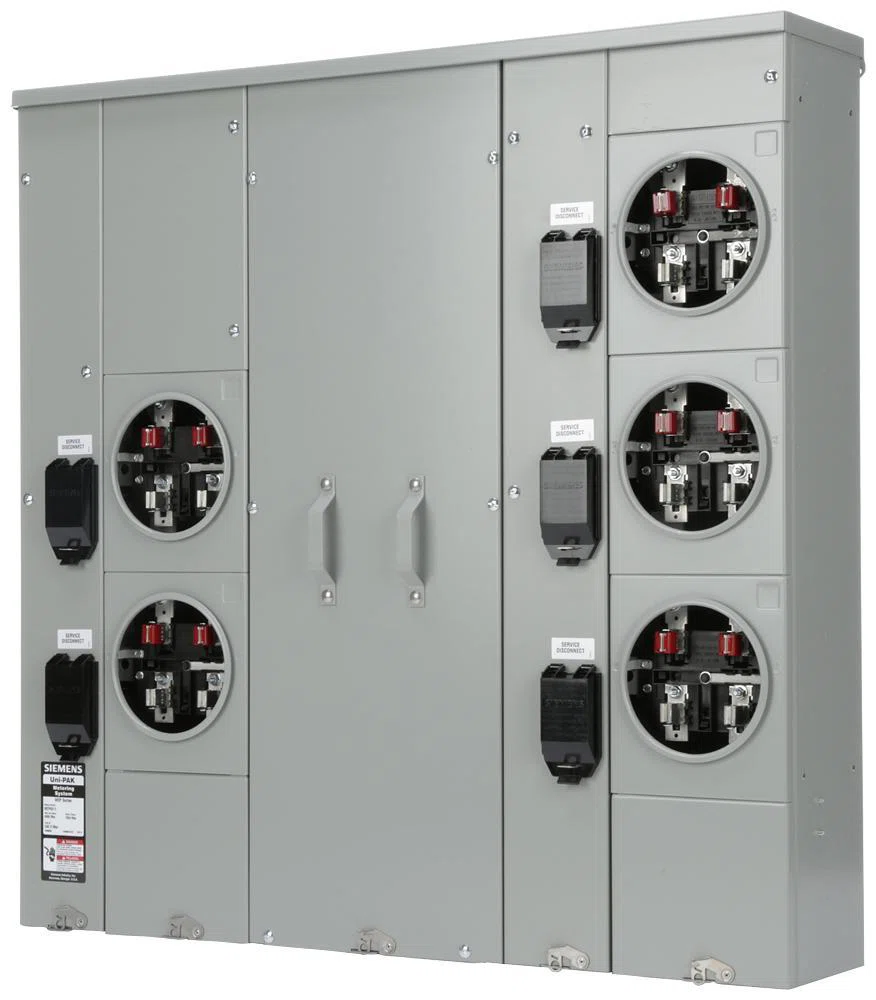

WEP4511 Uni-Pak 18-Cutout Meter Stack, 125 A Self-Contained Socket, Bottom/Top Feed, 120 V AC, 400 A Bus
- MFR #:
- WEP4511
- UPC:
- 040892875928
- Item #:
- 301821
WEP4511 Uni-Pak 18-Cutout Meter Stack, 125 A Self-Contained Socket, Bottom/Top Feed, 120 V AC, 400 A Bus
- MFR #:
- WEP4511
- UPC:
- 040892875928
- Item #:
- 301821
$12,487.54
each
Product Details
Siemens UNI-PAK Meter Stack, 18-Cutout, Self-Contained Socket, Bottom/Top Feed, 120 V AC, 400 A Bus, 125 A Socket, 5 Meter Sockets, 1 ph, 1/0 AWG to 750 kcmil Wire, Ring Socket Cover Style, 4 Socket Jaws, HQP/MP-T/MP-HT/MP-MT/QP/QPH Breaker, Surface Mounting, 38.75 in H x 38.94 in W x 7.56 in D Dimensions
Manuals and Documentation
Features
- Individual split covers
- Compact, pre-bussed, easy to handle, hang and wire
- Bottom and rear branch wiring exits (neutral and ground at bottom only)
- Barriered, sealable compartment for unmetered current carrying parts
- Aluminum/copper lay-in lugs, except 2-socket units
- ANSI 61 light gray electro-deposited paint on zinc coated G90 steel
- Semi-flush with applicable field installed kit
- 1/0 AWG to 750 kcmil copper/aluminum, (2) 1/0 AWG to 250 kcmil aluminum and (2) 1/0 to 3/0 AWG copper line lug wire range
- Without bypass
Specifications
Identifiers
| Manufacturer Part Number |
WEP4511
|
|---|---|
| GTIN |
00040892875928
|
| UPC |
040892875928
|
|---|
General Information
| Manufacturer |
Siemens
|
|---|---|
| Brand |
Siemens
|
| Country Of Origin |
US
|
| Standards Approvals |
UL50/UL67/UL414
|
|---|---|
| Application |
Service Entrance Equipment Applications
|
Dimensions
| Dimensions |
38.75 in H x 38.94 in W x 7.56 in D
|
|---|
Technical Information
| Breaker Type |
HQP/MP-T/MP-HT/MP-MT/QP/QPH
|
|---|---|
| Bus Amps |
400 A
|
| Feed Type |
Bottom/Top
|
| Mounting Type |
Surface
|
| Number Of Meter Sockets |
5
|
| Phase |
1
|
| Socket Amps |
125 A
|
| Socket Cover Style |
Ring
|
|---|---|
| Socket Jaws |
4
|
| Socket Type |
Self-Contained
|
| Type |
18-Cutout
|
| Voltage Rating |
120 V AC
|
| Wire Size |
1/0 AWG to 750 kcmil
|
