Panduit® Panduit

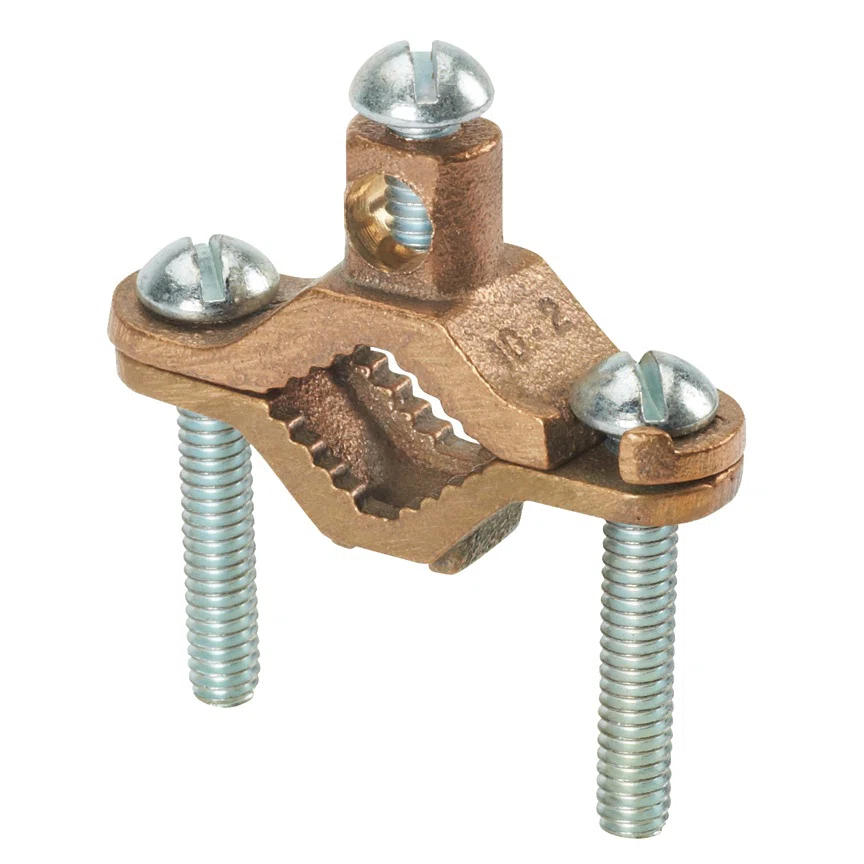

GPC2-1-Q StructuredGround Standard Duty Grounding Clamp, 10 AWG Solid to 2 AWG Stranded Conductor, Bronze/Steel

MFR #:
GPC2-1-Q
UPC:
074983670406
Item #:
281178
$9.8695 each
Product Details

The ability to provide a grounding system that is both reliable and economical is dependent upon finding the right connectors for the application. Panduit® offers grounding connectors for a wide variety of conductor combinations and mounting configurations in high strength electrolytic copper, aluminum and bronze alloy materials. Globally distributed StructuredGround™ mechanical connectors provide fast and easy terminating of ground conductors to water pipe, ground rods, conduit, iron pipe and structural steel for highest reliability and lowest installed cost. With the addition of new ground clamps to the existing line-of StructuredGround™ mechanical connectors, Panduit® delivers the breadth of line to supply the right connector for each unique job, providing maximum reliability and safety for all critical electrical connections throughout your physical infrastructure.

Manuals and Documentation

Features

  • Bonds water pipe to copper conductors
  • Made from high strength, electrolytic cast bronze
  • Wire range taking capability minimizes inventory requirements and saves cost
  • Made from high strength, electrolytic cast bronze
  • Zinc plated steel hardware
  • Wire range taking capability minimizes inventory requirements, saves cost
  • cULus 467 listed for grounding and bonding
  • 10 AWG solid to 2 AWG stranded conductor

Specifications

Identifiers

Identifiers
Manufacturer Part Number
GPC2-1-Q
GTIN
00074983670406
Identifiers
UPC
074983670406
EAN
0074983670406

General Information

General Information
Manufacturer
Panduit
Brand
Panduit®
Country Of Origin
US
General Information
Standards Approvals
ARRA Compliant | Buy American Act Compliant | cULus 467 | cULus listed to UL467
Application
For water pipe to copper conductors

Technical Information

Technical Information
Conductor Size
10 AWG Solid to 2 AWG Stranded
Conductor Type
Copper/Solid/Stranded
Connection Type
Screw
Finish
Electrolytic/Zinc Plated
Technical Information
Material
Bronze/Steel
Pipe Size
1/2 to 1 in
Series
GPC2
Type
Standard Duty
