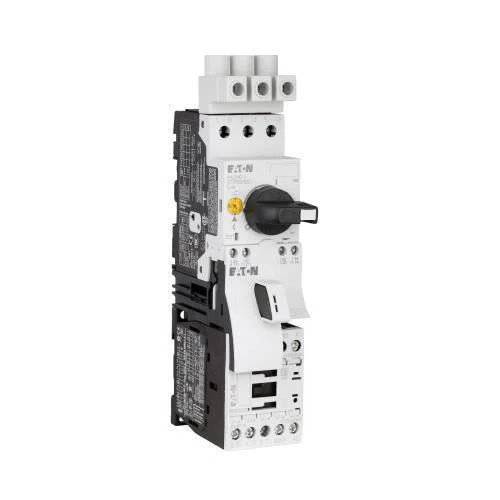

Product Details
Eaton’s XT line brings IEC power control to a whole new level. The XT IEC series includes non-reversing and reversing contactors and starters as well as overload relays and accessories. Enclosed control options include metallic and non-metallic enclosures with circuit breakers, and North American or European fuses. Save space and engineering design time with XT IEC series overload relays.
Manuals and Documentation
Features
- ON/OFF rotary handle with lockout provision
- Visible trip indication
- Test trip function
- Built-in heater and magnetic trip elements to protect the motor
- Phase loss sensitivity
- Short circuit trip at 14 times the maximum setting of the FLA adjustment dial
- 45 mm frame
- Control inputs located at front of starter for easy access and wiring
Specifications
Identifiers
| Manufacturer Part Number |
XTSC025BCA
|
|---|---|
| GTIN |
00782116610846
|
| UPC |
782116610846
|
|---|
General Information
| Manufacturer |
Eaton
|
|---|---|
| Brand |
EATON
|
| Country Of Origin |
DE
|
| Standards Approvals |
CSA file No. 229767, Class 3211-05,UL Listed file E245398,UL 508,IEC 60947,DIN VDE 0600,CE Marked
|
|---|---|
| Application |
Commercial / Institutional Buildings / Structures - Safety and Security Systems
|
Dimensions
| Dimensions |
1.78 in W x 4.89 in D x 9.28 in H
|
|---|
Technical Information
| Amperage Rating |
25 A
|
|---|---|
| Auxiliary Contact Rating |
1NO 1NC
|
| Coil Voltage |
110/120 V AC
|
| Frequency Rating |
50/60 Hz
|
| Full Load Current |
25 to 30 A
|
| Motor Power |
15 hp
|
| Operating Temperature |
140 deg F
|
|---|---|
| Phase |
3
|
| Reset Type |
Manual
|
| Series |
XTSC
|
| Type |
Full Voltage Non-Reversing
|
