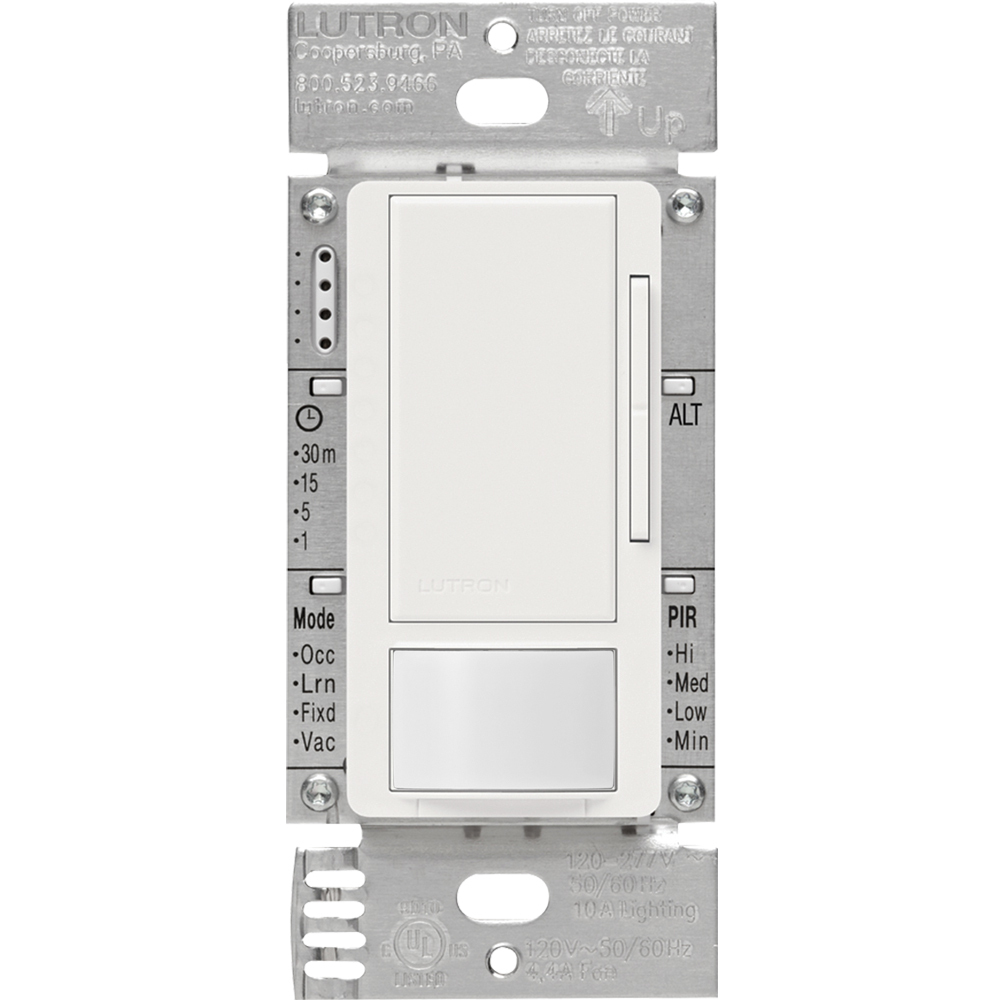

MS-Z101-WH Maestro 0-10V Motion Sensor/Dimmer Switch, Neutral Optional, 8 Amp, 120-277V, 1 Pole/Multi-Location, White
MFR: Lutron Electronics
MFR #: MS-Z101-WH
UPC: 784276099844
Item #: 246524
MS-Z101-WH Maestro 0-10V Motion Sensor/Dimmer Switch, Neutral Optional, 8 Amp, 120-277V, 1 Pole/Multi-Location, White
MFR #: MS-Z101-WH
UPC: 784276099844
Item #: 246524
Availability
| Location | Available Qty |
|---|---|
| Available | 19 |
Manuals and Documentation
- Catalog Number
- MS-Z101-WH
- Manufacturer
- Lutron Electronics
- Brand
- Lutron
- Application
- Lighting Control
- Enclosure
- Plastic
- Mounting
- Wall
- Sensing Range
- 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
- Sensor
- Yes
- Special Features
- Passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied. Combines a Maestro 0-10 V dimmer with an occupancy sensor. Controls 1-10 VDC electronic fluorescent ballast or LED driver load types. Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Can be set to auto-on/auto-off or manual-on/auto-off. Adjustable timeout (1, 3, 5, 15, or 30 minutes). Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level. Adjustable sensitivity level: High, med, low, min. Off warning fades lights to off over a period of 10 seconds. Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.). Adaptive switching algorithm for extended relay life. Smart ambient light detection (ALD). Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches. High-end trim and low-end trim to adjust maximum and minimum light levels. Selectable dimming curve-linear or square law. Miswire and incompatible load alert
- Standard
- UL, cUL, Title 20/24 certified
- Supply Voltage
- 120 to 277
- UPC
- 784276099844
- GTIN
- 00784276099844
- Item Type
- Occupancy/Vacancy sensor dimmer, multi-location/3-way/single-pole, 0-10 V
- Environmental Conditions
- 0 to 90% humidity, non-condensing. Indoor use only.
- Operating Temperature
- 32 to 104 F
