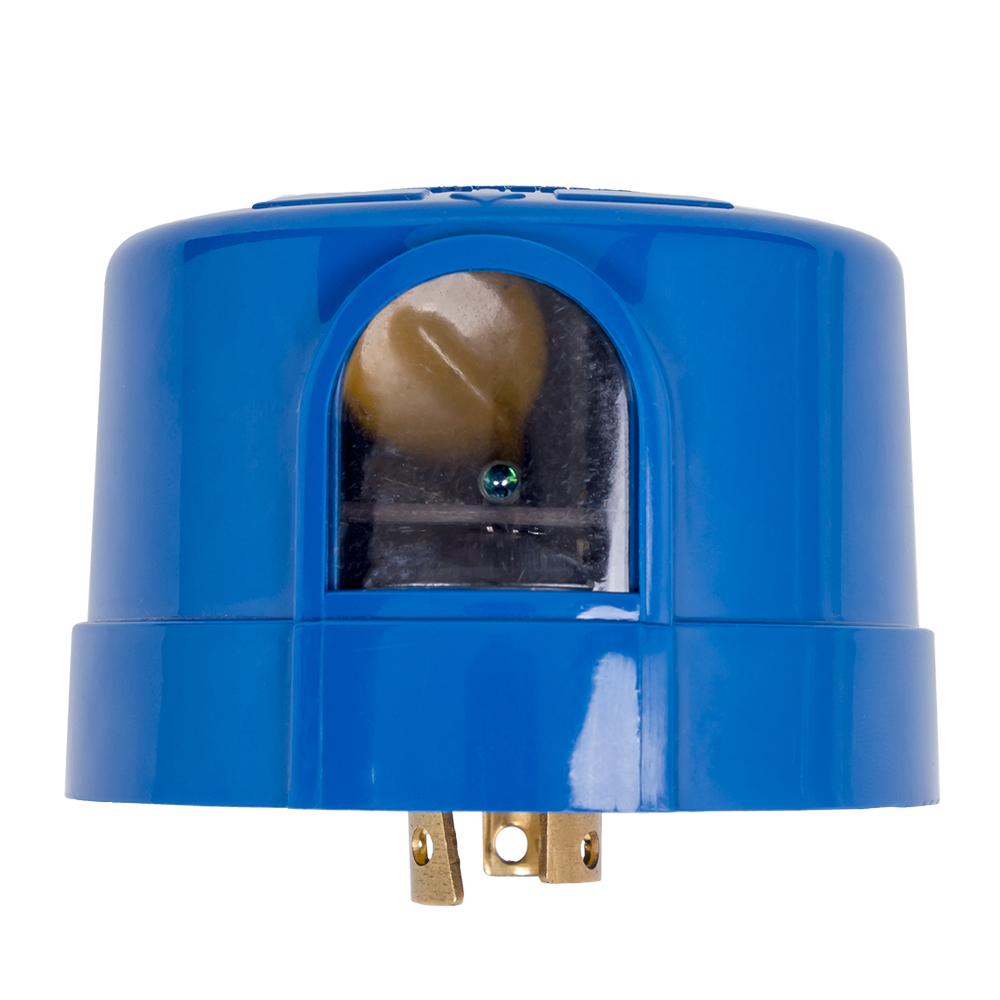

NightFox Standard Grade Locking Type Electronic Photocontrol, 120-277 V
MFR: Intermatic
MFR #: ELC4536
UPC: 078275142961
Item #: 225465
NightFox Standard Grade Locking Type Electronic Photocontrol, 120-277 V
MFR #: ELC4536
UPC: 078275142961
Item #: 225465
Availability
| Location | Available Qty |
|---|---|
| Available | 26 |
$15.51
each
LED-compatible photocontrol features a 10-year life expectancy. Ideal for single fixture control of smaller LED fixtures that require a cost-effective solution.
Manuals and Documentation
- Catalog Number
- ELC4536
- Manufacturer
- Intermatic
- Brand
- Intermatic
- Country of Origin
- Mexico
- Made in USA
- No
- Application
- Dusk to Dawn Lighting Control
- Connection
- Lock Type
- Enclosure
- NEMA 410
- Frequency Rating
- 50/60 HZ
- Mounting
- Twistlock Mount
- Operating Cycles
- 3650
- Sensitivity
- 1.5 FC ON, 2.25 FC OFF
- Sensor
- Solid State Photo Sensor (Silicon IR Filtered)
- Special Features
- Features: Electronic Photocell, LED Fixtures Totaling 550 WTT @ 277 VAC, Non-Drifting Silicon Light Sensor IR Filtered, Fail Mode: ON
- Standard
- ANSI C136.10, UL Recognized, cULus Listed, CAS Approval, Title CA 20 Listed, RoHS Compliant
- Supply Voltage
- 105 - 305 VAC
- UPC
- 078275142961
- GTIN
- 00078275142961
- Item Type
- TwistLock Photocell
- Size
- 3.18 DIAMETER X 2.204 HEIGHT IN, 80.77 DIAMETER X 55.98 HEIGHT MM
- Operating Temperature
- -40 to +158 DEG F -40 to +70 DEG C
- Timing Range
- 2 - 5 S
