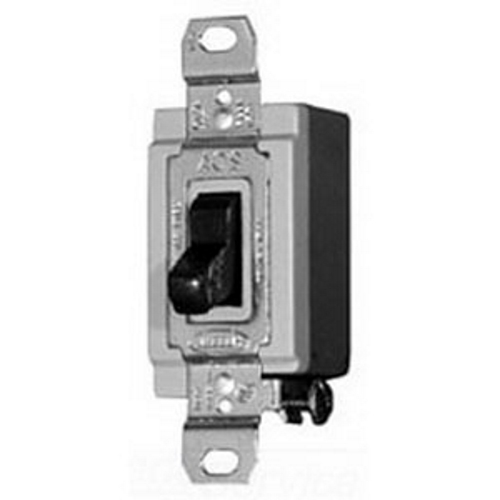

d; EFS-FR1-Q EFS Series 1-Gang Tumbler Switch; 1-Pole, 20 Amp, 120/277 Volt AC, Neutral
MFR: Appleton Electric
MFR #: EFS-FR1-Q
UPC: 781381287302
Item #: 214250
d; EFS-FR1-Q EFS Series 1-Gang Tumbler Switch; 1-Pole, 20 Amp, 120/277 Volt AC, Neutral
MFR #: EFS-FR1-Q
UPC: 781381287302
Item #: 214250
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$112.18
each
UNILETS EFS Series 1-Gang Tumbler Switch, Voltage Rating: 120 - 277 VAC, Amperage Rating: 20 AMP, Number Of Poles: 1, Enclosure: NEMA 7CD, 9EFG, HP Rating: 1 HP At 120 VAC, 2 HP At 240 VAC, Material: Malleable Iron Body, Nylon 6/6 Handle, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Height: 4.63 IN, Width: 3 IN, Depth: 1.6 IN, Standard: UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G And Class III, For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present
Manuals and Documentation
- Catalog Number
- EFS-FR1-Q
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Sub Brand
- UNILETS
- Country of Origin
- China
- Made in USA
- No
- Amperage Rating
- 20
- Application
- For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present
- Enclosure
- NEMA 7CD, 9EFG
- Special Features
- Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure; Stainless steel hex head cap screws for attaching cover to mounting enclosure; Choice of front-operating or side rocker arm handle each may be locked in ON or OFF position; Each handle has close-tolerance threaded stainless steel shaft to meet explosionproof requirements; Enclosures furnished with internal ground screw; For installation in: chemical plants, petrochemical plants, Refineries, other process industries; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads
- Standard
- UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G And Class III
- UPC
- 781381287302
- GTIN
- 00781381287302
- Item Type
- EFS Series 1-Gang Tumbler Switch
- Voltage Rating
- 120 - 277
