Square D™ Schneider Electric

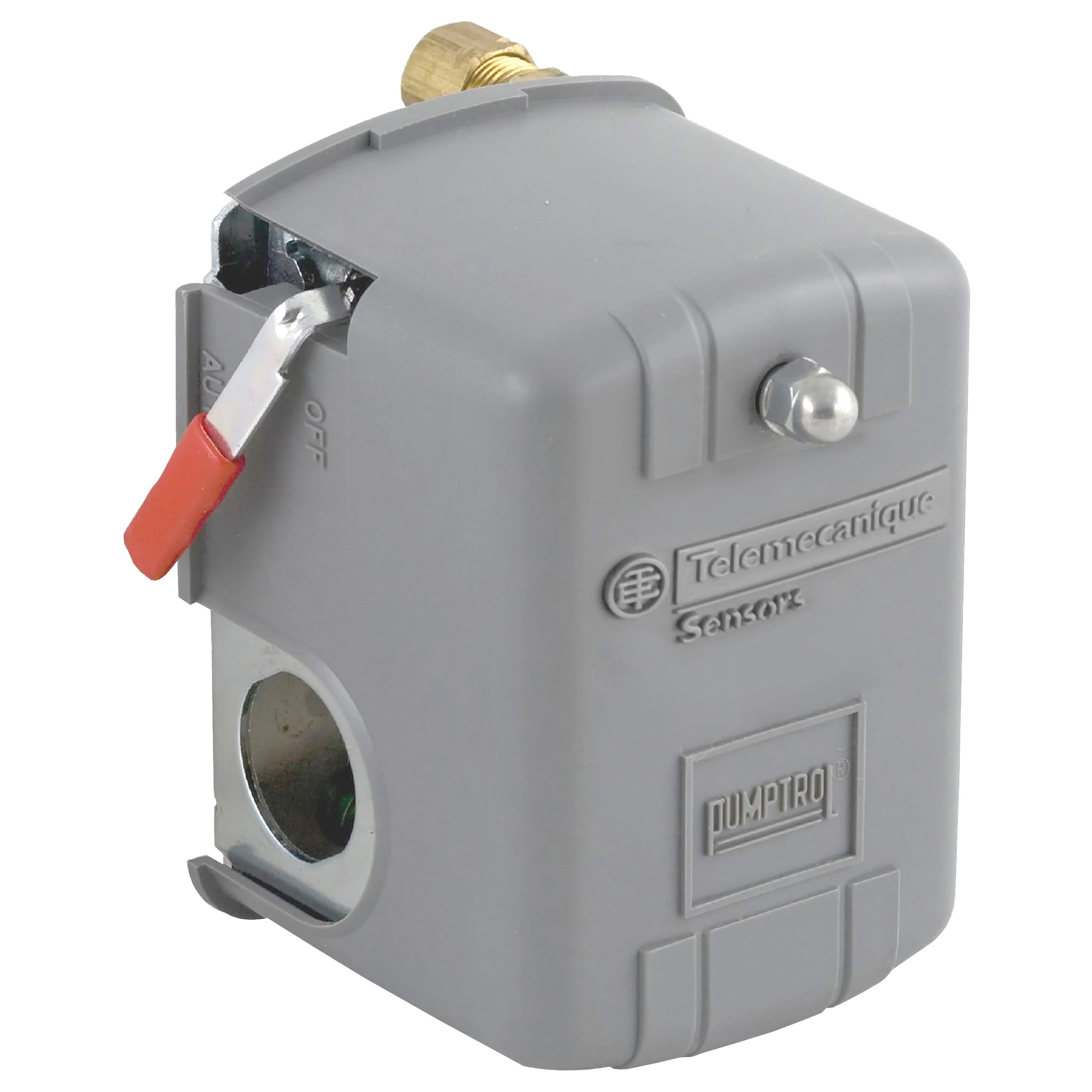

Pumptrol, air compressor switch 9013FH, fixed differential, Off at 175 PSI, low hp

MFR #:
9013FHG42J59M1
UPC:
785901658375
Item #:
204724
$44.11 each
Product Details

Pressure switches, float switches, vacuum switches and power pressure switches for control or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centers, complex and special machines, HVAC, automotive, food and beverage, healthcare facilities, pharmaceutical and more. Classes 9013.

Manuals and Documentation

Features

  • 9013F power pressure switches rated for the direct control of motors in pump and compressor applications
  • Rugged, robust construction provides a long life and provides years of uninterrupted, worry-free service
  • Drift proof cut-in and cut-out settings
  • Has visible vertical contacts, easy to inspect without removal
  • An extra strong frame that resists distortion when mounting the switch to a compressor
  • Designed for the direct control of motors in pump and compressor applications
  • 1/4 in NPSF Internal pressure
  • Off at 175 psi pressure
  • Addition of a second ground screw
  • Maintained manual cut-out lever (auto-off)

Specifications

Identifiers

Identifiers
Manufacturer Part Number
9013FHG42J59M1
GTIN
00785901658375
Identifiers
UPC
785901658375
EAN
0785901658375

General Information

General Information
Manufacturer
Schneider Electric
Brand
Square Dâ„¢
Country Of Origin
MX
General Information
Warranty
18 Months
Standards Approvals
CE Certified | CSA File LR25490 | IEC 60529 | REACh Compliant | UL 50/508/File E12158 | PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Application
Industrial, Pressure control or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centers, complex and special machines, HVAC, automotive, food and beverage, healthcare facilities, pharmaceutical and Controlling small electrically driven air compressors

Dimensions

Dimensions
Dimensions
3.1 in W x 3.76 in D x 3.71 in H

Technical Information

Technical Information
Connection Material
Zinc Plated Steel
Connection Type
Screw Clamp
Contact Configuration
2NC DPST-DB
Diaphragm Material
Nitrile
Enclosure Type
IP20/NEMA 1
Technical Information
Housing Material
Polypropylene
Operating Cycles
10 cpm
Series
9013
Temperature Rating
-33 to 257 deg F
Type
Type F
