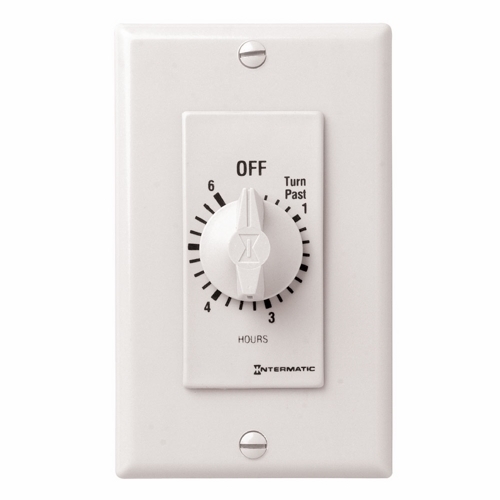

FD46HW FD Series Auto Off Decorator Mechanical Spring Wound Timer, 6 hr Setting, 125/257 V AC, 1 hp, 2 hp, 2NO 2 Form A DPST Contact, 2 Poles
- MFR:
- Intermatic
- MFR #:
- FD46HW
- UPC:
- 078275186088
- Item #:
- 196466
FD46HW FD Series Auto Off Decorator Mechanical Spring Wound Timer, 6 hr Setting, 125/257 V AC, 1 hp, 2 hp, 2NO 2 Form A DPST Contact, 2 Poles
- MFR #:
- FD46HW
- UPC:
- 078275186088
- Item #:
- 196466
Availability
| Location | Available Qty |
|---|---|
| Available | 3 ea |
$78.63
each
The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
Manuals and Documentation
| Catalog Number | FD46HW |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Tunisia |
| Made in USA | No |
| Action | 1 x DPST |
| Amperage Rating | 15 |
| Application | Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR |
| Connection | Teeter Type |
| Contact Configuration | 2 NO |
| Contact Rating | 7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive) |
| Mounting | Wall |
| Number of Poles | 2 |
| Special Features | Features: Energy-Efficient Mechanical Timers do not require Electricity to Operate, Automatically Limit the ON Times, Press-On Knob Design Ensures Quick and Easy Installation, CFL Compatible, Provide Direct Replacement of a Standard Wall Switch in Single or Multi-Gang 2-1/2 IN Deep Junction Boxes, Spiral Time Scale to Provide Easy Selection of the Time Setting, Standard Industry Accepted Molded Plate and Knob, Minimum of 0.085 IN Thread Engagement, Secure Teeter-Type Terminal, 1 Year Warranty |
| Standard | cCSAus Certified, UL Listed, UL Recognized, HVACR |
| UPC | 078275186088 |
| GTIN | 00078275186088 |
| Item Type | Decorator Spring Wound Auto-Off |
| Size | 2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM |
| Operating Temperature | -40 to +104 DEG F, -40 to +40 DEG C |
| Timing Range | 6 HR |
| Voltage Rating | 125 - 277 |
