Hubbell Wiring Device-Kellems
Hubbell

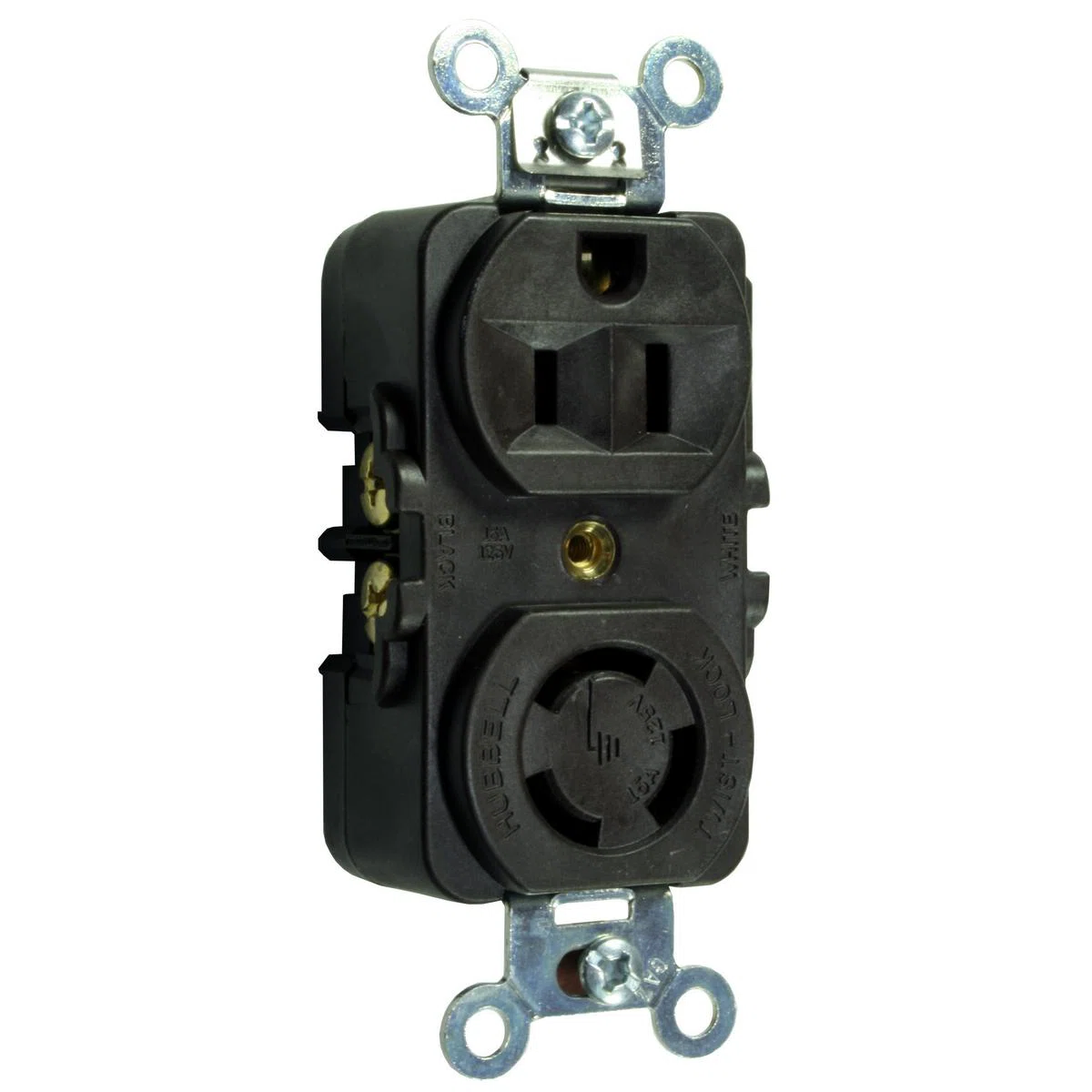

HBL7371 1-Phase 2-Feed 1-Return Combination Duplex Grounding Standard Locking Receptacle, 125/250 V, 15 A, 2 Poles, 3 Wires, Brown
- MFR #:
- HBL7371
- UPC:
- 783585237152
- Item #:
- 195107
$115.13
each
Product Details
Hubbell Wiring Device-Kellems Twist-LockĀ®, HBL7371, Locking Receptacle, 1-Phase 2-Feed 1-Return Combination Duplex Grounding Standard, 125/250 V, 15 A, 1/2 hp, 1875 W Wattage, 1 ph, 2 Pole, 3 Wires, 14 to 10 AWG Wire, 5-15R NEMA Rating, 3.28 x 1.5 x 0.88 in Size, Screw Terminal Connection, Threaded Mounting, Industrial Grade, Thermoplastic/Composite, Brown, Environmental Conditions: -40 to 75 deg C
Manuals and Documentation
Features
- Straight blade devices
- Indoor dry unless protected by additional means
- Screw mount
- 14 to 12 AWG wire
Specifications
Identifiers
| Manufacturer Part Number |
HBL7371
|
|---|---|
| GTIN |
00783585237152
|
| UPC |
783585237152
|
|---|---|
| EAN |
0783585237152
|
General Information
| Manufacturer |
Hubbell
|
|---|---|
| Brand |
Hubbell Wiring Device-Kellems
|
| Country Of Origin |
US
|
| Warranty |
Limited
|
|---|---|
| Standards Approvals |
UL 498 File No. E2186 | CSA C22.2 No. 42 File 285 | RoHS Compliant | UL94 V-2 Flammability Rating
|
| Application |
Dry Locations and Indoor Applications
|
Dimensions
| Size |
3.28 x 1.5 x 0.88 in
|
|---|
Technical Information
| Amperage Rating |
15 A
|
|---|---|
| Color |
Brown
|
| Connection |
Screw Terminal
|
| Environmental Conditions |
-40 to 75 deg C
|
| Grade |
Industrial
|
| Horsepower |
1/2 hp
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Threaded
|
| Nema Rating |
5-15R
|
|---|---|
| Number Of Poles |
2
|
| Number Of Wires |
3
|
| Phase |
1
|
| Type |
1-Phase 2-Feed 1-Return Combination Duplex Grounding Standard
|
| Voltage Rating |
125/250 V
|
| Wattage |
1875 W
|
| Wire Size |
14 to 10 AWG
|
