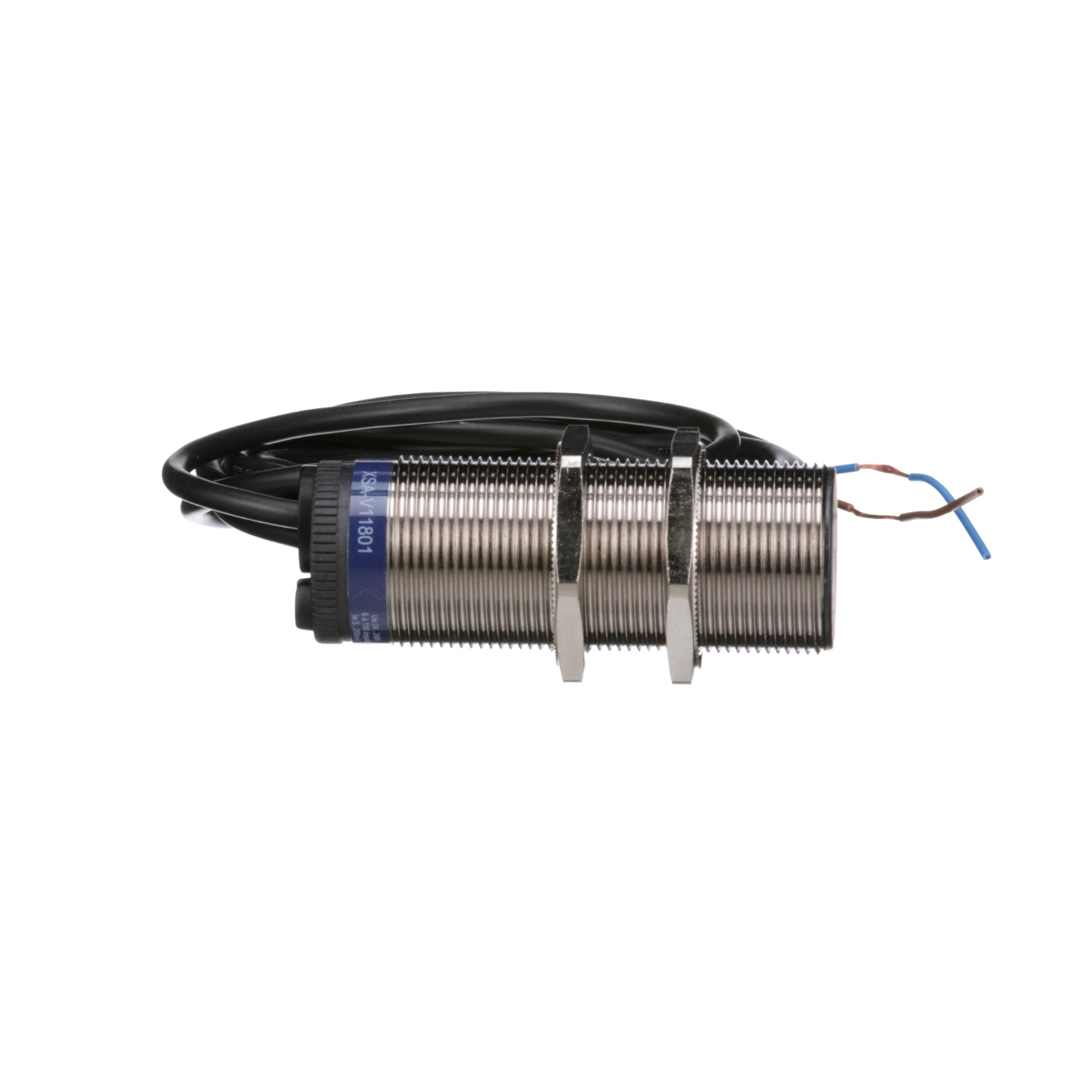

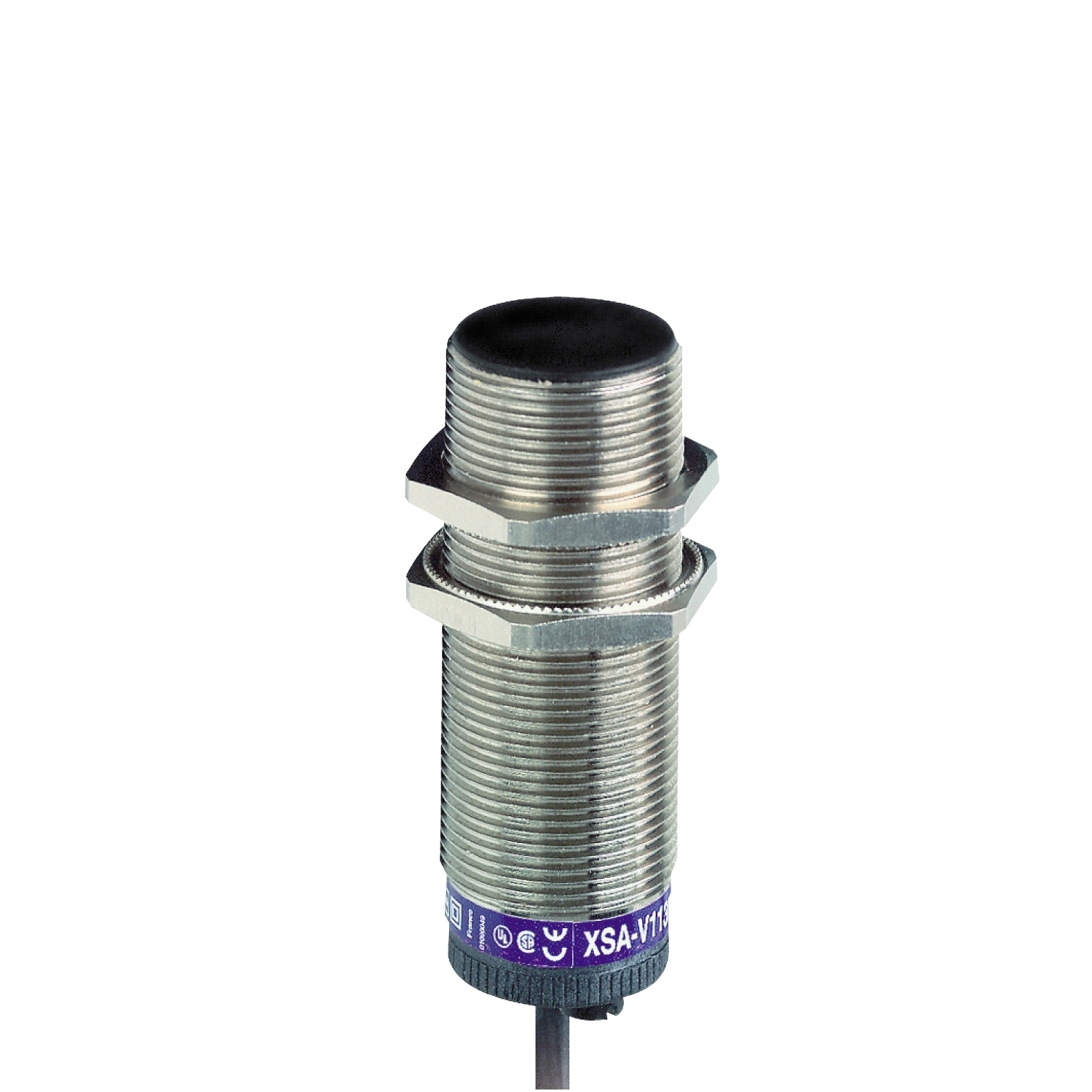

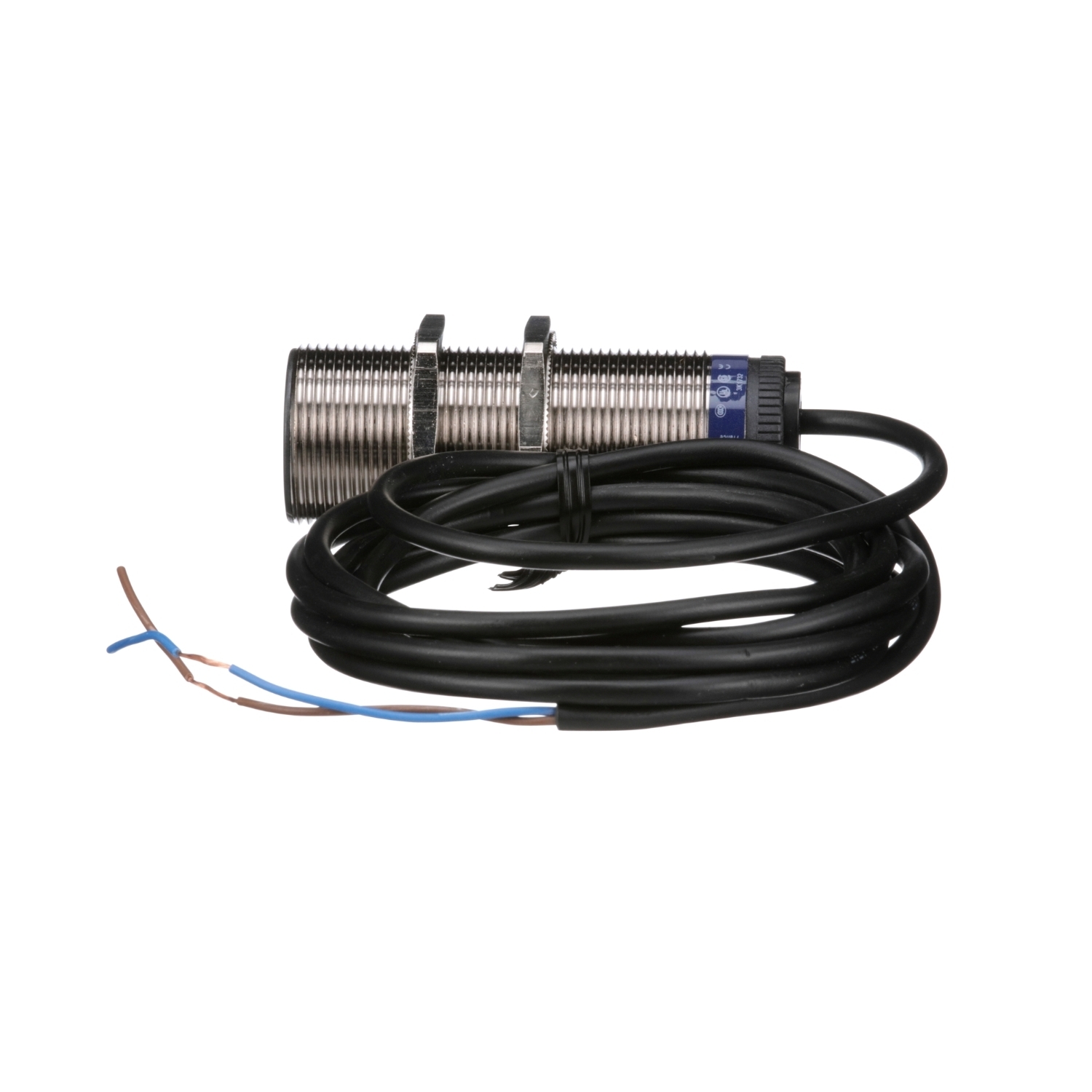

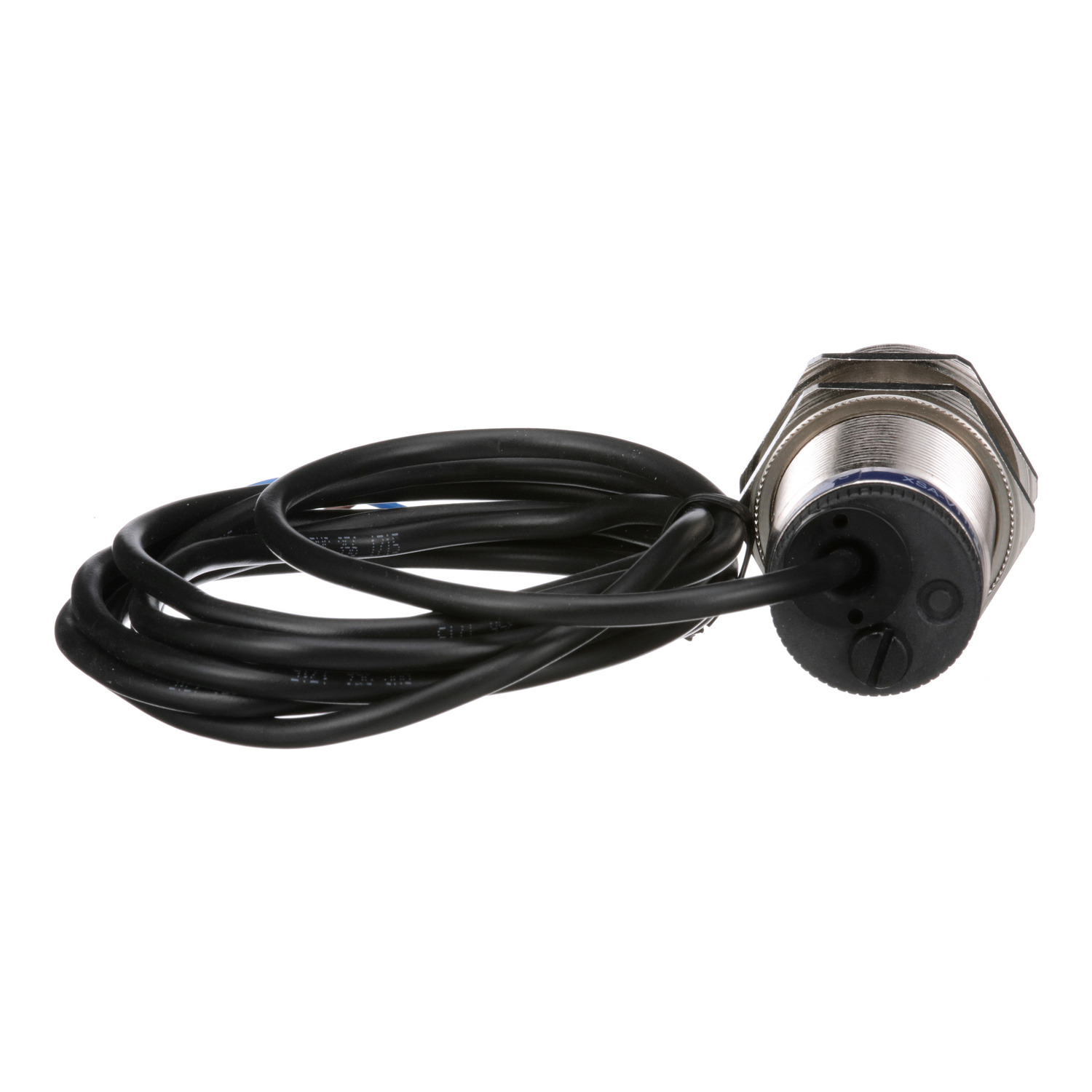

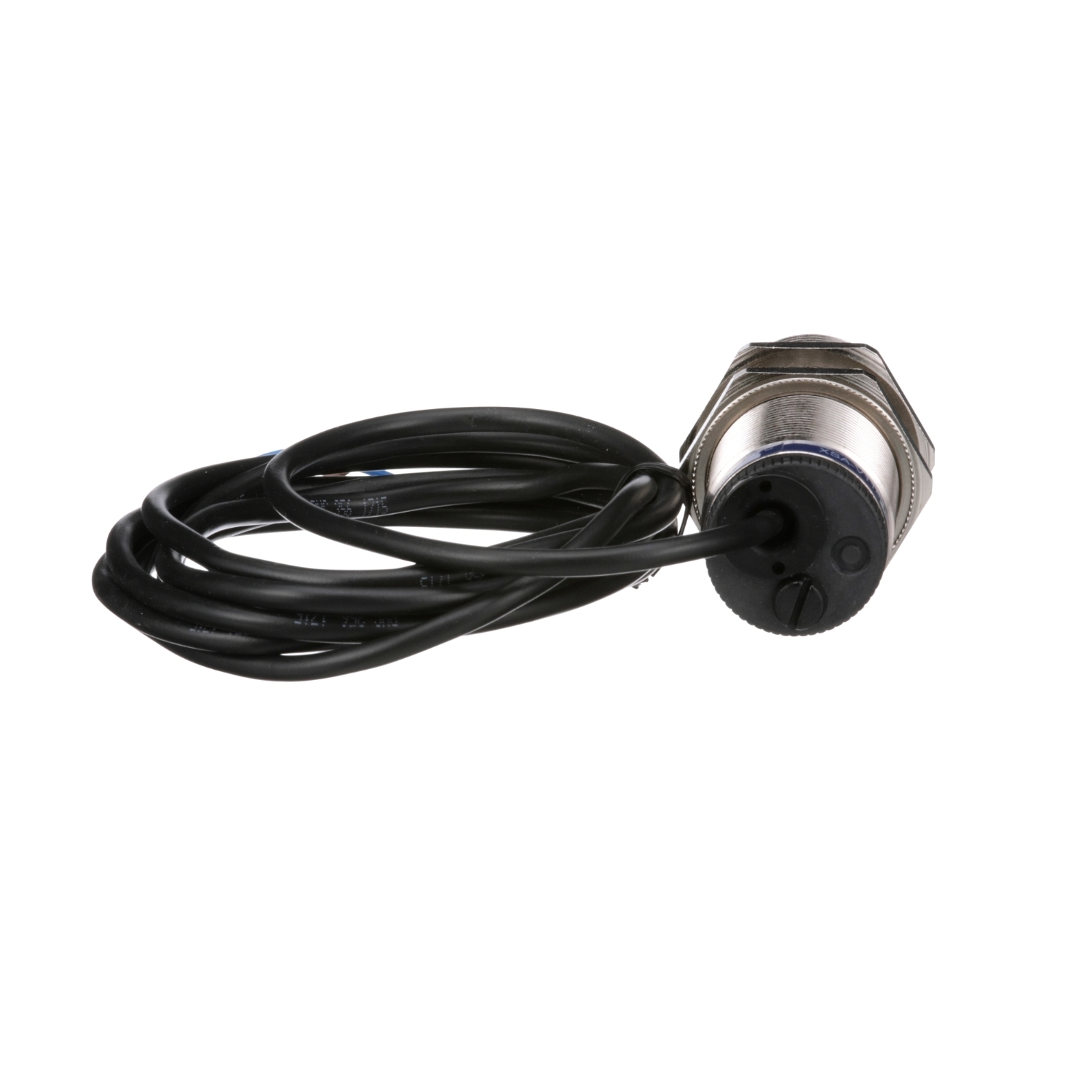

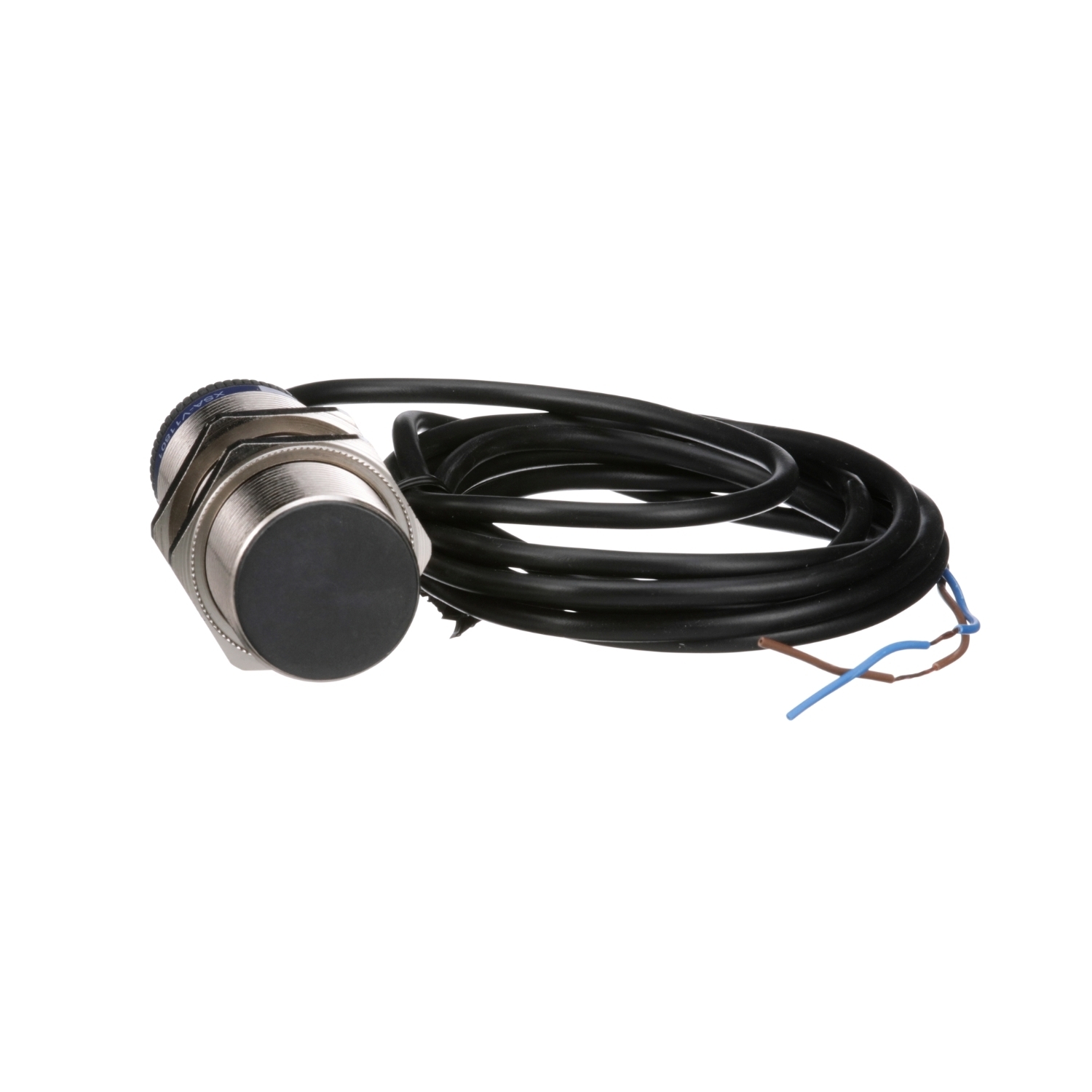

inductive sensor, XSA, cylindrical, M30, sensing 10 mm, 2 meter cable
inductive sensor, XSA, cylindrical, M30, sensing 10 mm, 2 meter cable
| Location | Available Qty |
|---|---|
| Available | 12 |
XS inductive proximity sensors are for noncontact sensing of metal objects up to 60 mm. These inductive proximity sensors are available in standard M8, M12, M18, M30 cylindrical housings with either short or long bodies. Standard cubic, rectangular and flat forms are also available. XS inductive proximity sensors are available in a wide variety of VAC and VDC power supply voltages. Proximity sensors can be used in the assembly machines, robotics, machine tools, machining, packaging, materials handling, conveying, and food and beverage industries. These proximity sensors comply with international standards including CE, UL, CSA, CCC, CTick, and TV. They also meet the top international quality IP69K requirements. That are required to establish an integrated rotation monitoring device. The unit provides an economical solution for detecting slip, belt breakage, drive shaft shear and overloading, etc. In the following applications, conveyor belts, bucket elevators, Archemedian screws, grinders, crushers, pumps, centrifugal driers, mixers, etc.
Manuals and Documentation
- Catalog Number
- XSAV11801
- Manufacturer
- Telemecanique Sensors
- Brand
- Telemecanique
- Sub Brand
- XSA
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- Mexico
- Made in USA
- No
- Application
- Rotation monitoring
- Connector
- Cable
- Control Output
- 1 NC
- Enclosure
- Nickel Plated Brass
- Indicator
- Output state 1 LED red)
- Material
- Metal
- Mounting
- Flush
- Sensing Range
- > 0.31...0.59 in (> 8...15 mm)
- Sensor
- 30 MM,81 MM,INDUCTIVE PROXIMITY SENSOR
- Special Features
- METAL
- Standard
- IP67 conforming to IEC 60529;CE
- Supply Voltage
- 24...210 V DC;24...240 V AC 50/60 Hz
- UPC
- 785901528036
- GTIN
- 03389110528039
- Item Type
- Sensor;Inductive proximity sensor;Cylindrical M30
- Operating Temperature
- -25-70 A Degrees C
