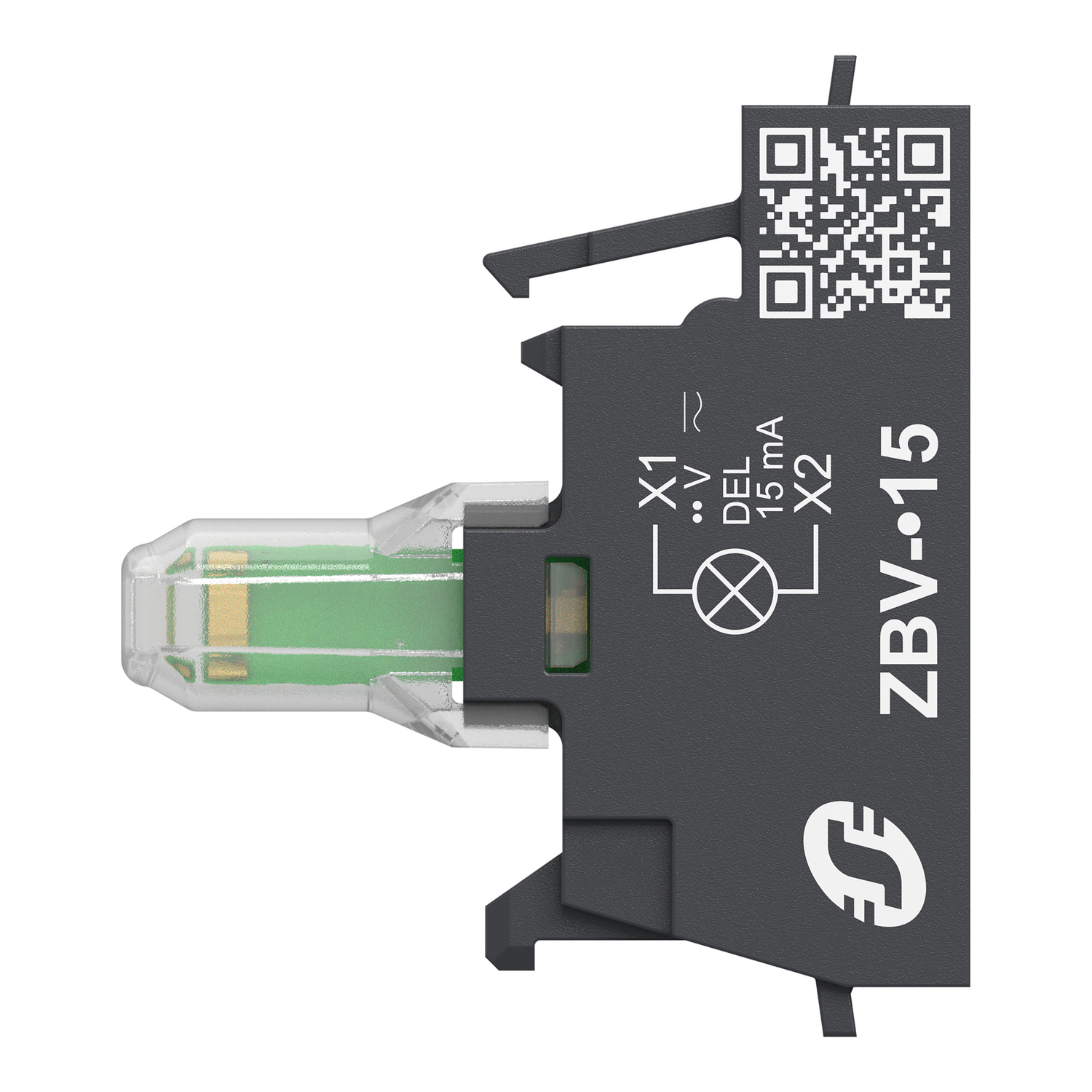

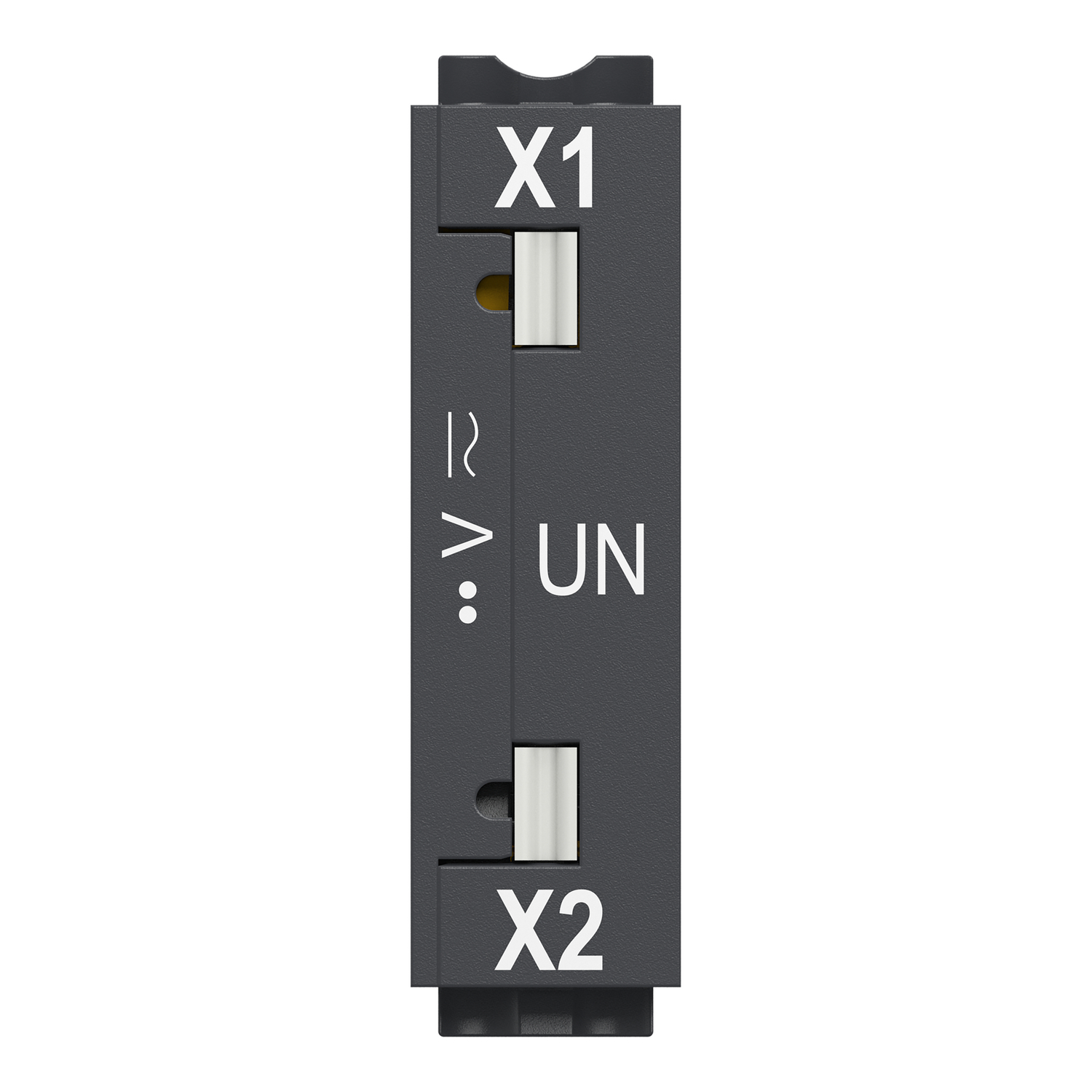

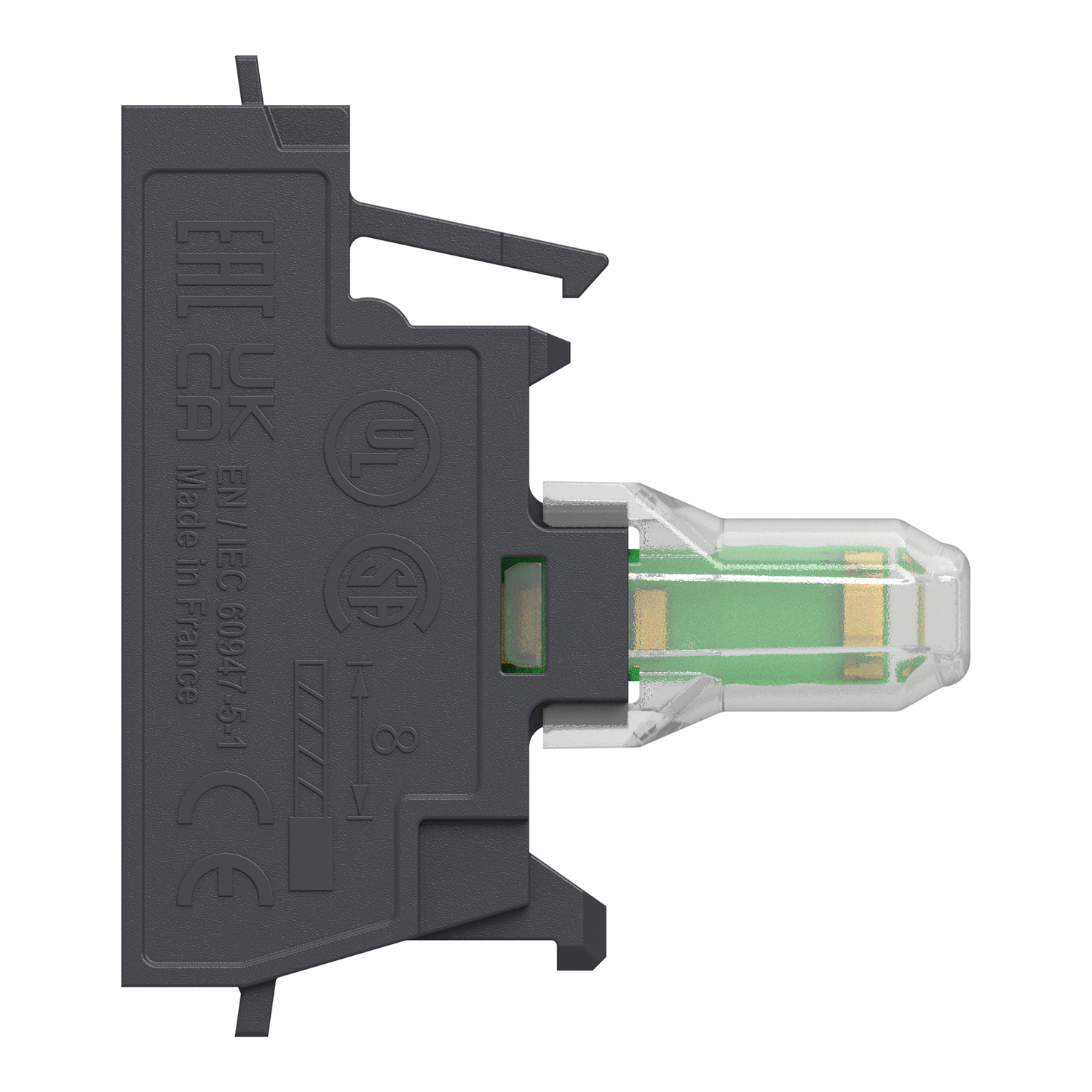

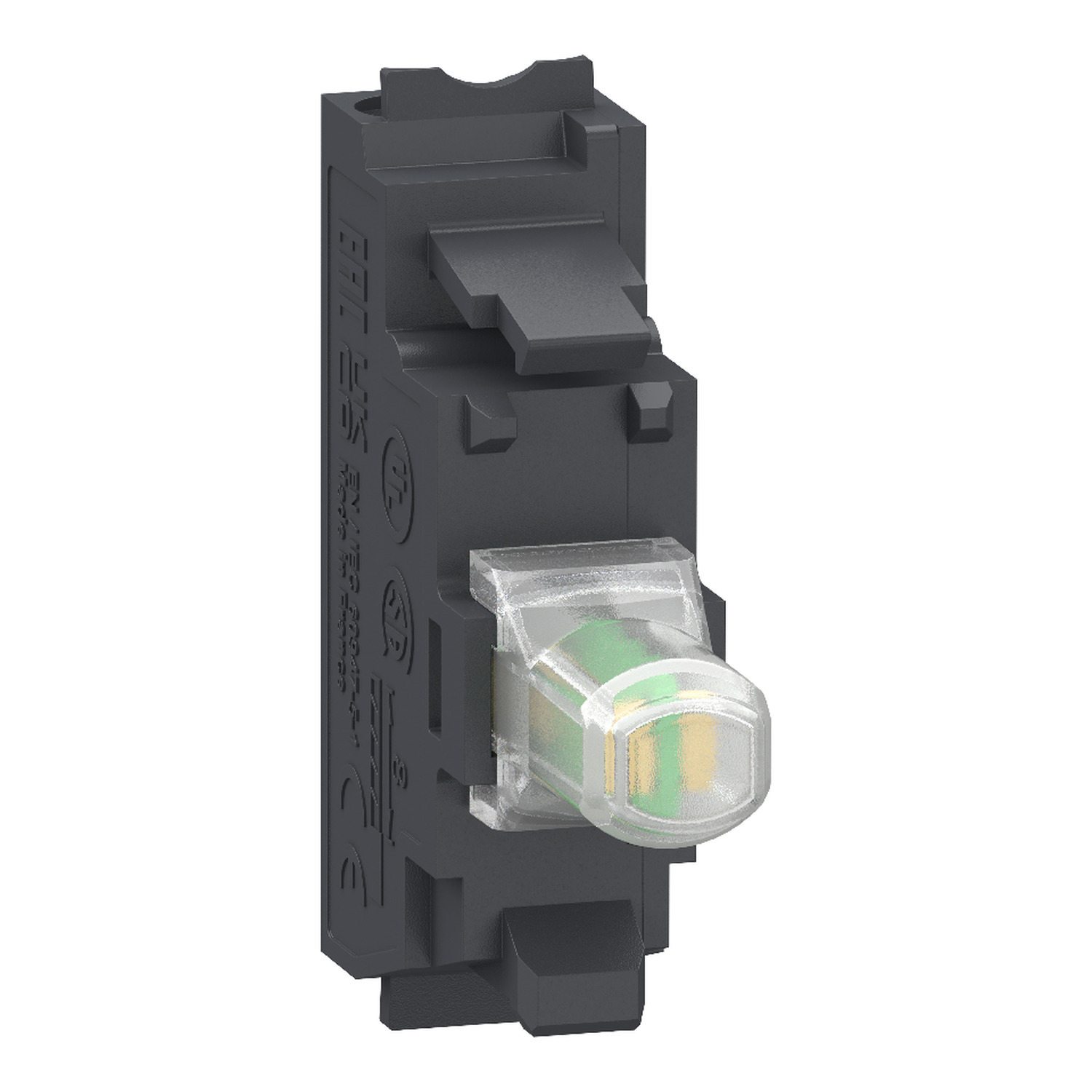

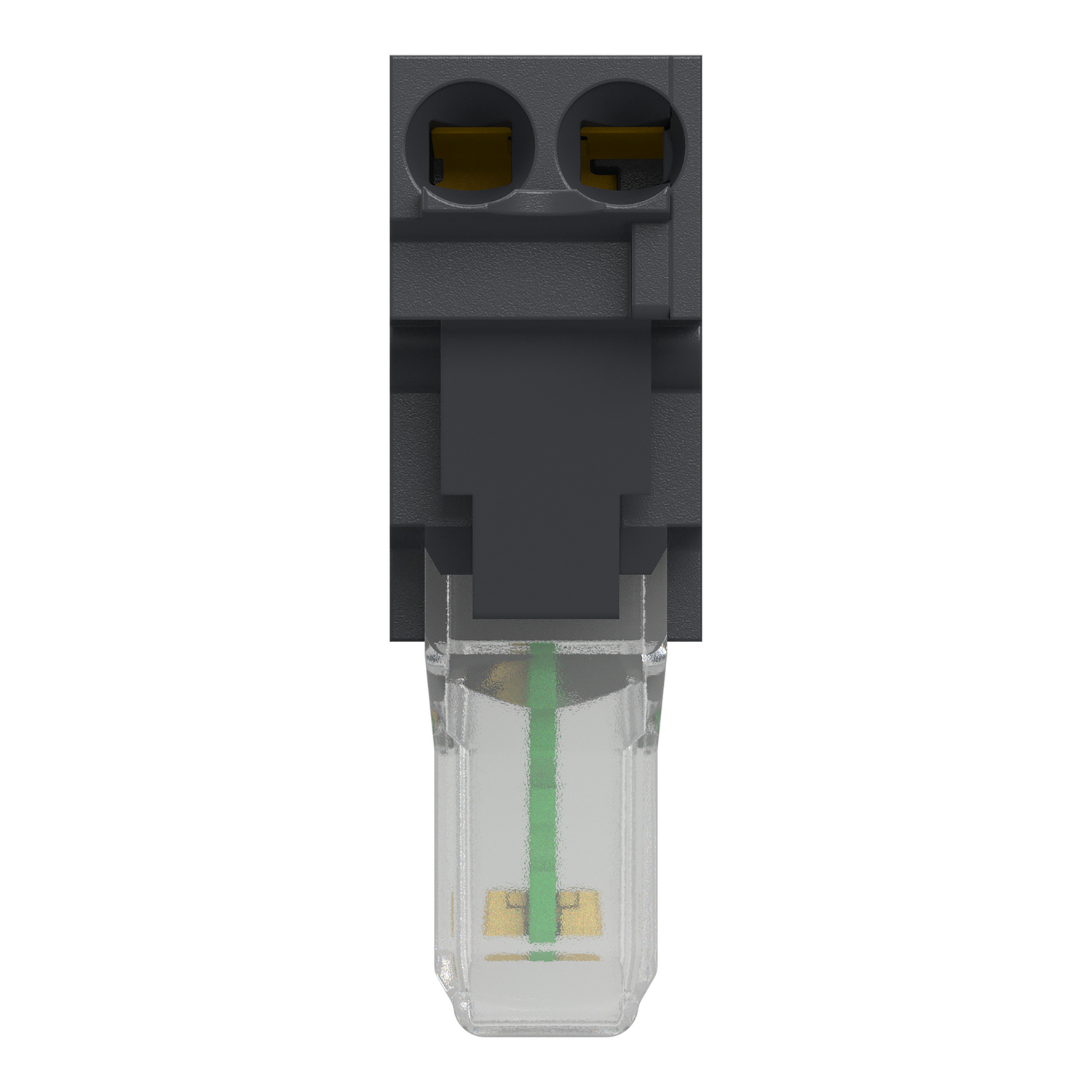

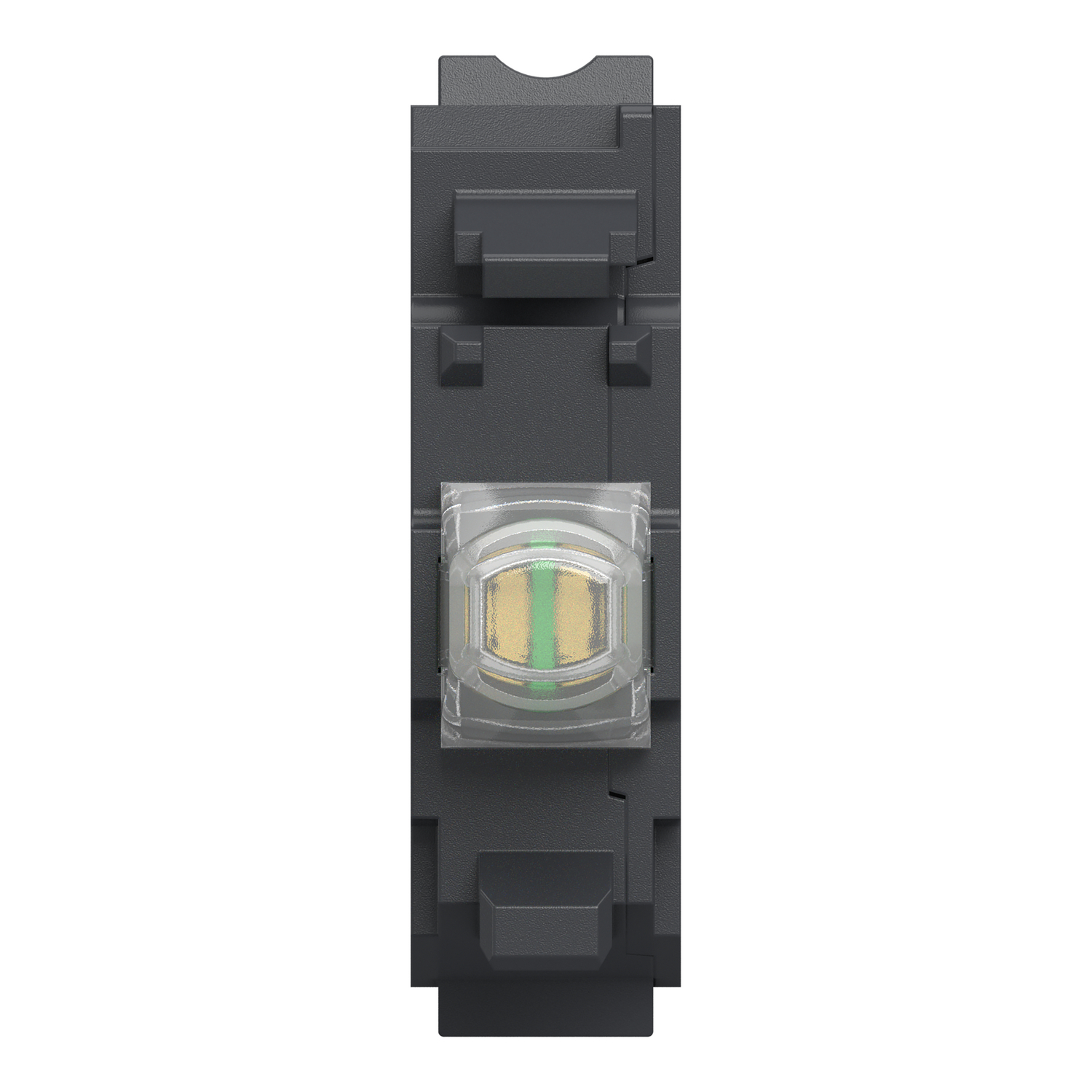

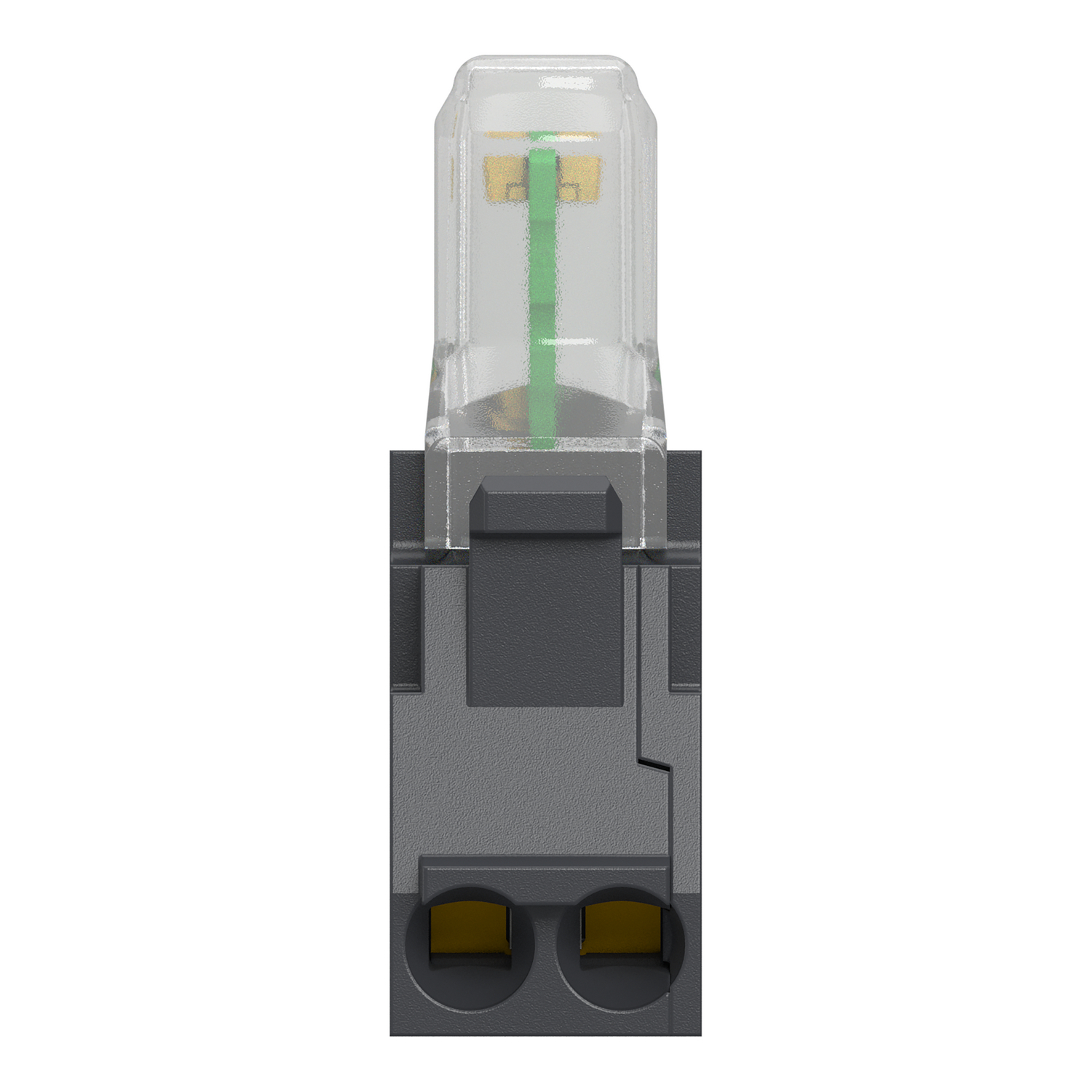

ZBVB15 ZBV Light Module, 22 mm Dia, LED Lamp, 24 V AC/DC, Spring Clamp Terminal, White
- MFR #:
- ZBVB15
- UPC:
- 785901628682
- Item #:
- 18285
ZBVB15 ZBV Light Module, 22 mm Dia, LED Lamp, 24 V AC/DC, Spring Clamp Terminal, White
- MFR #:
- ZBVB15
- UPC:
- 785901628682
- Item #:
- 18285
Product Details
This Harmony white compact light block operates with a universal LED. It is supplied with 24V AC DC and uses push-in terminal connections. It has a plastic body. It is compatible with Harmony XB4 and Harmony XB5 units. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip-together assembly and connected with simple push-in terminal connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. This light block is sold by 5. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.
Manuals and Documentation
Features
- Compatible with improved color heads
- Universal LED block to be used for all colors
- Quick and easy assembly and disassembly
- Excellent mechanical connection with operator head
- A large set of accessories to customize your panels
Specifications
Identifiers
| Manufacturer Part Number |
ZBVB15
|
|---|---|
| GTIN |
03389119037495
|
| UPC |
785901628682
|
|---|---|
| EAN |
3389119037495
|
General Information
| Manufacturer |
Schneider Electric
|
|---|---|
| Brand |
Schneider Electric
|
| Country Of Origin |
US
|
| Warranty |
18 Months
|
|---|---|
| Standards Approvals |
BAA Compliant | RoHS Compliant | UL 508 | CSA C22.2 #14 | JIS C-4520 | EN/IEC 60947-1/60947-5-1/60947-5-4/60947-5-5 | PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
|
| Application |
For use with XB4 and XB5 series 20 mm size pushbutton
|
Dimensions
| Size |
22 mm Dia
|
|---|
Technical Information
| Color |
White
|
|---|---|
| Lamp Type |
LED
|
| Mounting Type |
Front
|
| Series |
ZBV
|
|---|---|
| Terminal Type |
Spring Clamp
|
| Voltage Rating |
24 V AC/DC
|
