Lutron® Lutron Electronics

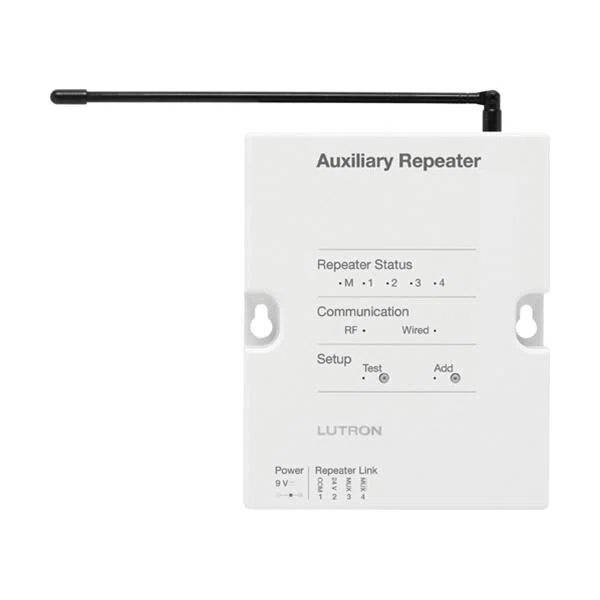

RR-AUX-REP-WH RadioRA Auxiliary Repeater

MFR #:
RR-AUX-REP-WH
UPC:
027557774666
Item #:
175520
Product Details

RadioRA® 2 repeaters extend the range of Radio Frequency (RF) signals that are sent between devices. Repeaters ensure error-free communication between system components and prevent interference from neighboring systems.

Manuals and Documentation

Features

  • Power failure memory should power be interrupted, the repeater will return to its previous state when power is restored
  • Up to four (4) auxiliary repeaters can be added to extend the RF range for larger system applications
  • Each repeater has an RF range of 30 ft, covering a total area of approximately 2500 sq-ft
  • Test button enters the system diagnostic mode
  • System with 2 main repeaters must be connected via ethernet
  • RS485 port to connect to other repeaters through a wired link (daisy-chain)
  • One LED on, powered by the 9 V adapter test condition
  • Tested to withstand electrostatic discharge without damage or memory loss
  • Main repeaters allow configuration and integration to the system through ethernet or RS232 ports
  • Ethernet, RS232 and RS485 main repeater, white color
  • 6.25 in antenna length
  • For systems that extend up to 30 ft (9 m), one (1) main repeater is required to set up the system
  • Can be programmed from a PC
  • Mount on a wall, ceiling, or level surface using the two M3 screws provided

Specifications

Identifiers

Identifiers
Manufacturer Part Number
RR-AUX-REP-WH
Identifiers
UPC
027557774666

General Information

General Information
Manufacturer
Lutron Electronics
Brand
Lutron®
Country Of Origin
US
General Information
Warranty
Limited
Standards Approvals
Industry Canada Certified | FCC Approved | ASEP Certified | CRC Certified | SUTEL Certified | ASEP/COFETEL/CRC and FCC Certified | cULus Listed | INDOTEL Certified and SUTEL Certified
Application
Indoor Applications

Dimensions

Dimensions
Dimensions
5-1/4 in H x 4-1/4 in W x 1-1/16 in D

Technical Information

Technical Information
Environmental Conditions
0 to 90% Non-Condensing Humidity
Mounting Type
Ceiling/Surface
Power Supply
300 mA at 120 V AC
Technical Information
Series
RadioRA®
Stripped Manufacturer Part Number
RRAUXREPWH
Temperature Rating
32 to 104 deg F
