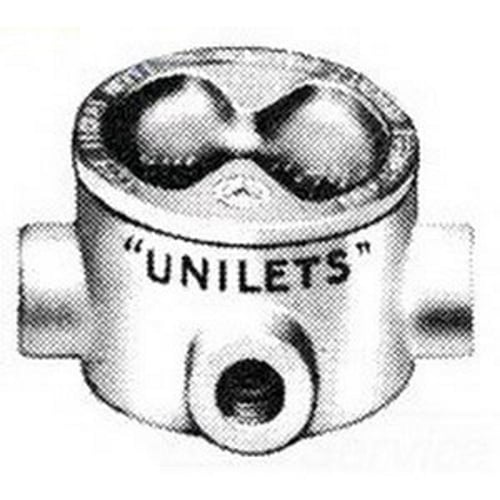

Conduit Outlet Box, Dust-Ignitionproof Explosionproof, Series: GRH, 3/4 in, 3.38 in Cover Opening Size, 13.8 cu-in, For Use With: Threaded Metallic Conduit System, Malleable Iron, Triple Coated, 3.75 in H x 3.75 in W x 1.63 in D
MFR: Appleton Electric
MFR #: GRHT75
UPC: 781381439909
Item #: 175350
Conduit Outlet Box, Dust-Ignitionproof Explosionproof, Series: GRH, 3/4 in, 3.38 in Cover Opening Size, 13.8 cu-in, For Use With: Threaded Metallic Conduit System, Malleable Iron, Triple Coated, 3.75 in H x 3.75 in W x 1.63 in D
MFR #: GRHT75
UPC: 781381439909
Item #: 175350
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$178.22
each
UNILETS Outlet Box, Number Of Outlet: 3, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: (3) 3/4 IN GRHT Hub, Cubic Capacity: 13.8 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Height: 3-3/4 IN, Width: 3-3/4 IN, Depth: 1.63 IN, Nema R
Manuals and Documentation
Features
- Accurately tapped, tapered hub threads
- Smooth, rounded integral bushing
- General purpose wiring
- Catalog Number
- GRHT75
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Sub Brand
- UNILETS
- Country of Origin
- Mexico
- Made in USA
- No
- Application
- For Use With Threaded Metal Conduit
- Cable Entry
- (3) 3/4 IN GRHT Hub
- Cubic Capacity
- 13.8 CU IN
- Knockouts
- No
- Material
- Malleable Iron
- Special Features
- Explosionproof, dust-ignitionproof; Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with copperfree (4/10 of 1 PCT maximum) aluminum epoxy powder coat cover; General purpose wiring; Internally threaded body with externally threaded covers; Standard O-rings provide raintight fit NEMA 3, 4; Internal ground screw standard; Smooth, rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance
- Standard
- UL 886, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups A, B, C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
- RoHS Indicator
- Contact Manufacturer
- UPC
- 781381439909
- GTIN
- 00781381439909
- Item Type
- Outlet Box
- Length
- 12.2000
- Length UOM
- Inch
- Width
- 9.6000
- Width UOM
- Inch
- Height
- 1.2000
- Height UOM
- Inch
- Weight
- 2.750
- Weight UOM
- Pounds
- Size
- 3/4
