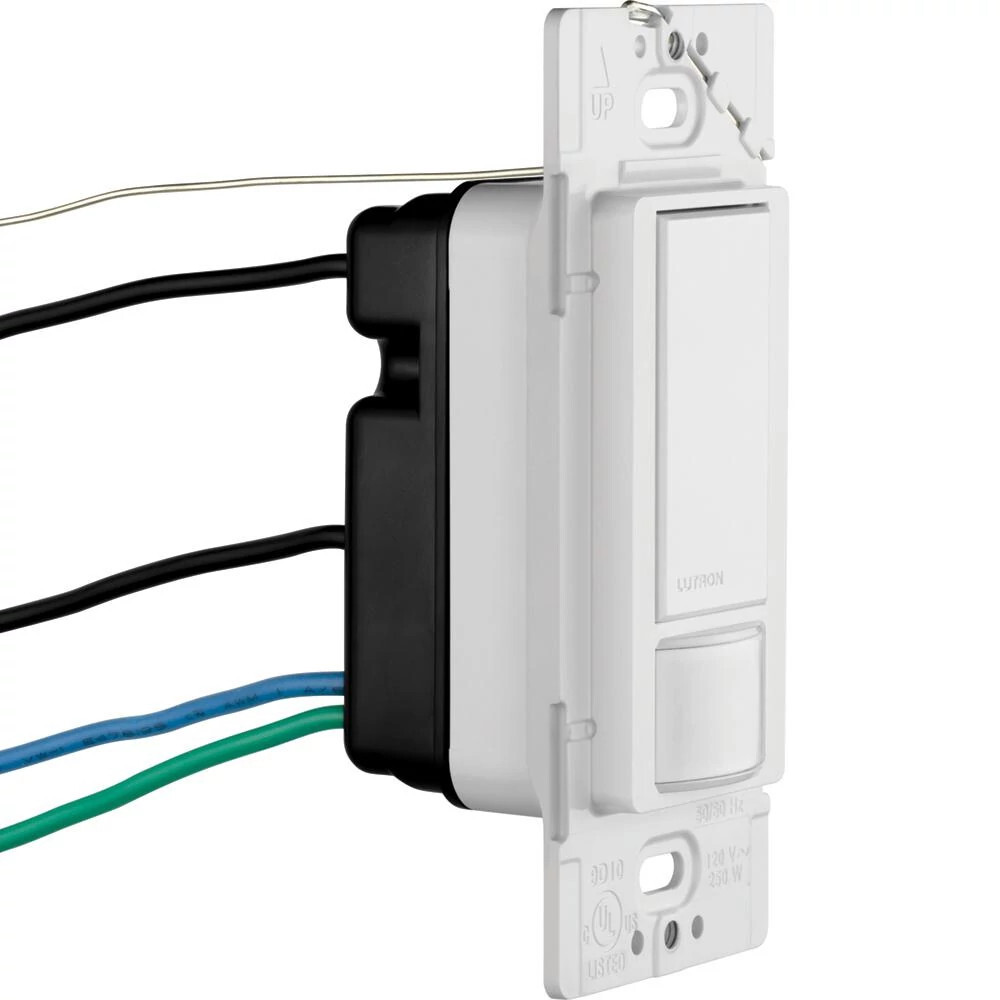

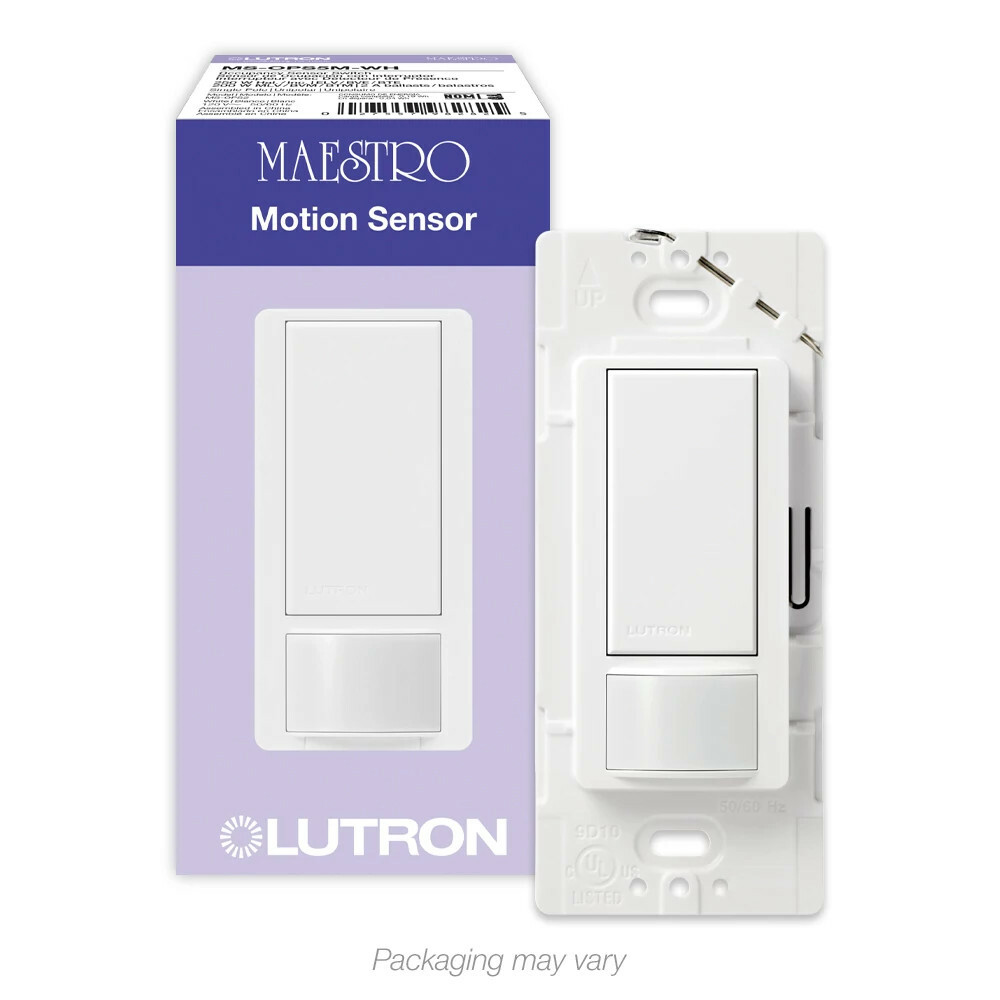

MS-OPS5M-WH Maestro Motion Sensor Switch, 5 Amp Light/3 Amp Fan, 120V, 1 Pole/Multi-Location, Ground or Neutral Required, White
MS-OPS5M-WH Maestro Motion Sensor Switch, 5 Amp Light/3 Amp Fan, 120V, 1 Pole/Multi-Location, Ground or Neutral Required, White
| Location | Available Qty |
|---|---|
| Available | 22 |
Coordinating Claro Wall plate and Accessories sold separately. Let Lutron's Maestro Occupancy Sensor switch turn the lights or fan on and off for you. It's a simple, easy and low cost way to save energy and add automation to your home. Install a Maestro Sensor and lights/fan turn on when you enter the room and then turn off automatically after you leave. This sensor features XCT Sensing Technology which detects minor motion, such as typing at a desk or reading, ensuring sensor does not turn off inadvertently. Equipped with ambient light detection, you can customize your sensor to detect daylight so lights don't turn on with enough natural light in your room. Keeping the sleek design of the Maestro family, Lutron sensors will match the decor of any room in your home. Install a sensor in your bedroom so lights aren't left on mistakenly or in the bathroom for your exhaust fan. This Maestro Sensor works with any bulb type, including CFLs and LEDs or fans up to 3 Amp. This switch can also be easily programmed to function as a vacancy (manual-on) sensor.
Manuals and Documentation
- Catalog Number
- MS-OPS5M-WH
- Manufacturer
- Lutron Electronics
- Brand
- Lutron
- Application
- Lighting Control
- Enclosure
- Plastic
- Mounting
- Wall
- Sensing Range
- 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
- Sensor
- Passive infrared motion detection with dependable Lutron XCT technology
- Special Features
- Combines a Maestro switch with a passive infrared occupancy sensor. Detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly. Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Can be set to auto-on/auto-off or manual-on/auto-off. Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment. Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan. Ground wire required.
- Standard
- UL, cUL, NOM
- Supply Voltage
- 120
- UPC
- 027557983570
- GTIN
- 00027557983570
- Item Type
- Occupancy sensor switch, multi-location/3-way/single-pole
- Environmental Conditions
- 0 to 90% humidity, non-condensing. Indoor use only.
- Operating Temperature
- 32 to 104 F
- Cross Reference Products
- EatonWD OS106D1-W|EatonWD VS310U-W|HublWiring RMS121ILW|Lutron MS-OPS5M-WH|PassSeymor RWu600BWCC4|WattStoppr CS-50-W|WattStoppr RS-150BA-N-W
