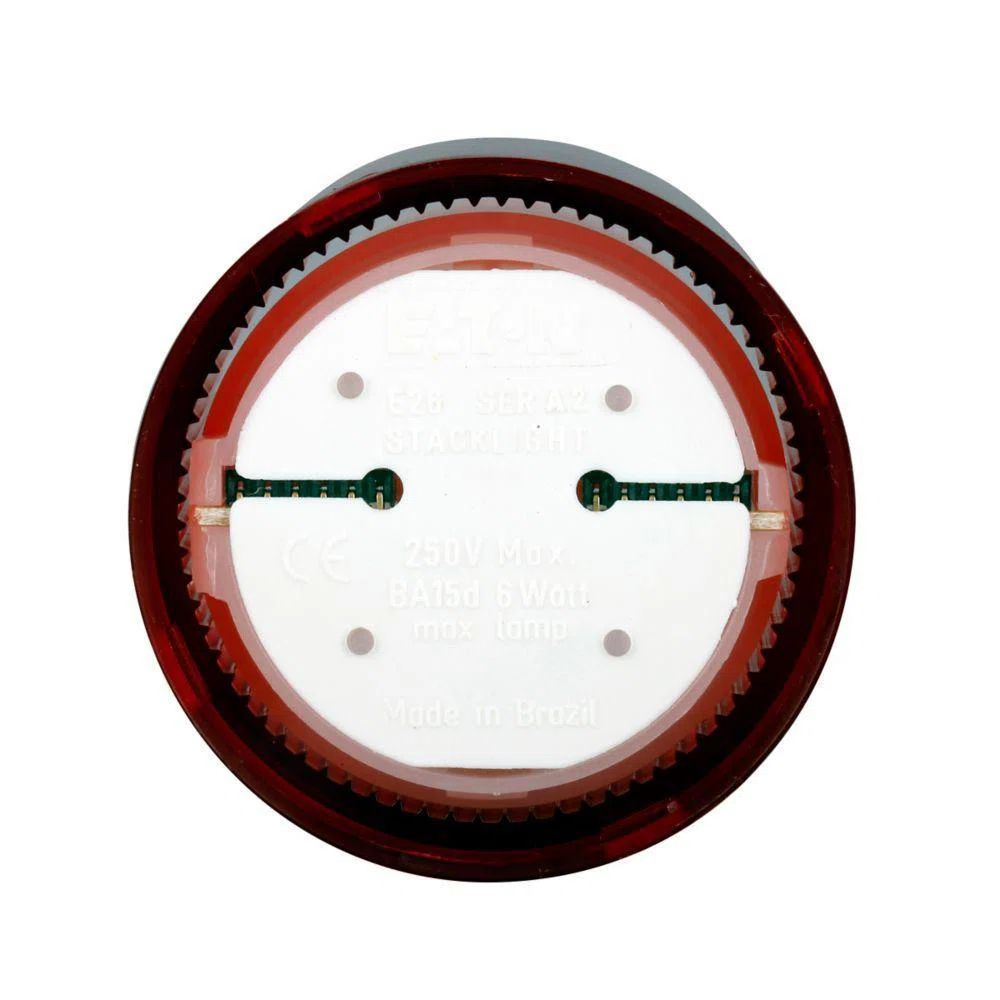

E26B2V2 E26 Standard Stack Light Module, 24 V AC/DC, Incandescent Lamp, 2.56 in Dia, Surface Mount, Red
- MFR #:
- E26B2V2
- UPC:
- 782114124369
- Item #:
- 173933
E26B2V2 E26 Standard Stack Light Module, 24 V AC/DC, Incandescent Lamp, 2.56 in Dia, Surface Mount, Red
- MFR #:
- E26B2V2
- UPC:
- 782114124369
- Item #:
- 173933
$150.40
each
Product Details
Eaton's E26 stacklight is a modular unit system that provides illuminated and audible status indication in all directions New Eaton stacklights are designed to improve control over key process and increase machine availability. The stacklights are engineered to keep you informed about material requirements, downtime and hazards.
Manuals and Documentation
Features
- Light modules include lens diffusers which provide even illumination and eliminate hot spots
- To maximize illumination and light dispersion, incandescent units include an opal white diffuser while LED diffusers are clear
Specifications
Identifiers
| Manufacturer Part Number |
E26B2V2
|
|---|---|
| GTIN |
00782114124369
|
| UPC |
782114124369
|
|---|
General Information
| Manufacturer |
Eaton
|
|---|---|
| Brand |
EATON
|
| Country Of Origin |
BR
|
| Warranty |
1 year
|
| Standards Approvals |
UL 508,IEC 6113-2,CSA Std. C22.2 No. 142,CE Marked
|
|---|---|
| Application |
Automation, Logic Control Equipment and Stack Light Applications
|
| Includes |
Lens, Diffuser and Lamp
|
Dimensions
| Dimensions |
2.56 in L x 2.56 in W x 3.31 in H
|
|---|
| Diameter |
2.56 in
|
|---|
Technical Information
| Amperage Rating |
208 mA
|
|---|---|
| Average Life |
7000 hr
|
| Color |
Red
|
| Flash Rate |
60 fpm
|
| Flash Type |
Steady
|
| Lamp Type |
Incandescent
|
| Material |
Polycarbonate
|
| Mounting Type |
Surface
|
| Nema Rating |
NEMA 4/4X/13/IP65
|
|---|---|
| Series |
E26
|
| Temperature Rating |
-4 to 140 deg F
|
| Terminal Type |
Wire
|
| Type |
Standard
|
| Voltage Rating |
24 V AC/DC
|
| Wattage |
6 W
|
