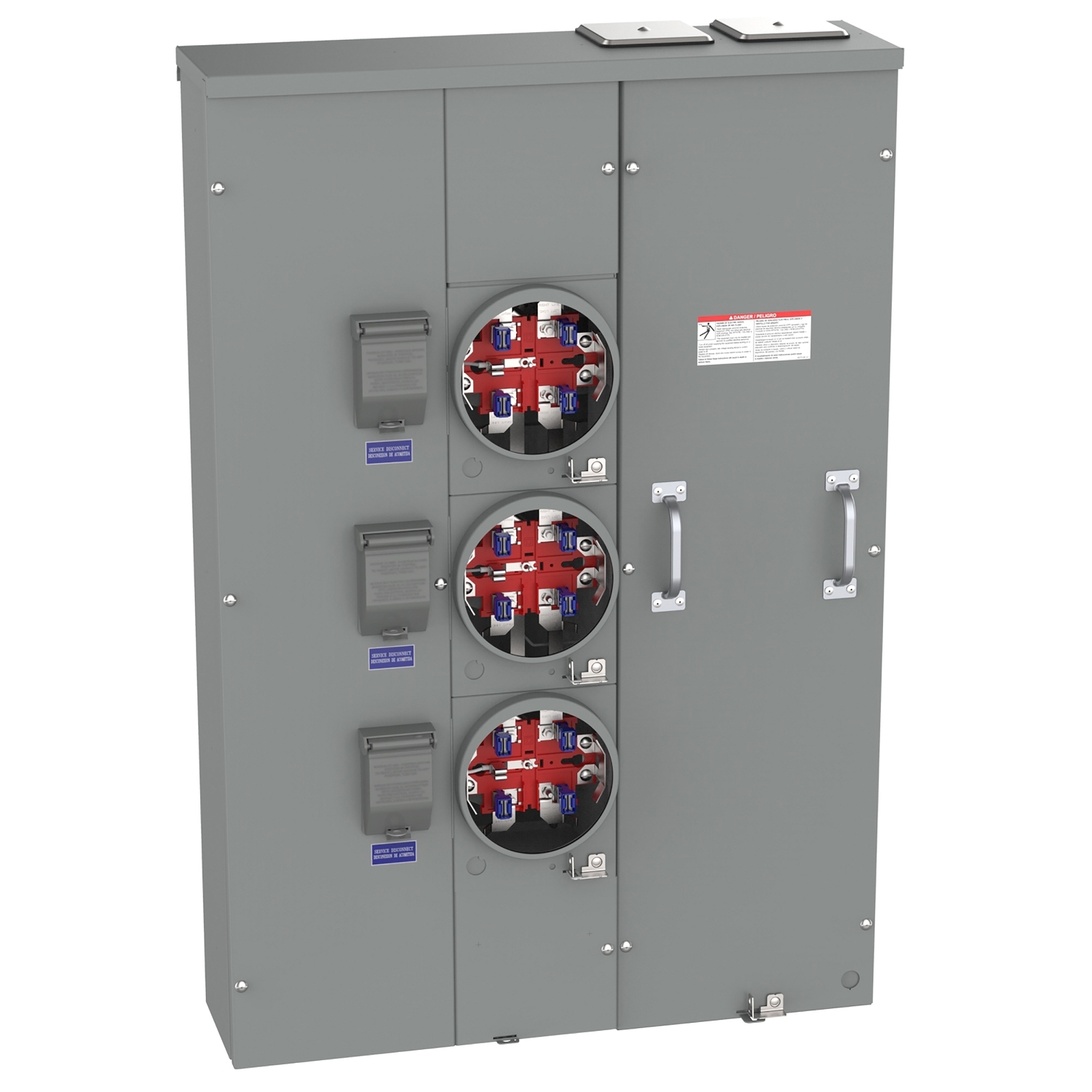

MPH43200 Meter Pak Meter Center, 400 Amp, 1 Phase, Ringless, Horn, 5 Jaw, 3 Position, OH, UG, 240V
MPH43200 Meter Pak Meter Center, 400 Amp, 1 Phase, Ringless, Horn, 5 Jaw, 3 Position, OH, UG, 240V
Location | Available Qty |
---|---|
Available | Available to Order |
MPH Meter Pak meter centers offer a wide range of multimetering applications. MPH meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MPH meter center has a ringless socket with a horn bypass and a 5th jaw. The aluminum main bus ampacity is 400 A. This MPH meter pak meter center has 3 meter sockets. The maximum tenant main lugs amperage is 200 A with a 240 VAC single phase maximum. This MPH meter center with accept 1/0 AWG to 600 kcmil copper or aluminum wire. Meter center is UL listed.
Manuals and Documentation
- Catalog Number
- MPH43200
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- United States
- Made in USA
- Yes
- Bypass Type
- Horn
- Enclosure
- Steel
- Mounting
- Surface
- Phase
- 1
- Special Features
- Main Lugs;Aluminium: busbar
- Standard
- UL Listed
- UPC
- 785901410515
- GTIN
- 00785901410515
- Item Type
- Meter Center;Ringless
