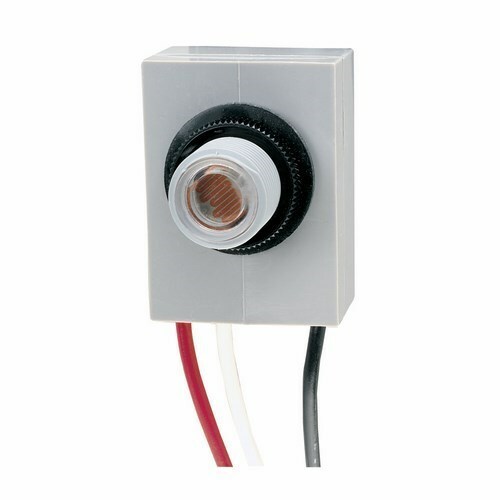

Button Thermal Photocontrol, 208-277 V
MFR: Intermatic
MFR #: K4023C
UPC: 078275029576
Item #: 169485
Availability
| Location | Available Qty |
|---|---|
| Available | 23 |
$17.66
each
These photocontrols install within lighting fixtures, post lamps, or in-wall boxes to provide dusk-to-dawn ON/OFF control of outdoor lighting.
Manuals and Documentation
- Catalog Number
- K4023C
- Manufacturer
- Intermatic
- Brand
- Intermatic
- Country of Origin
- Mexico
- Made in USA
- No
- Application
- Dusk to Dawn Lighting Control
- Connection
- Color Coded Lead
- Frequency Rating
- 50/60 HZ
- Mounting
- Button Fixed Mount
- Sensitivity
- 1-5 FC ON, 3-15 FC OFF
- Sensor
- Thermal Type Photo Control (Cadmium Sulfide)
- Special Features
- Features: Cadmium Sulfide Photocell, Sonic-Welded Polycarbonate Housing, 9 IN Wire Leads
- Standard
- UL Recognized, CSA, Title CA 20 Listed, California Title 24 Compliant
- Supply Voltage
- 208 - 277 VAC
- UPC
- 078275029576
- GTIN
- 00078275029576
- Item Type
- Thermal Type Photo Cell
- Size
- 1-13/16 LENGTH X 1-5/16 WIDTH X 1-9/16 DEPTH IN, 4.6 LENGTH X 3.3 WIDTH X 4 DEPTH CM
- Operating Temperature
- -40 to +158 DEG F -40 to +70 DEG C
- Cross Reference Products
- 3002
