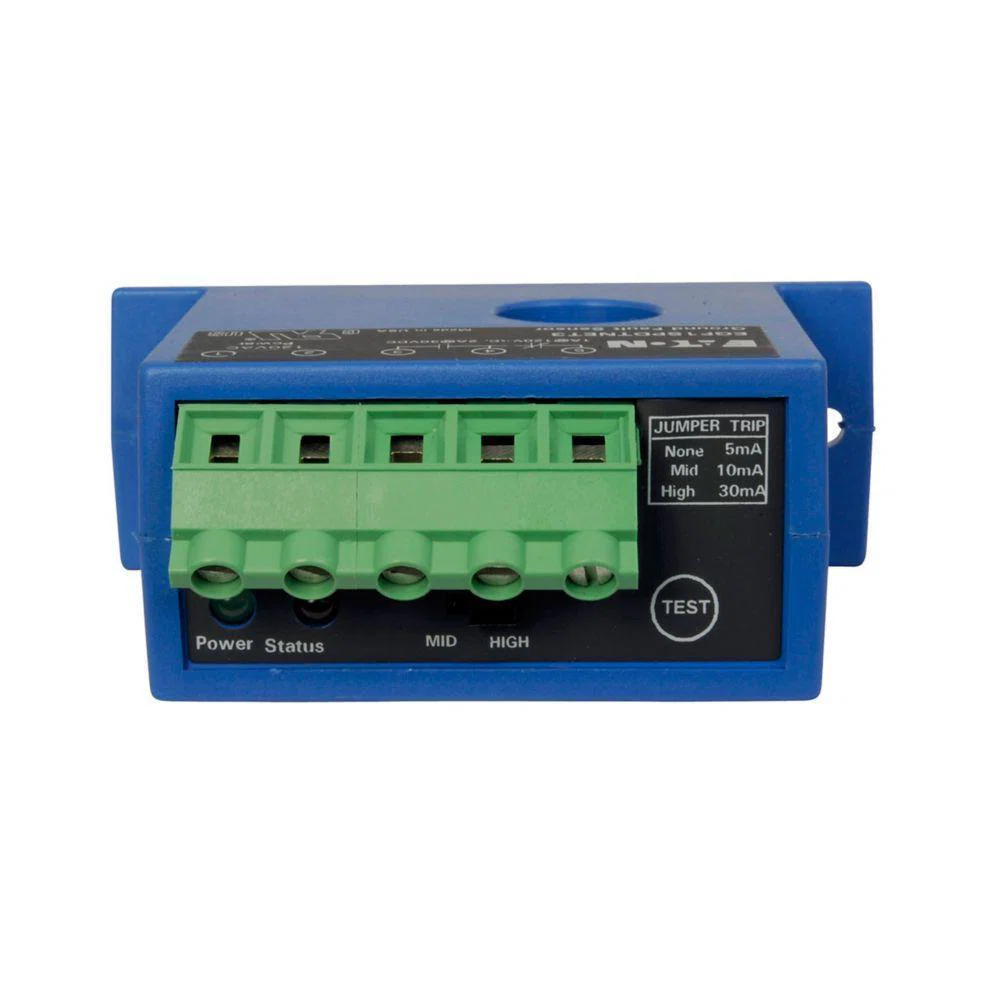

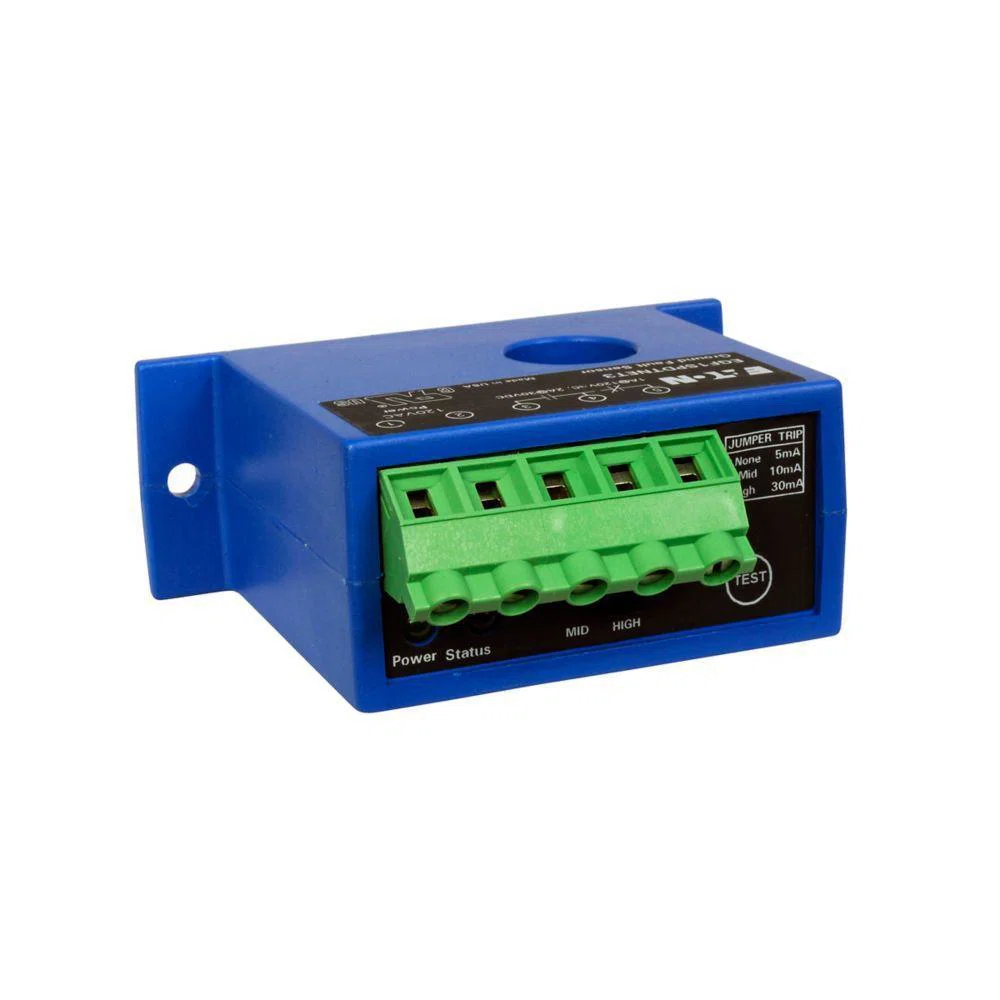

EGF1SPDTNET3 CurrentWatch Solid Core Ground Fault Sensor Current Switch, 15 to 200 ms Response, SPDT Relay Output, 120 V AC

MFR #:
EGF1SPDTNET3
UPC:
786685120300
Item #:
1673149
$934.59 each
Product Details

The CurrentWatch EGF Series from EATON electrical sector is a family of ground fault (earth leakage) sensors. Ground fault sensors help protect people, products and processes from damage by ground fault conditions by monitoring all current carrying conductors in grounded 1 and 3-phase delta or wye systems. The EGF Series with solid state outputs offers the benefit of reliable, long lasting solid state switches. Solid state design provides unlimited switch operating life, superior resistance to shock and vibration, zero off state leakage, high switch speeds and high input output isolation. The EGF Series with mechanical relay outputs is available in solid core housings with a choice of NO or NC SPST latching relays and a SPDT Form C relay with auto-reset.

Manuals and Documentation

Features

  • Broad range of options to meet application needs no or NC, solid state or mechanical relays, normally energized or normally de-energized contacts
  • Setpoint options maximize ease of use and application flexibility field selectable 5, 10 or 30 ma setpoints on the EGF "triset" models make user adjustments fast, sure and convenient
  • Compatible with standard equipment application on single and three phase systems, ideal for use with shunt trip breakers, and magnetically isolated from monitored circuit and control power

Specifications

Identifiers

Identifiers
Manufacturer Part Number
EGF1SPDTNET3
GTIN
00786685120300
Identifiers
UPC
786685120300

General Information

General Information
Manufacturer
Eaton
Brand
EATON
Country Of Origin
US
General Information
Warranty
1 year
Standards Approvals
UL/CUL listed,RoHS Compliant
Application
Personnel Protection (Typically 5 mA), Equipment Protection (Typically 10 or 30 mA) and Regulatory

Dimensions

Dimensions
Size
1.5 in L x 2.5 in W x 3.88 in H

Technical Information

Technical Information
Amperage Rating
1 A
Connection Type
Screw Terminal
Environmental Conditions
0 to 95% Non-Condensing Relative Humidity
Frequency Rating
50 to 400 Hz
Operating Temperature
-4 to 122 deg F
Technical Information
Output Type
SPDT Relay
Response Time
15 to 200 ms
Series
EGF
Type
Solid Core Ground Fault Sensor
Voltage Rating
120 V AC
