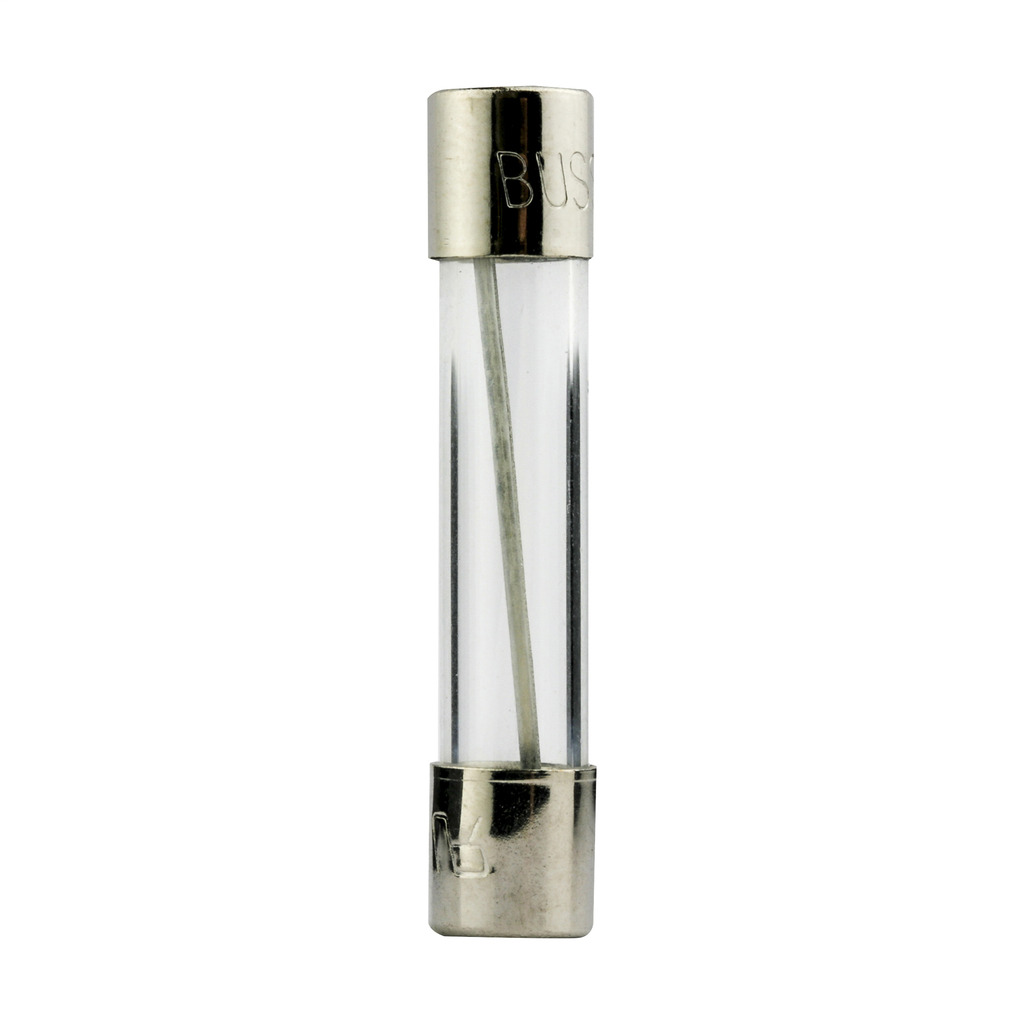

Eaton AGC series Fast-acting fuse 15A, 32 Vac, 32 Vdc (self certified), AGC-15-R
MFR: Eaton Bussmann
MFR #: AGC-15-R
UPC: 051712655026
Item #: 166132
Eaton AGC series Fast-acting fuse 15A, 32 Vac, 32 Vdc (self certified), AGC-15-R
MFR #: AGC-15-R
UPC: 051712655026
Item #: 166132
Availability
| Location | Available Qty |
|---|---|
| Available | 37 |
$2.24
each

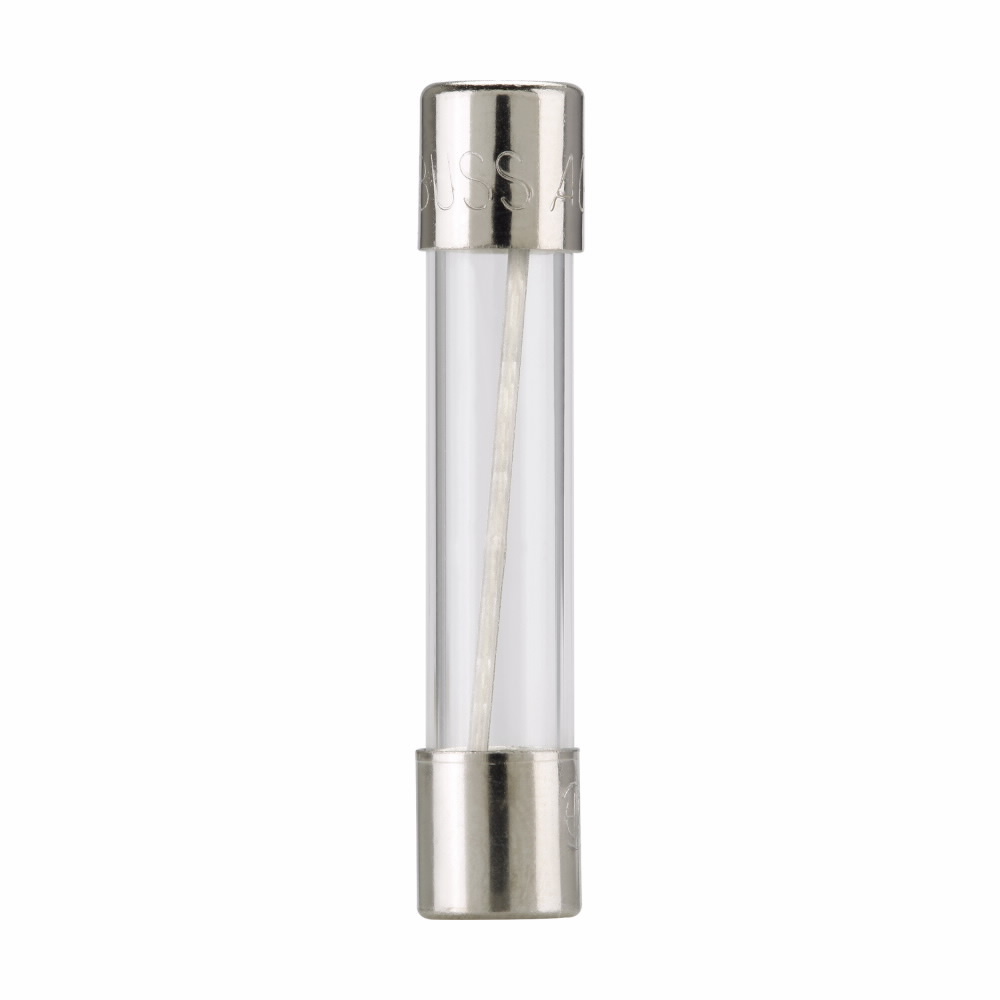

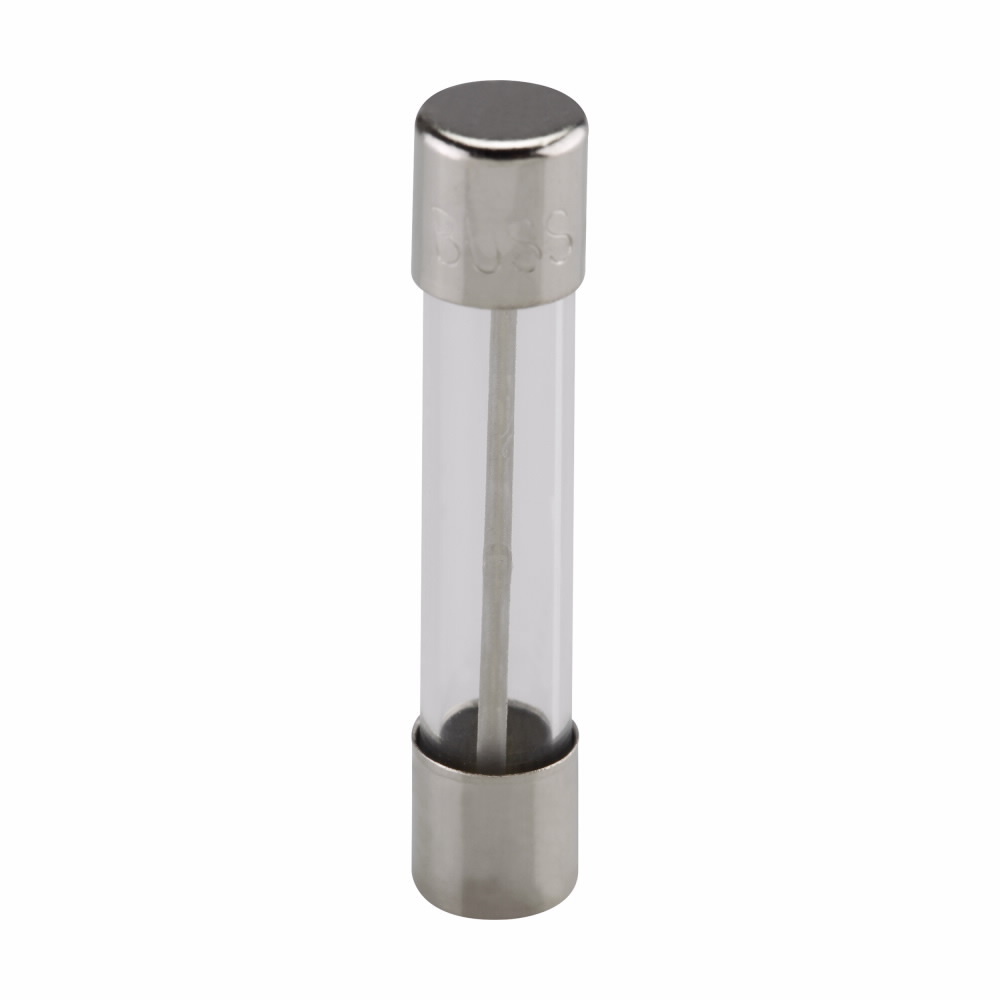

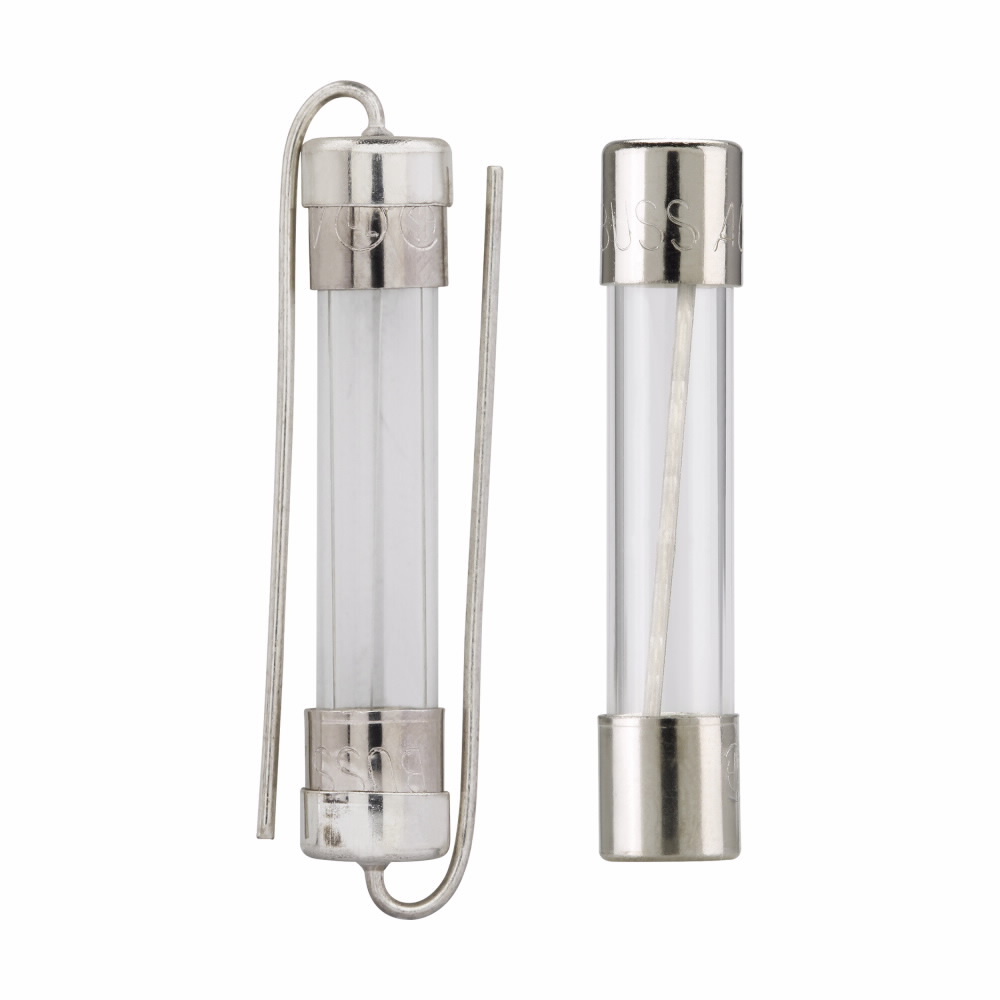

Fast-acting, glass tube 1/4" x 1-1/4" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation. Eaton's AGC fast-acting, glass tube 1/4" x 1-1/4" ferrule fuses are designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.
Manuals and Documentation
- Catalog Number
- AGC-15-R
- Manufacturer
- Eaton Bussmann
- Brand
- Eaton Bussmann Series
- Country of Origin
- Taiwan, Province Of China
- Made in USA
- No
- Amperage Rating
- 15
- Application
- Ind Facilities & Factories - Facility: Safety and Security Systems
- Connection
- Ferrule end x ferrule end
- Interrupt Rating
- 1 kAIC at 32 Vac
- Material
- Glass tube|Nickel-plated brass end cap construction
- Response Time
- 60 min at 135%, 120 sec at 200%
- Special Features
- Interrupt Rating 1000 Amp at 32 Vac, Material Glass Tube, Nickel Plated Brass Endcap, ROHS Compliant
- Standard
- CE Marked,RoHS Compliant
- UPC
- 051712655026
- GTIN
- 00051712655026
- Item Type
- Fast-acting glass tube fuse
- Weight UOM
- Pounds
- Size
- 1/4 In Diameter X 1-1/4 In Length
- Voltage Rating
- 32 Vac, 32 Vdc (self certified)
