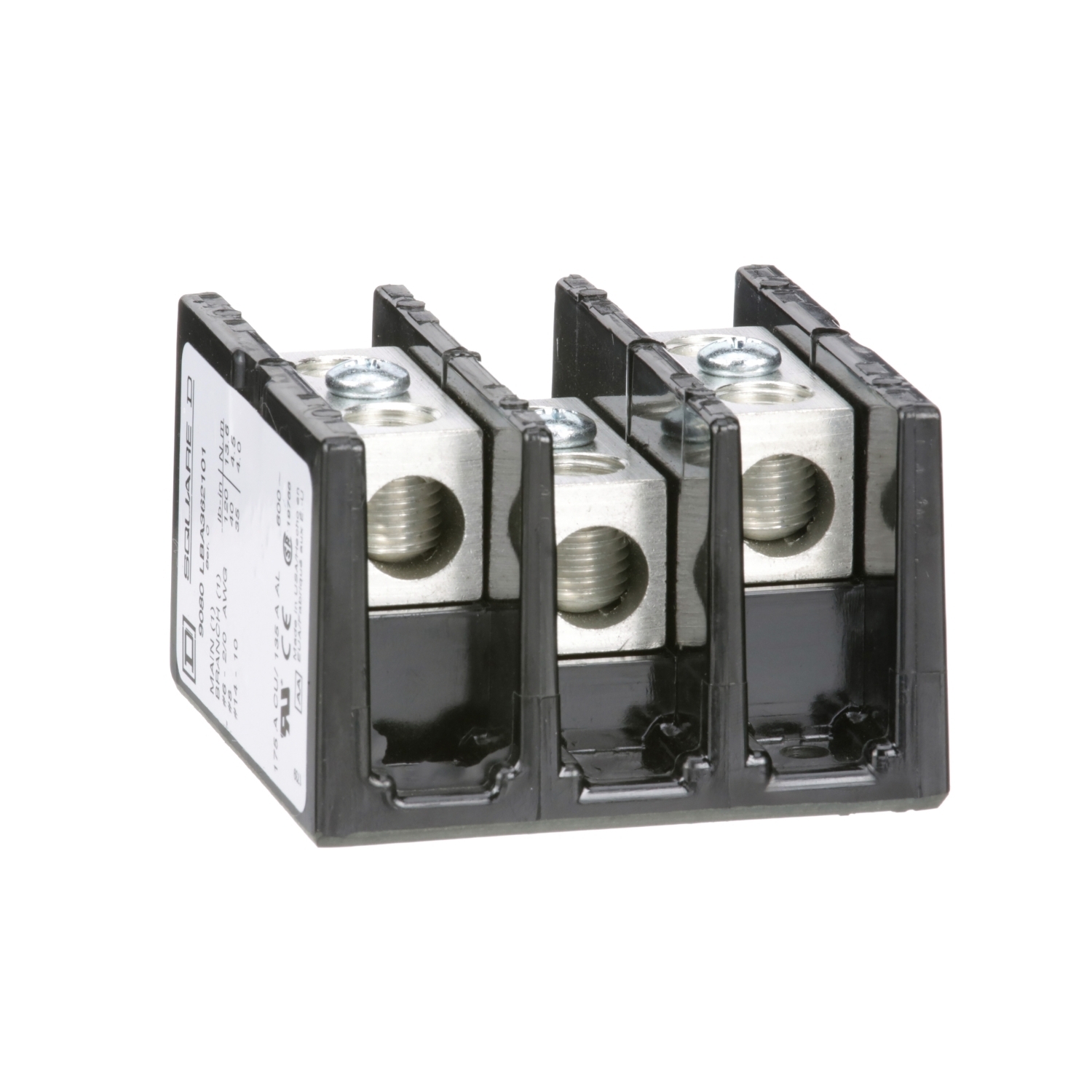

Power distribution block, Linergy, 3 pole, 1 line, 1 load, 175A Cu, 135A Al, 600V
MFR: Schneider Electric
MFR #: 9080LBA362101
UPC: 785901097440
Item #: 164604
Power distribution block, Linergy, 3 pole, 1 line, 1 load, 175A Cu, 135A Al, 600V
MFR #: 9080LBA362101
UPC: 785901097440
Item #: 164604
Availability
| Location | Available Qty |
|---|---|
| Available | 30 |
$36.32
each

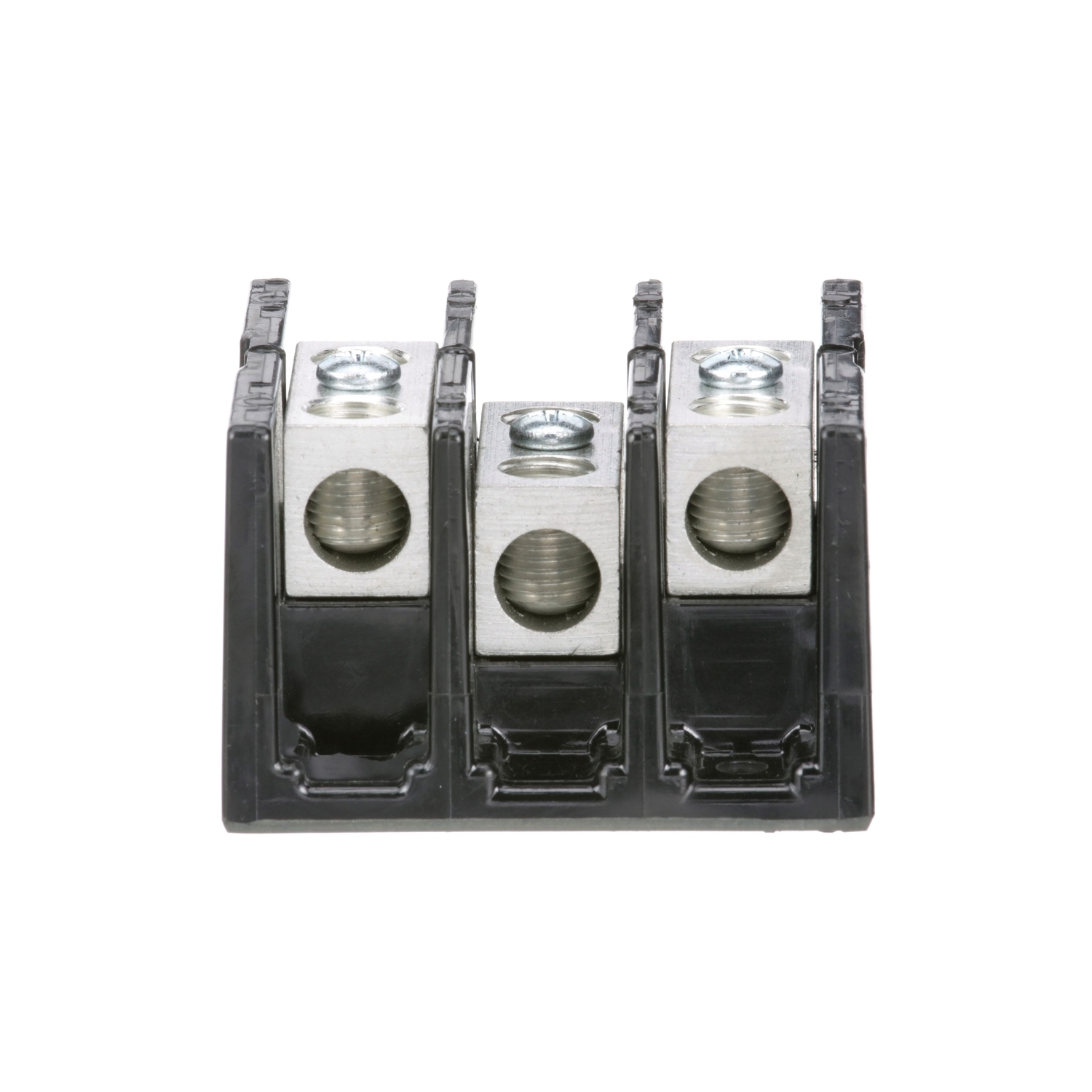

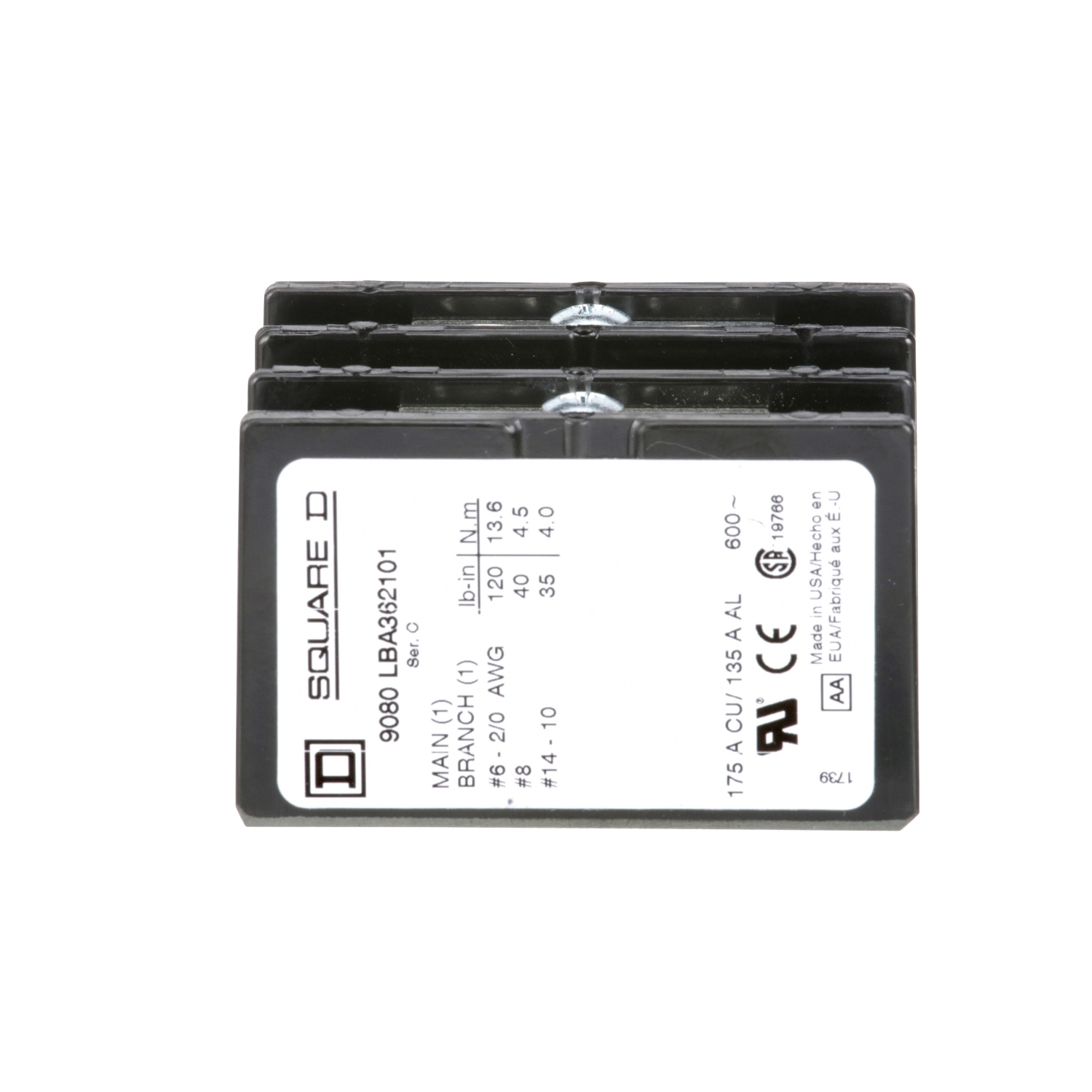

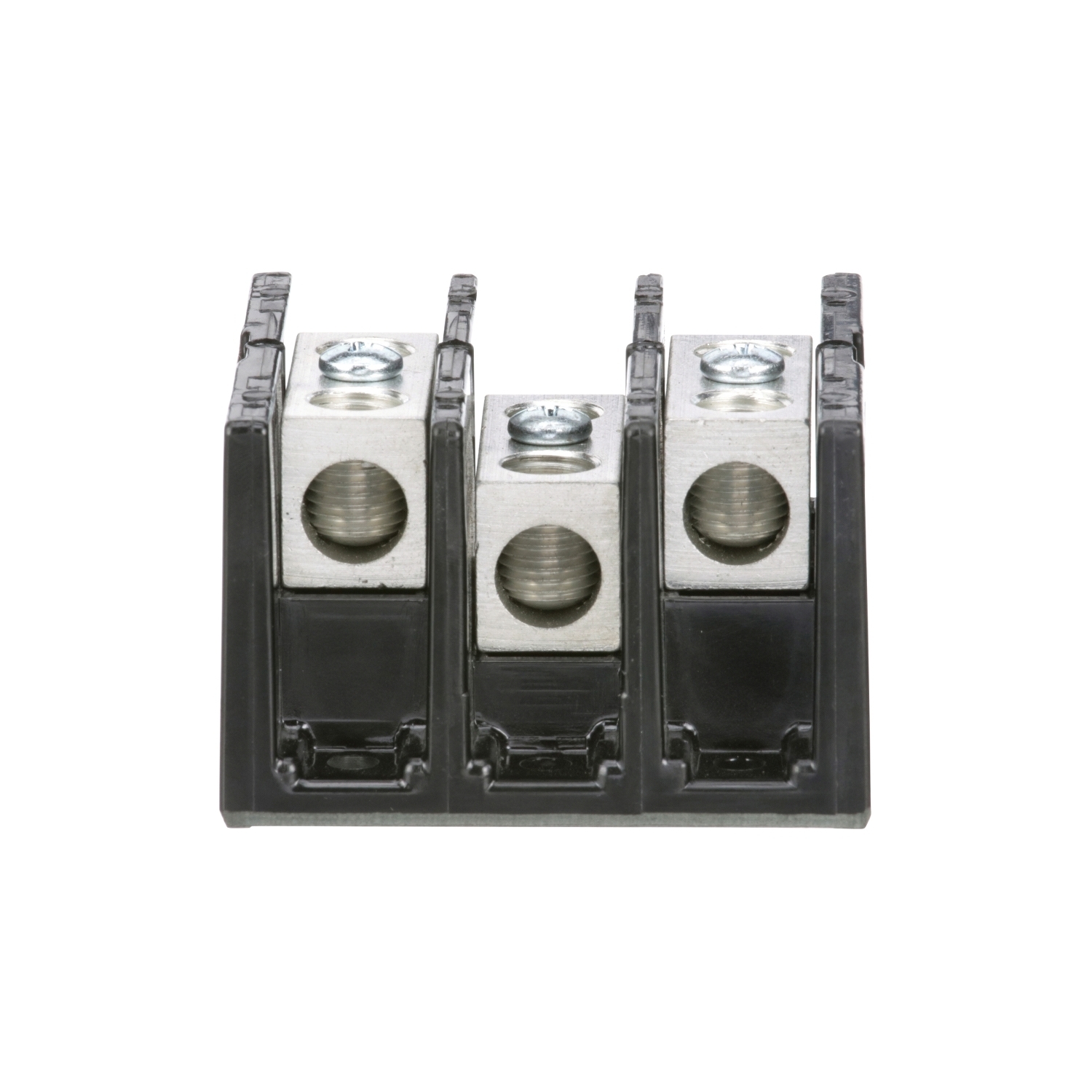

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side. The line side lug is rated to accept one or two #14 to 2/0 copper or aluminum wire. The load side lug is rated to accept one #14 to 2/0 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 175 amperes with copper wire and 135 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.
Manuals and Documentation
- Catalog Number
- 9080LBA362101
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- United States
- Made in USA
- Yes
- Connection
- Tin plated aluminium lugs;Line lug 40 lbf.in AWG 8 copper or aluminium;line lug 35 lbf.in AWG 12...AWG 10 copper or aluminium;line lug 35 lbf.in AWG 14 copper;load lug 40 lbf.in AWG 8 copper or aluminium;load lug 35 lbf.in AWG 12...AWG 10 copper or aluminium;load lug 35 lbf.in AWG 14 copper;line lug 120 lbf.in AWG 6...AWG 2/0 copper or aluminium;load lug 120 lbf.in AWG 6...AWG 2/0 copper or aluminium
- Material
- Phenolic: block
- Mounting
- Surface
- UPC
- 785901097440
- GTIN
- 00785901097440
- Item Type
- Power Distribution Block;9080LB23
