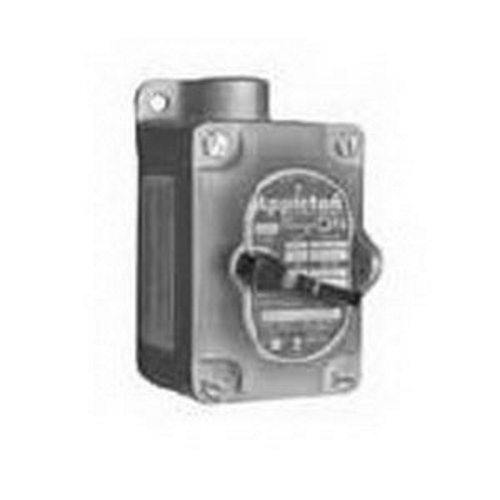

EDS Series 1-Gang 3-Way Factory Sealed Tumbler Switch; 20 Amp, 120/277 Volt AC
MFR: Appleton Electric
MFR #: EDS150-F3W
UPC: 781381325424
Item #: 163990
EDS Series 1-Gang 3-Way Factory Sealed Tumbler Switch; 20 Amp, 120/277 Volt AC
MFR #: EDS150-F3W
UPC: 781381325424
Item #: 163990
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$641.52
each
UNILETS EDS Series 1-Gang 3-Way Tumbler Switch, Voltage Rating: 120 - 277 VAC, Amperage Rating: 20 AMP, Actuator: Front Operated, Enclosure: NEMA 7CD, 9EFG, Mounting: Surface Mount With 1/2 IN Dead-End Hub, HP Rating: 1 HP At 120 VAC, 2 HP At 240 VAC, Material: Malleable Iron Body, Nylon 6/6 Handle, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Height: 4.63 IN, Width: 3 IN, Depth: 4.69 IN, Standard: UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Group B, As Well As Class I, Groups C And D, Class II, Groups E, F, G, And Class III, For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present
Manuals and Documentation
- Catalog Number
- EDS150-F3W
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Sub Brand
- UNILETS
- Country of Origin
- Mexico
- Made in USA
- No
- Amperage Rating
- 20
- Application
- For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present
- Enclosure
- NEMA 7CD, 9EFG
- Mounting
- Surface
- Special Features
- Corrosion resistant, pad lockable in the on or off position; Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure; Stainless steel hex head cap screws for attaching cover to mounting enclosure; Each handle has close-tolerance threaded stainless steel shaft to meet explosionproof requirements; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads; On/off legend marking
- Standard
- UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Group B, As Well As Class I, Groups C And D, Class II, Groups E, F, G, And Class III
- UPC
- 781381325424
- GTIN
- 00781381325424
- Item Type
- EDS Series 1-Gang 3-Way Tumbler Switch
- Voltage Rating
- 120 - 277
