RXM2AB2BDPVS Miniature Miniature Relay, 12 A, 2CO 2 Form C contact
- MFR #:
- RXM2AB2BDPVS
- Item #:
- 1639721
RXM2AB2BDPVS Miniature Miniature Relay, 12 A, 2CO 2 Form C contact
- MFR #:
- RXM2AB2BDPVS
- Item #:
- 1639721
Product Details

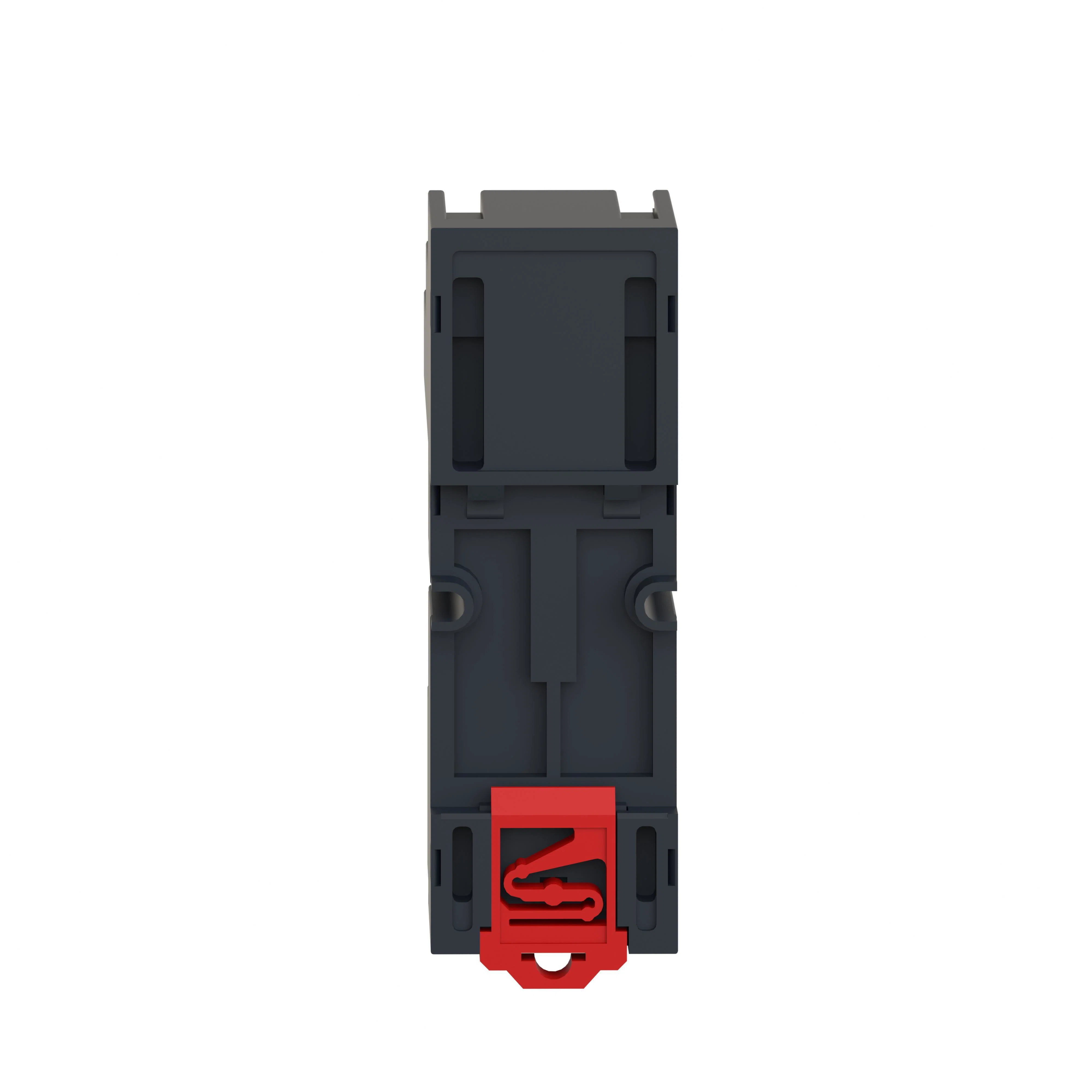

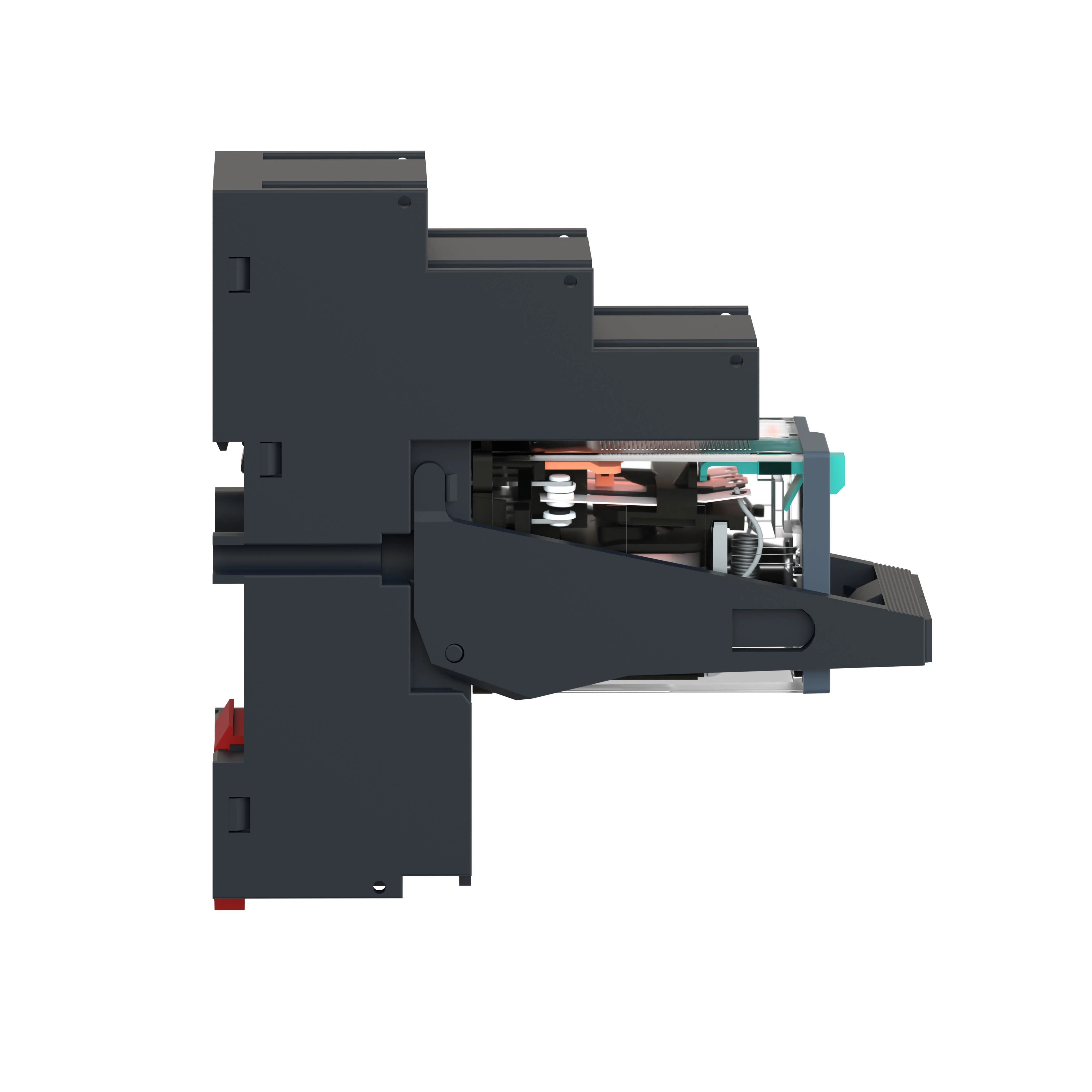

This miniature Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and legend. This is a 12A, 24Vdc, 2 CO miniature mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. It also offers one-step lockable test button and LED indicator. The miniature relay socket connection is by screw connector type. This pre-assembled relay weighs 0.101Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. It is sold in lots of 30. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A) or 4 CO (6A) contacts.
Manuals and Documentation
Features
- Fit to customer needs, coverage of most general control panel applications
- Easy to select, simple selection and wide availability
- Convenient to use, easy status readiness with mechanical indicator and LED, one-step lockable test button
- Compliant with industrial standard and eco-design
- High performance ensuring machine and system availability
Specifications
Identifiers
| Manufacturer Part Number |
RXM2AB2BDPVS
|
|---|
| EAN |
3606489563240
|
|---|
General Information
| Manufacturer |
Schneider Electric
|
|---|---|
| Brand |
Schneider Electric
|
| Country Of Origin |
ID
|
| Warranty |
18 Months
|
|---|---|
| Standards Approvals |
UL 508EN/IEC 61810-1CSA C22.2 No 14IEC 61984 | PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov | CE | UL Listed | CSAEACLloyd's
|
| Application |
For both simple and complex automation systems and available with 2 CO
|
Technical Information
| Amperage Rating |
12 A
|
|---|---|
| Contact Form |
2CO 2 Form C
|
| Enclosure Type |
IP20
|
| Mounting Type |
Plug-In
|
| Series |
Miniature
|
|---|---|
| Temperature Rating |
-40 to 131 deg F
|
| Type |
Miniature Relay
|
