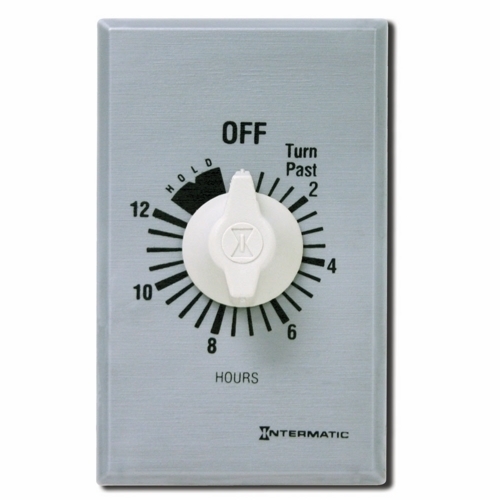

Spring Wound Countdown Timer, Commercial, 125-277 VAC, 50/60 Hz, SPST, 12 Hour Max, With Hold, Silver
MFR: Intermatic
MFR #: FF12HHC
UPC: 078275005266
Item #: 161238
Spring Wound Countdown Timer, Commercial, 125-277 VAC, 50/60 Hz, SPST, 12 Hour Max, With Hold, Silver
MFR #: FF12HHC
UPC: 078275005266
Item #: 161238
Availability
| Location | Available Qty |
|---|---|
| Available | 14 |
$57.49
each
The FF Series Commercial Countdown Timers are designed to replace any standard wall switch and do not require electricity to operate. These energy-efficient switches automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads. A commercial "brushed metal" look plate (plastic construction) meets NEC requirements. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
Manuals and Documentation
- Catalog Number
- FF12HHC
- Manufacturer
- Intermatic
- Brand
- Intermatic
- Country of Origin
- Tunisia
- Made in USA
- No
- Action
- 1 x SPST
- Amperage Rating
- 15
- Application
- Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
- Connection
- Teeter Type
- Contact Configuration
- 1 NO
- Contact Rating
- 7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive)
- Mounting
- Wall
- Number of Poles
- 1
- Special Features
- Features: Energy-Efficient Mechanical Timers do not require Electricity to Operate, Automatically Limit the ON Times, Hold Feature Enables User to Override the Automatic Shut-Off Function, Rugged Time Dial Plate Easily withstands the Abuse Encountered in Commercial Environments, Commercial "Brushed Metal" (Plastic Construction) look meets NEC Requirements, Press-On Knob Design Ensures Quick and Easy Installation, CFL Compatible, Provide Direct Replacement of a Standard Wall Switch in a Single Gang 2-1/2 IN Deep Junction Boxes, Spiral Time Scale to Provide Easy Selection of the Time Setting, Standard Industry Accepted Molded Plate and Knob, Secure Teeter-Type Terminal, 1 Year Warranty
- Standard
- cCSAus Certified, UL Listed, UL Recognized, HVACR, NEC
- UPC
- 078275005266
- GTIN
- 00078275005266
- Item Type
- Commercial Spring Wound Auto-Off
- Size
- 2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
- Timing Range
- 12 HR
- Voltage Rating
- 125 - 277
