WAGO WAGO Corporation

750-602 750, 24 V DC Input

MFR #:
750-602
Item #:
160865
$41.48 each
Product Details

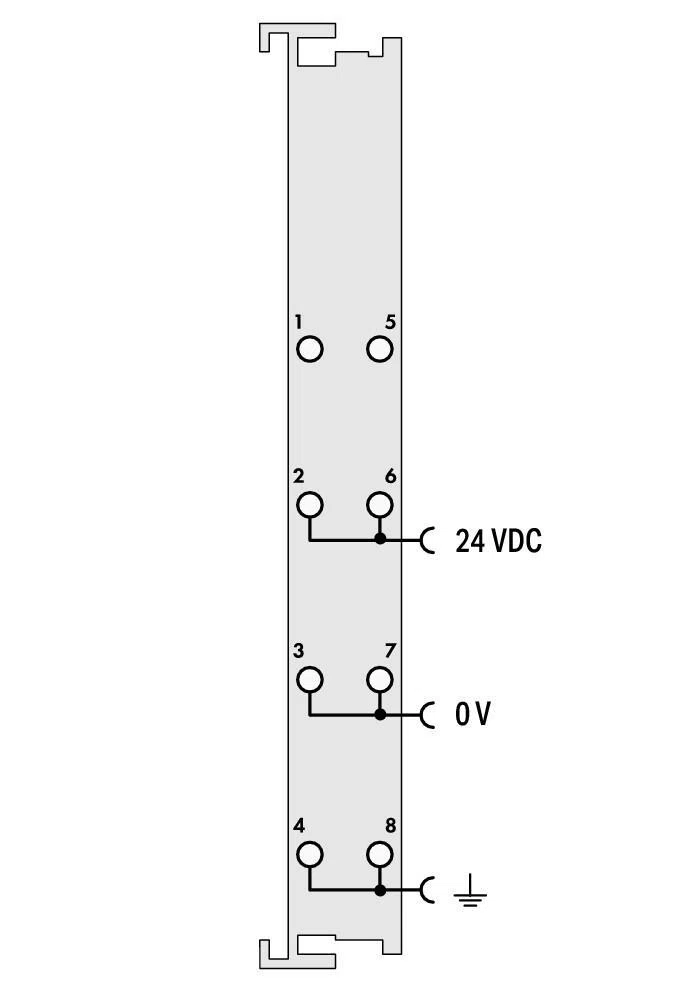

Power Supply; 24 VDC This supply module provides the I/O modules with the corresponding supply potential. The maximum current provided by the supply module is 10 A. When configuring the system, the total current must not be exceeded. Should higher currents be necessary, an intermediate supply module must be added to the assembly.

Manuals and Documentation

Specifications

Identifiers

Identifiers
Manufacturer Part Number
750-602
Identifiers
EAN
4045454393731

General Information

General Information
Manufacturer
WAGO Corporation
Brand
WAGO
General Information
Standards Approvals
RoHS Compliant,With Exemption | IP20 | IEC 60068-2-6 | IEC 60068-2-27 | EN 61000-6-2 | IEC 60068-2-42 | IEC 60068-2-43 | IEC 61131-2
Application
For marine applications

Dimensions

Dimensions
Dimensions
3.937 in H x 0.472 in W x 2.748 in D

Technical Information

Technical Information
Color
Light Gray
Input Voltage
24 V DC
Technical Information
Series
750
Specifications
0.08 to 2.5 mm Fine Stranded Conductor, 0.08 to 9 mm Stripping Length, 0.33 in Stripping Length
