Square D™ Schneider Electric

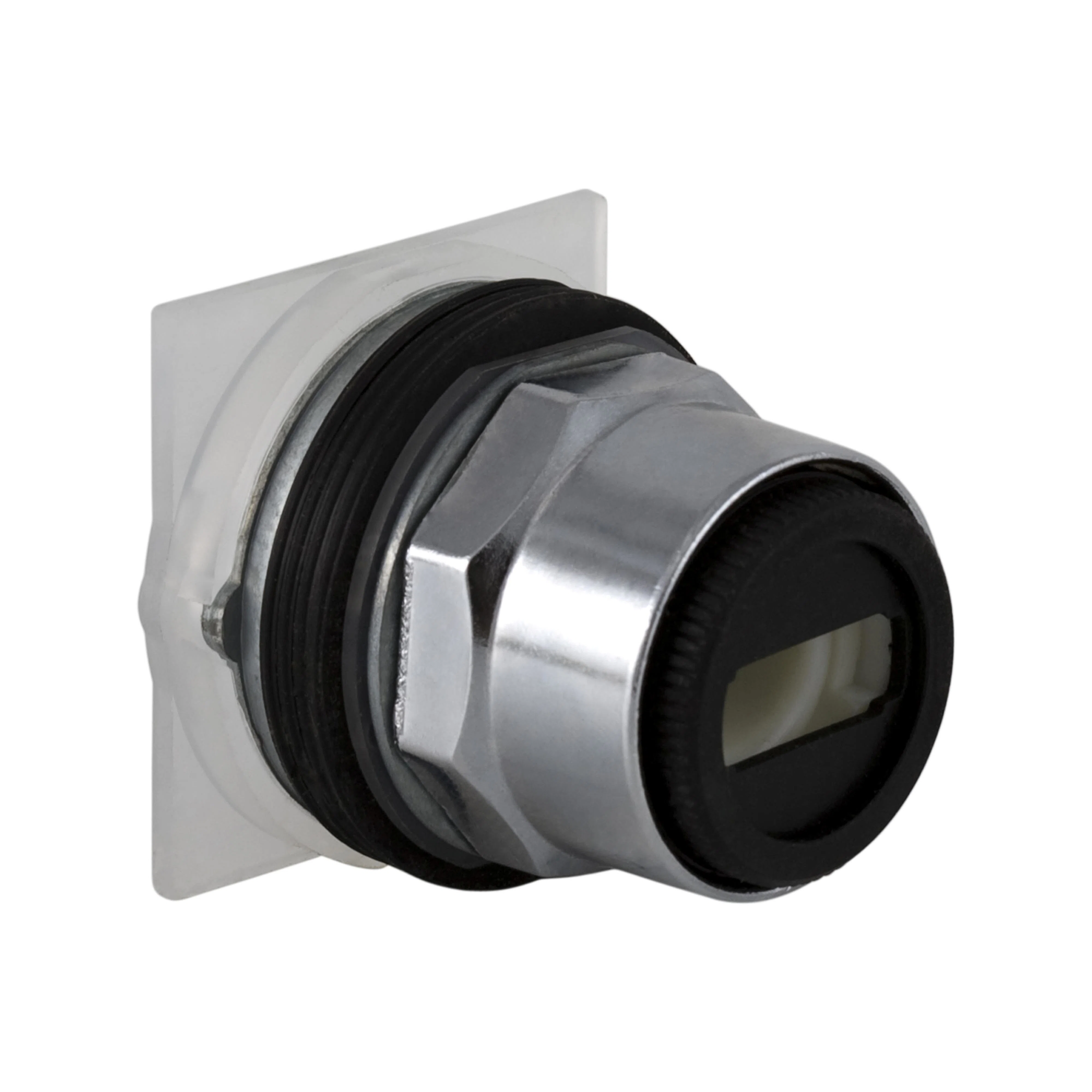

9001K53J1 Harmony Illuminated Selector Switch Operator, 30 mm, 3 Positions

MFR #:
9001K53J1
UPC:
785901028666
Item #:
159426
$369.20 each
Product Details

Square D™ Harmony™ Illuminated Selector Switch Operator, Series: 9001K, 30 mm Size, 3 Positions, Both Sides To Centre Spring Return Throw, Incandescent Lamp, 110 to 120 V AC 50/60 Hz, NEMA 1/2/3/3R/4/6/12/13/IP66 Enclosure, Screw Clamp Terminal, Panel Mounting, Bezel/Housing: Chromium Plated Metal, -25 to 70 deg C

Manuals and Documentation

Features

  • This robust range offers long-term reliability in heavy duty industrial applications and extreme environments
  • Simple and easy installation reduces commissioning time
  • Flexible, compact and modular, it enables you to build the right operator to meet your requirements
  • Without contact block and knob

Specifications

Identifiers

Identifiers
Manufacturer Part Number
9001K53J1
GTIN
00785901028666
Identifiers
UPC
785901028666
EAN
0785901028666

General Information

General Information
Manufacturer
Schneider Electric
Brand
Square D™
Country Of Origin
MX
General Information
Warranty
18 months
Standards Approvals
CE Certified | CSA C22.2 File No 14 | CSA LR24590 | Class 3211-03 | EN/IEC 60947-1 | EN/IEC 60947-5-1 | EN/IEC 60947-5-4 | Green Premium™ | JIS C 4520 | JIS C 852 | RoHS Compliant | UL E42259 | CCN | NKCR | UL 508 | PROP65: This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Application
For automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy

Dimensions

Dimensions
Size
30 mm

Technical Information

Technical Information
Bezel Housing
Chromium Plated Metal
Enclosure Type
NEMA 1/2/3/3R/4/6/12/13/IP66
Lamp Type
Incandescent
Mounting Type
Panel
Number Of Positions
3
Technical Information
Series
9001K
Temperature Rating
-25 to 70 deg C
Terminal Type
Screw Clamp
Throw
Both Sides To Centre Spring Return
Voltage Rating
110 to 120 V AC 50/60 Hz
