Southwire®
Southwire Company

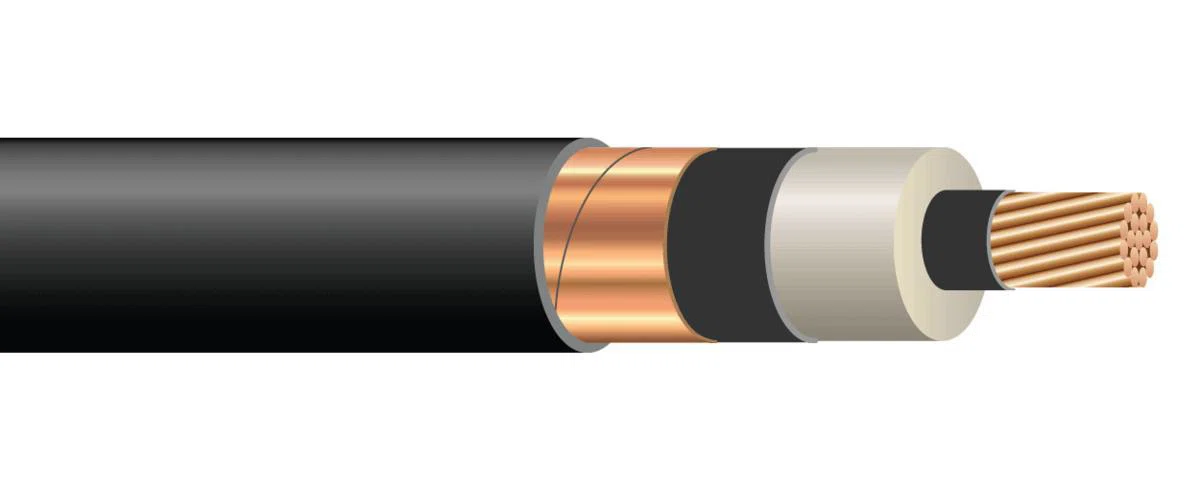

64461499 MV-105 Control Cable, Reel Packaging, (1) Conductors 1/0 AWG Conductor Bare Stranded Copper Conductor
- MFR #:
- 64461499
- Item #:
- 1572349
Product Details
Southwire®, 64461499, Control Cable, MV-105, Reel Packaging, 200/215 A, 1 Conductors, Bare Stranded Copper Conductor, 1/0 AWG Conductor, 1280 mil OD, 19 Strands, 0.128 Ohm Resistance, NL-EPR Insulation, PVC Jacket, Black Jacket, 90 deg C
Manuals and Documentation
Features
- Southwire's 25KV cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, and where su- perior electrical properties are desired
- These cables are capable of operating continuously at the conductor temperature not in excess of 105 deg C for normal operation, 140 deg C for emergency overload, and 250 deg C for short circuit conditions
- Rated at -35 deg C for cold bend
- ST1 (low smoke) Rated for sizes 1/0 and larger
- PVC jacket is made with SIM technology and has a coefficient of friction COF of 0.2
- Cable can be installed in conduit without the aid of lubrication
- Rated for 1000 lbs/FT maximum sidewall pressure
Specifications
Identifiers
| Manufacturer Part Number |
64461499
|
|---|
General Information
| Manufacturer |
Southwire Company
|
|---|---|
| Brand |
Southwire®
|
| Country Of Origin |
US
|
| Warranty |
1 Year
|
|---|---|
| Standards Approvals |
UL Listed | CSA Certified
|
| Application |
Suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial and where superior electrical properties are desired
|
Technical Information
| Amperage Rating |
200/215 A
|
|---|---|
| Conductor Size |
1/0 AWG
|
| Conductor Type |
Bare Stranded Copper
|
| Insulation Material |
NL-EPR
|
| Jacket Color |
Black
|
| Jacket Material |
PVC
|
| Number Of Conductors |
1
|
| Outside Diameter |
1280 mil
|
|---|---|
| Packaging Type |
Reel
|
| Resistance |
0.128 Ohm
|
| Strands |
19
|
| Temperature Rating |
90 deg C
|
| Type |
MV-105
|
