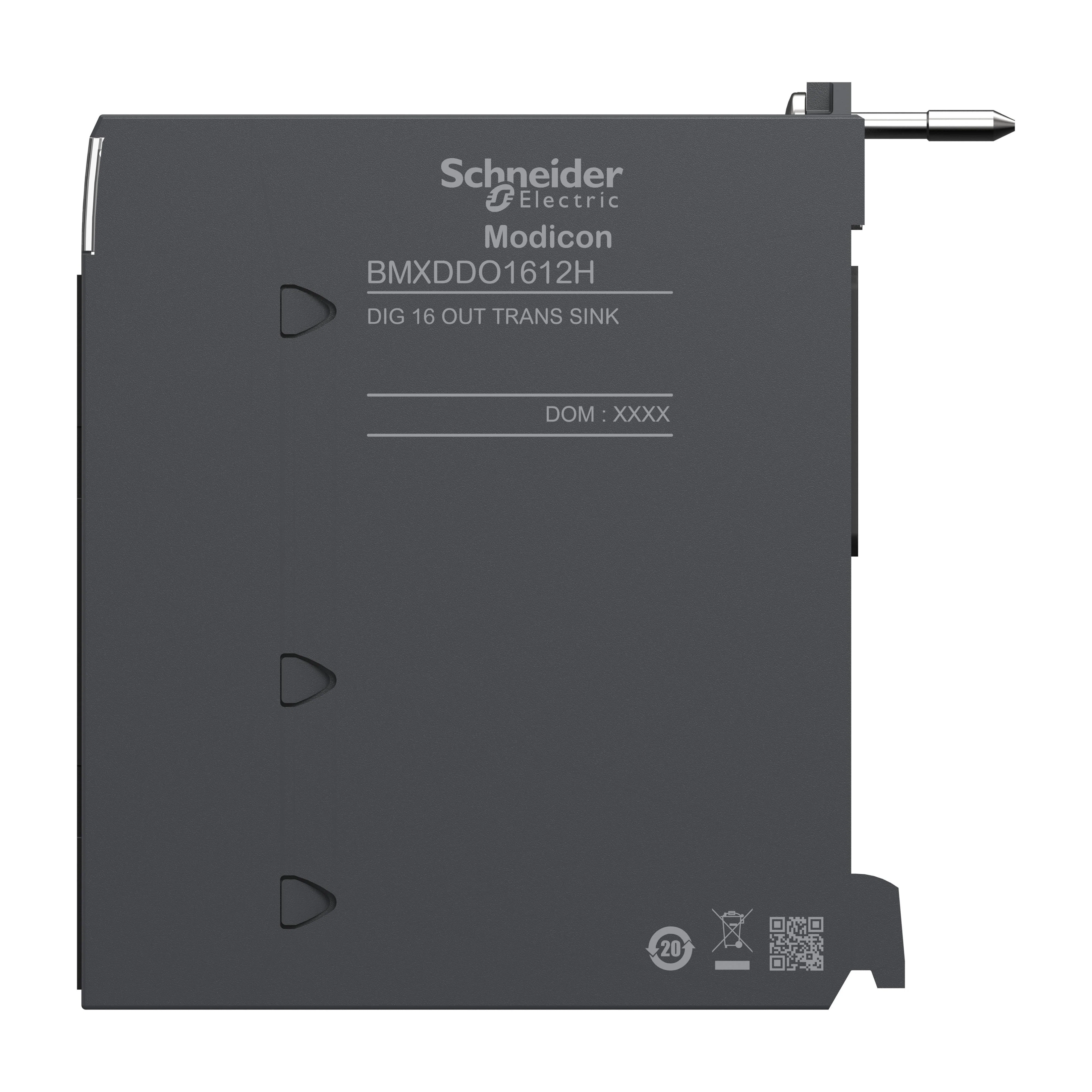

BMXDDO1612H BMX Discrete Output Module, 16 outputs
- MFR #:
- BMXDDO1612H
- Item #:
- 1542584
BMXDDO1612H BMX Discrete Output Module, 16 outputs
- MFR #:
- BMXDDO1612H
- Item #:
- 1542584
Product Details
This discrete transistor output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 16 output channels and it is supplied with 24V DC (negative). This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 489617 hours of MTBF. This discrete module has a weight of 0.120kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
Manuals and Documentation
Features
- Cost-effective modernization and migration
- Reduce time to market
- Process efficiency
- Easy Maintenance
- Reliability and robustness
Specifications
Identifiers
| Manufacturer Part Number |
BMXDDO1612H
|
|---|
| EAN |
3595864027401
|
|---|
General Information
| Manufacturer |
Schneider Electric
|
|---|---|
| Brand |
Schneider Electric
|
| Country Of Origin |
FR
|
| Warranty |
18 months
|
|---|---|
| Standards Approvals |
PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|
| Application |
For severe environments
|
Technical Information
| Amperage Rating |
0.625 A
|
|---|---|
| Number Of Outputs |
16
|
| Power Rating |
2.26
|
| Series |
BMX
|
| Temperature Rating |
-13 to 158 deg F
|
|---|---|
| Type |
Discrete Output Module
|
| Voltage Rating |
24 to 30 V DC
|
