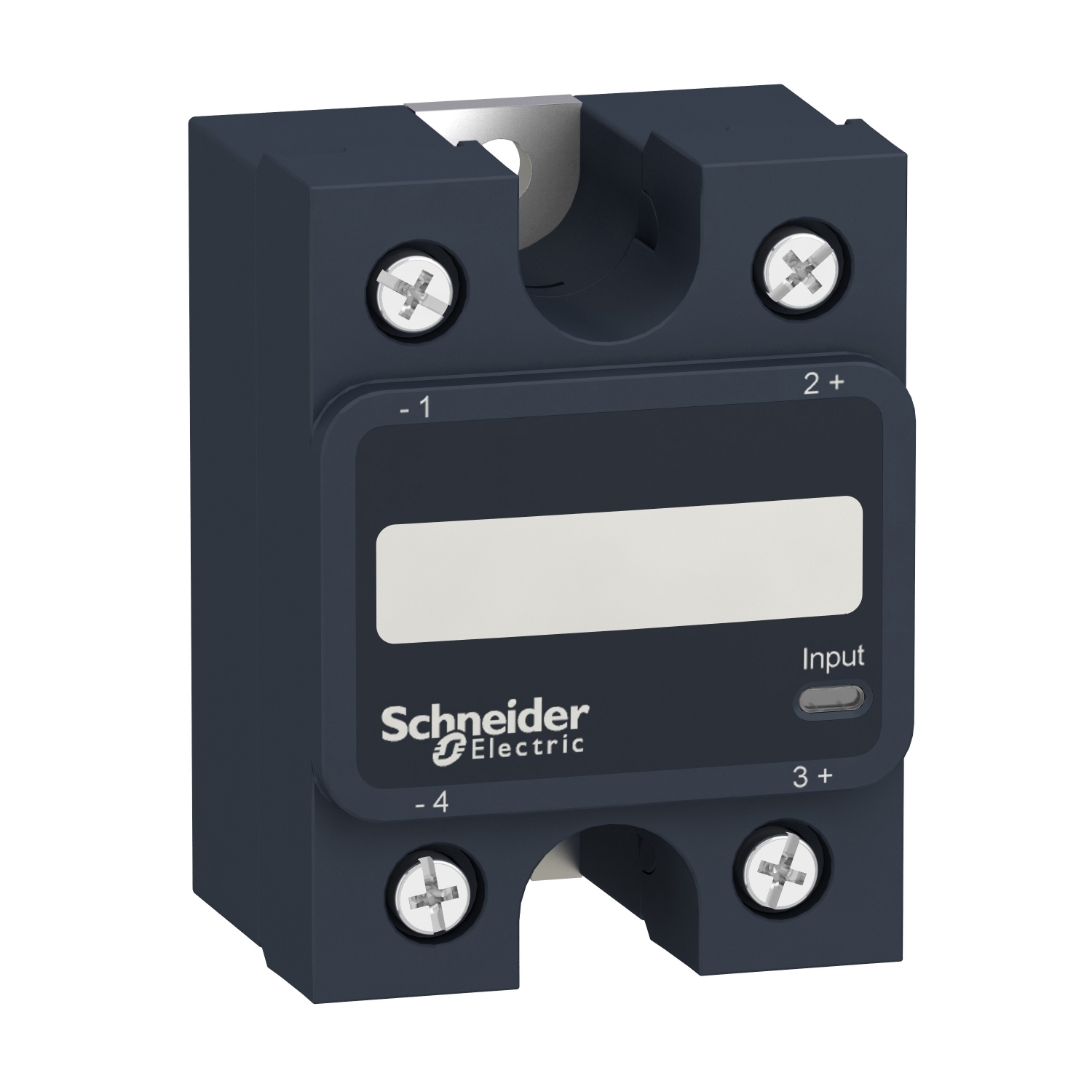

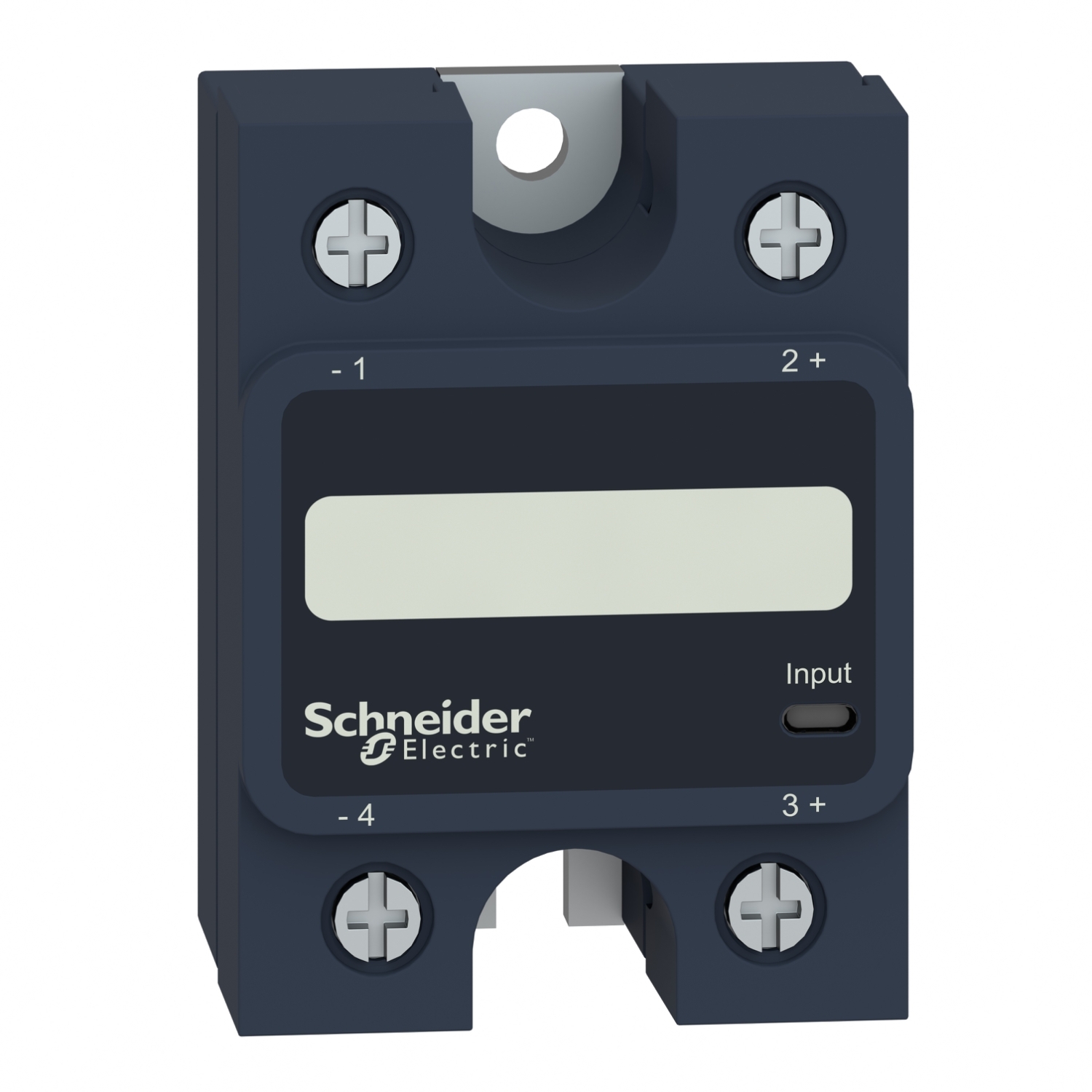

single phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 90 to 280V AC, output 24 to 300V AC
MFR: Schneider Electric
MFR #: SSP1A150M7T
Item #: 1535438
single phase relay, Harmony Solid State Relays, 50A, panel mount, zero voltage switching, thermal pad, input 90 to 280V AC, output 24 to 300V AC
MFR #: SSP1A150M7T
Item #: 1535438
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$45.62
each
This Harmony SSP solid state panel mount single-phase relay is rated 50A, is controlled with a 90V to 280V AC input, has a rated load voltage of 24V to 300V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0
Manuals and Documentation
- Catalog Number
- SSP1A150M7T
- Manufacturer
- Schneider Electric
- Brand
- Schneider Electric
- Country of Origin
- Mexico
- Made in USA
- No
- Connection
- Screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input;screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output;screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input;screw terminals 0.5...8.26 mm², AWG 20...AWG 8) without cable end output;forked type tag connectors 9.2 x 4 mm input;ring lugs 9.2 x 4 mm input;forked type tag connectors 11.7 x 4.5 mm output;ring lugs 11.7 x 4.5 mm output
- Special Features
- LED, green input
- Standard
- IP20
- GTIN
- 03606485442136
- Item Type
- Solid state relay up to 50 A
