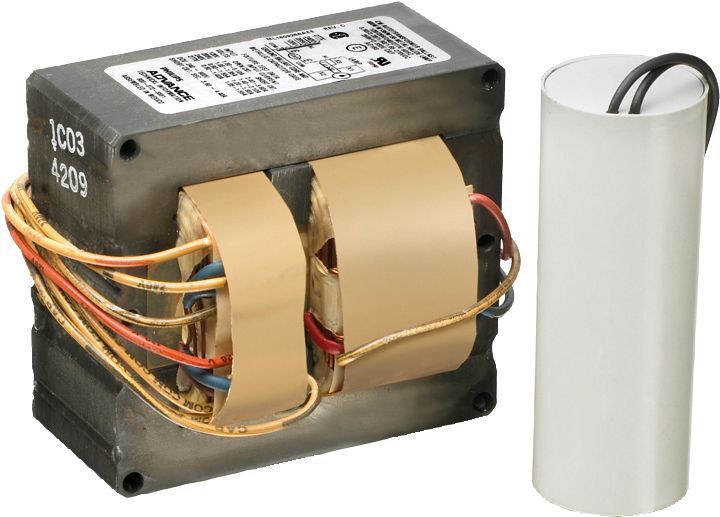

MH BAL 70W M98/143 QUAD KIT
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Reliable performance Vacuum-pressure impregnation is used to re-enforce the electrical insulation of the ballast, preclude moisture, inhibit noise, and dissipate heat;Pre-insulated voltage leads reduce the risk of shock and shrink installation time The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire. The core and coil also forms the nucleus of Philips Advance's five other ballast configurations. Vacuum-pressure impregnated with a silica-filled polyester varnish;All core and coil ballasts below 600W utilize a UL Class H (180C) insulation system;C and C ballasts 600W and higher utilize a UL Class N (200C) insulation system;Pre-insulated voltage leads;Ballast kits supplied with pre-wired ignitor High bay retail, manufacturing, gymnasiums, warehouses, parking structures, outdoor
Manuals and Documentation
- Catalog Number
- 514794
- Manufacturer
- Signify Electronics
- Brand
- ADVANCE
- Country of Origin
- China
- Made in USA
- No
- Application
- Lighting Luminaire Component
- Dimmable
- No
- Frequency Rating
- 60 HZ
- Lamp Type
- METAL HALIDE
- Power Rating
- 70 W
- Special Features
- Suitable for Outdoor; UL Listed, CSA, RoHS
- Standard
- ULR;CSA certificate;RoHS Compliant
- UPC
- 781087050729
- GTIN
- 00781087050729
- Item Type
- Magnetic HID
- Length
- 0.16
- Length UOM
- Inch
- Width
- 1.1
- Width UOM
- Inch
- Height
- 11.34
- Height UOM
- Inch
- Weight
- 5.51 LB
- Thermal Protection
- CLASS P
- Voltage Rating
- 120/208/240/277
- Wattage
- 70 W
- Power Factor
- 0.90
