Product Details

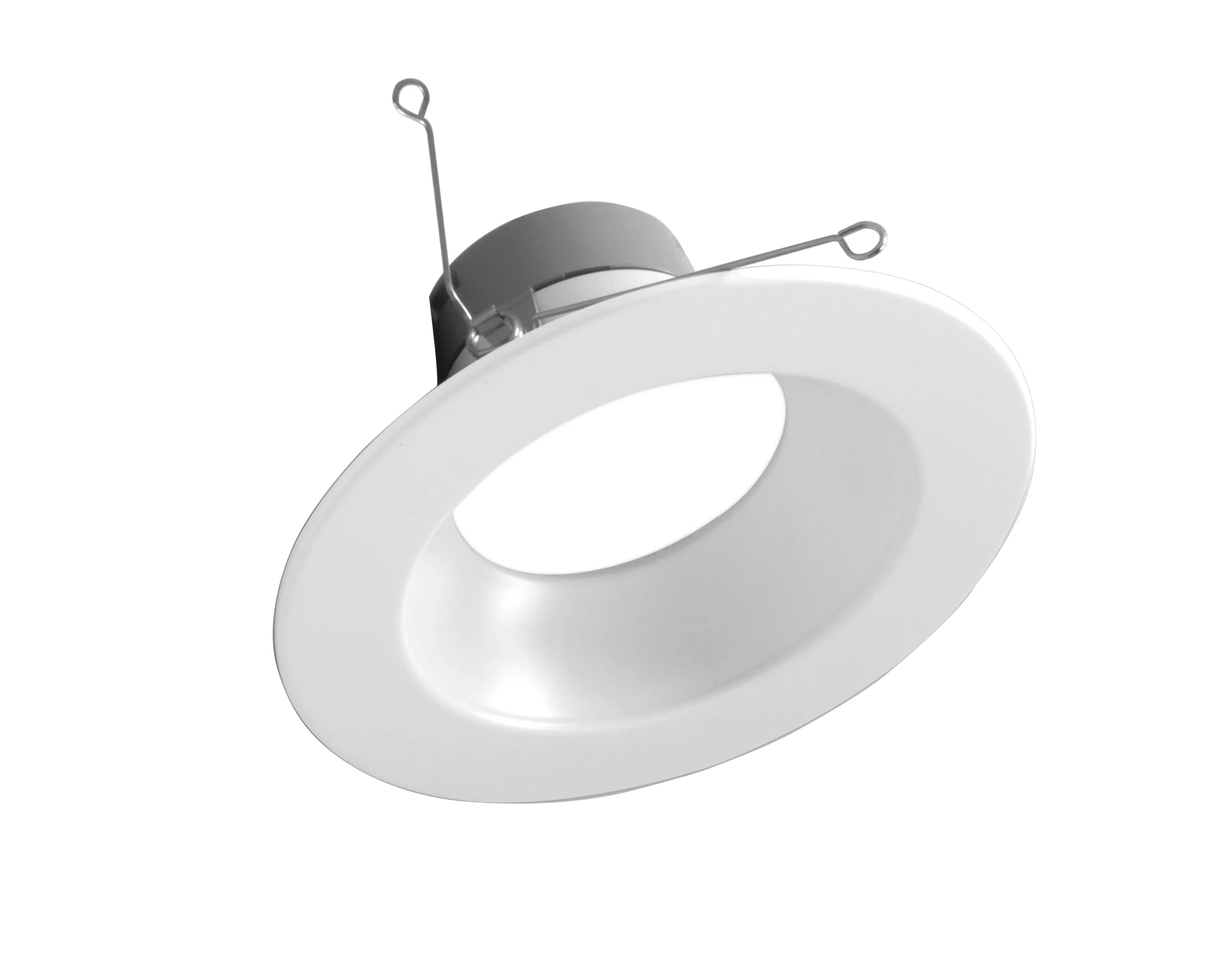

The DLRv6 is the newest generation of NICOR retrofit downlight, now in Single CCT and Selectable CCT models. The DLRv6 from NICOR is a 4” or 5”/6” recessed LED downlight that is ideal for new construction using standard housings or the patented new-construction frame, or as a retrofit into most 4”, 5”, or 6” housings. Improved to meet the newest certification standards, the DLR series is over 80 LPW, 90+ CRI, and R9 greater than 50. The DLR Single CCT is available in 3000K. With a micro-switch on the driver cap, the DLR Select offers the ability to adjust the CCT to 2700, 3000, 3500, 4000, or 5000K. The DLRv6 system of the downlight combined with the frame provides the lowest overall system cost for energy efficient, high-quality lighting.
Specifications
Identifiers
| Manufacturer Part Number |
DLR56609120SWH
|
|---|
| UPC |
767706187304
|
|---|
General Information
| Manufacturer |
Nicor
|
|---|---|
| Brand |
Nicor
|
| Warranty |
5-year limited system warranty
Warranty does not cover product failure due to an overvoltage event (power surge)
For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
|
|---|
Dimensions
| Depth |
3.5 IN
|
|---|---|
| Width |
7.4 IN
|
| Size |
5/6
|
|---|
Technical Information
| Color |
White
|
|---|---|
| Color Rendering Index CRI |
94
|
| Color Temperature |
Selectable
|
| Construction |
Powder coated steel trim routes heat away from electrical components
Polymer driver cover for durability
Fully captured V-springs on 6”
Included EVA gasket to conform to AirTight rating when used with AT housing or DLR56-5-FRAME
|
| Dimmable |
Yes
|
| Finish |
Powder Coat
|
| Input Voltage |
Compatible with patented DLR56v5 frame
Compatible with most 5” & 6” recessed housings
Quick and easy installation with an IDEAL luminaire connector and torsion spring mounting system
Ships with Edison base socket string (GU24 socket string available)
|
|---|---|
| Material |
Steel
|
| Operating Temperature |
-4°F to 104°F (-20°C to 40°C)
|
| Type |
LED Downlights
|
| Voltage Rating |
120
|
| Wattage |
10.30 (2700K)
10.26 (3000K)
10.04 (3500K)
10.12 (4000K)
10.21 (5000K)
|
