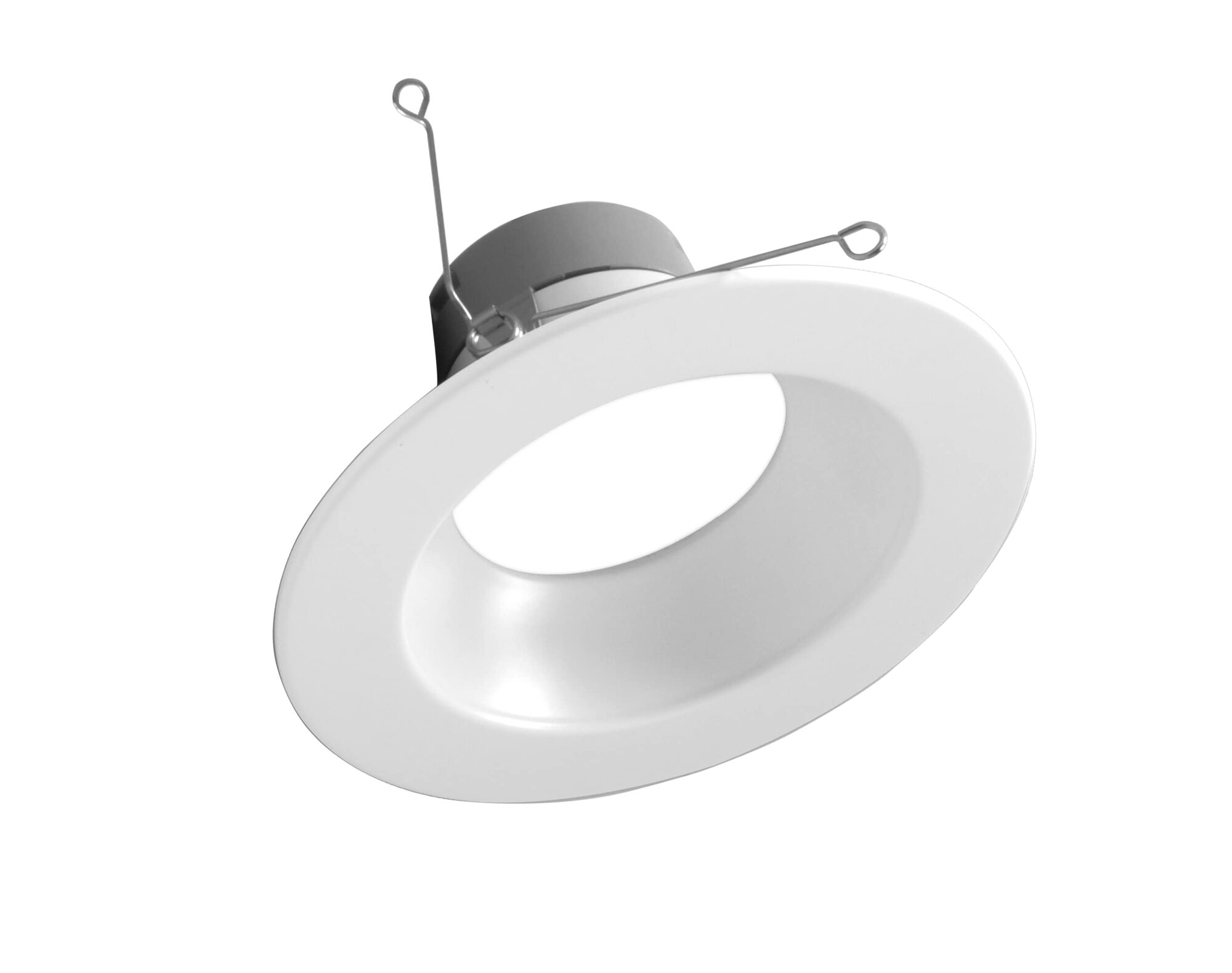

DLR56(v6) 5/6-inch White 900 Lumen Selectable Recessed LED Downlight
DLR56(v6) 5/6-inch White 900 Lumen Selectable Recessed LED Downlight
| Location | Available Qty |
|---|---|
| Available | Available to Order |
The DLRv6 is the newest generation of NICOR retrofit downlight, now in Single CCT and Selectable CCT models. The DLRv6 from NICOR is a 4” or 5”/6” recessed LED downlight that is ideal for new construction using standard housings or the patented new-construction frame, or as a retrofit into most 4”, 5”, or 6” housings. Improved to meet the newest certification standards, the DLR series is over 80 LPW, 90+ CRI, and R9 greater than 50. The DLR Single CCT is available in 3000K. With a micro-switch on the driver cap, the DLR Select offers the ability to adjust the CCT to 2700, 3000, 3500, 4000, or 5000K. The DLRv6 system of the downlight combined with the frame provides the lowest overall system cost for energy efficient, high-quality lighting.
- Catalog Number
- DLR56609120SWH
- Manufacturer
- Nicor Lighting
- Brand
- NICOR Lighting
- Warranty Description
- 5-year limited system warranty Warranty does not cover product failure due to an overvoltage event (power surge) For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
- Color Rendering Index (CRI)
- 94
- Construction
- Powder coated steel trim routes heat away from electrical components Polymer driver cover for durability Fully captured V-springs on 6” Included EVA gasket to conform to AirTight rating when used with AT housing or DLR56-5-FRAME
- Dimmable
- Yes
- Finish
- Powder Coat
- Installation Type
- Compatible with patented DLR56v5 frame Compatible with most 5” & 6” recessed housings Quick and easy installation with an IDEAL luminaire connector and torsion spring mounting system Ships with Edison base socket string (GU24 socket string available)
- Material
- Steel
- Certification Standard Type
- ETL Intertek Classified Airtight (with DLRv5 Frame) IC-Rated CEC Title 20 Compliant Title 24 RoHS Compliant NFPA 70 Compliant FCC Class B ICES-005 Compliant Wet-Location (cETLus 1598)
- UPC
- 767706187304
- Item Type
- LED Downlights
- Width
- 7.4
- Width UOM
- Inch
- Depth
- 3.5
- Depth UOM
- Inch
- Weight
- 0.65
- Weight UOM
- Pounds
- Size
- 5/6
- Operating Temperature
- -4°F to 104°F (-20°C to 40°C)
- Voltage Rating
- 120VAC
- Wattage
- 10.30 (2700K) 10.26 (3000K) 10.04 (3500K) 10.12 (4000K) 10.21 (5000K)
