Intermatic® Intermatic

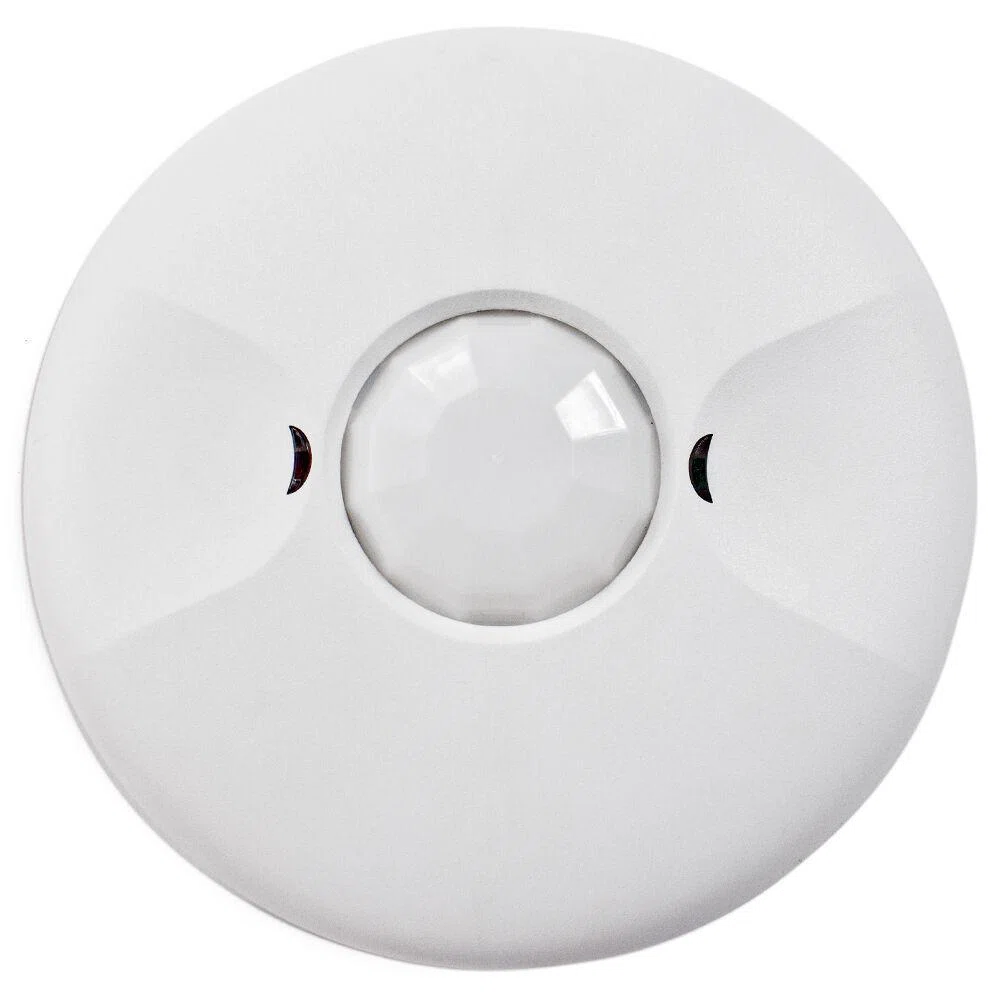

IOS-CMP-LV Low Voltage Occupancy Sensor, 24 V DC, PIR Sensor, 1200 sq-ft Coverage, 360 deg Viewing

MFR #:
IOS-CMP-LV
UPC:
078275139909
Item #:
1487474
$95.88 each
Product Details

The IOS-CMP-LV 360° Passive Infrared (PIR) Low Voltage Occupancy Sensors control lighting systems based on occupancy and ambient light levels. When movement is detected, the sensor turns the lights ON. If no movement is detected for a user-specified or Autoset time of 15 seconds to 30 minutes, the lights are turned OFF. The occupancy sensor provides a 360° coverage pattern, up to 1200 square feet.

Manuals and Documentation

Features

  • Fresnel lens with 360 field of view, 1200 sq ft
  • Adjustable ambient light level detection
  • Optional Walk-through mode for increased energy savings
  • PIR sensing for presence detection

Specifications

Identifiers

Identifiers
Manufacturer Part Number
IOS-CMP-LV
GTIN
00078275139909
Identifiers
UPC
078275139909

General Information

General Information
Manufacturer
Intermatic
Brand
Intermatic®
Country Of Origin
CN
General Information
Warranty
2 Years
Standards Approvals
UL/cUL Listing, ISO9001, California Title 24 Compliant
Application
Commercial, Conference Room, Classroom, Large Open Areas and Breakroom Applications

Dimensions

Dimensions
Dimensions
4.53 in Dia x 1.38 in H

Technical Information

Technical Information
Amperage Rating
9 mA
Color
White
Control Output
ON/OFF
Coverage
1200 sq-ft
Lamp Type
CFL/Fluorescent/Incandescent/LED
Mounting Type
Ceiling
Technical Information
Sensor Type
PIR
Temperature Rating
0 to 55 deg C
Time Delay
15 s to 30 min
Type
Low Voltage
Viewing Angle
360 deg
Voltage Rating
24 V DC
