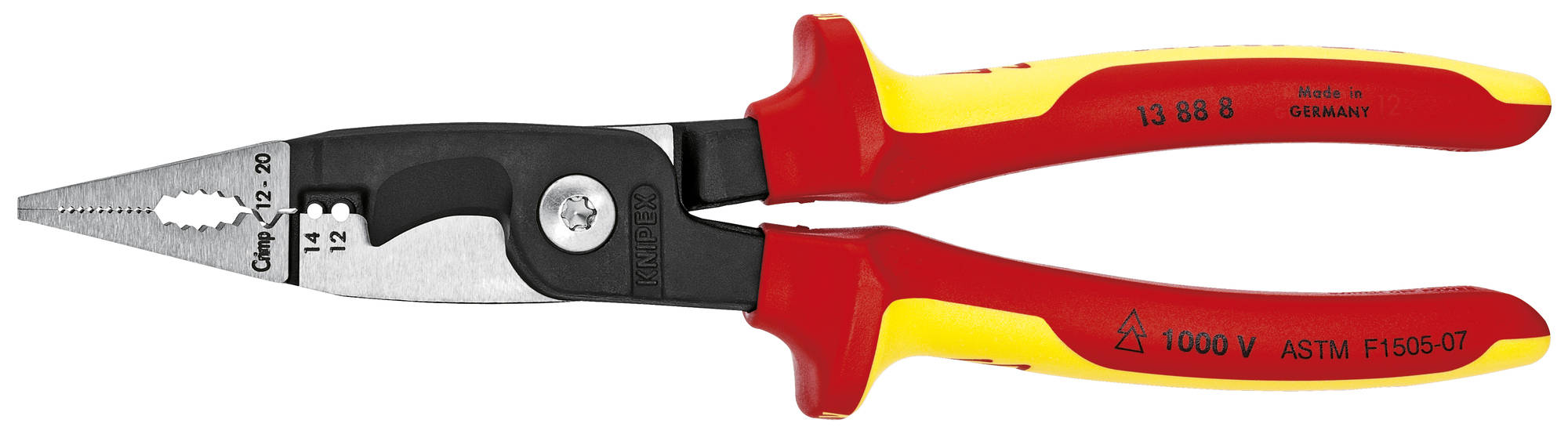

6-in-1 Electrical Installation Pliers 12 and 14 AWG-1000V Insulated, 8 in., Multi-Component, ASTM
6-in-1 Electrical Installation Pliers 12 and 14 AWG-1000V Insulated, 8 in., Multi-Component, ASTM
| Location | Available Qty |
|---|---|
| Available | 2 |
6 functions in one pliers - grips, cuts, strips, bends, crimps and deburrs. Smooth surfaces near the tips grip single conductors without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material. Clear-cut outside edge on the jaw for working on flush-mounted junction boxes and deburring feed-through holes. Stripping holes for 12 to 14 AWG (0.75 – 1.5 mm² and 2.5 mm²). Crimp die for end sleeves (ferrules) 12 to 20 AWG (0.5 – 2.5 mm²). Cable shears with induction hardened precision cutting edges for copper and aluminum cables up to 19/32" dia. (5 x 2.5 mm² / dia. 5 mm). Slim head dimensions for easier access. Bolted joint: precise, zero-backlash operation of pliers. 1000V multi-component grips, ASTM F1505-tested. High-grade special tool steel; forged, multi stage oil-hardened.
Manuals and Documentation
Features
- 6 functions in one pliers - grips, cuts, strips, bends, crimps and deburrs
- Smooth surfaces near the tips grip single conductors without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material
- Clear-cut outside edge on the jaw for working on flush-mounted junction boxes and deburring feed-through holes
- Stripping holes for 12 to 14 AWG (0.75 – 1.5 mm² and 2.5 mm²)
- Crimp die for end sleeves (ferrules) 12 to 20 AWG (0.5 – 2.5 mm²)
- Cable shears with induction hardened precision cutting edges for copper and aluminum cables up to 19/32" dia. (5 x 2.5 mm² / dia. 5 mm)
- Slim head dimensions for easier access
- Bolted joint: precise, zero-backlash operation of pliers
- Catalog Number
- 13 88 8 SBA
- Manufacturer
- KNIPEX Tools
- Brand
- KNIPEX
- Country of Origin
- Germany
- Finish
- Polished
- Material
- High-grade special tool steel, forged, multi stage oil-hardened
- UPC
- 843221012120
- GTIN
- 00843221012120
- Item Type
- Wire Strippers and Dismantling Tools > Wire Strippers
- Length
- 8.25
- Length UOM
- Inch
- Width
- 2.1
- Width UOM
- Inch
- Height
- 1.1
- Height UOM
- Inch
- Weight
- 0.6
- Weight UOM
- Pounds
- Nominal Size
- 8.25
