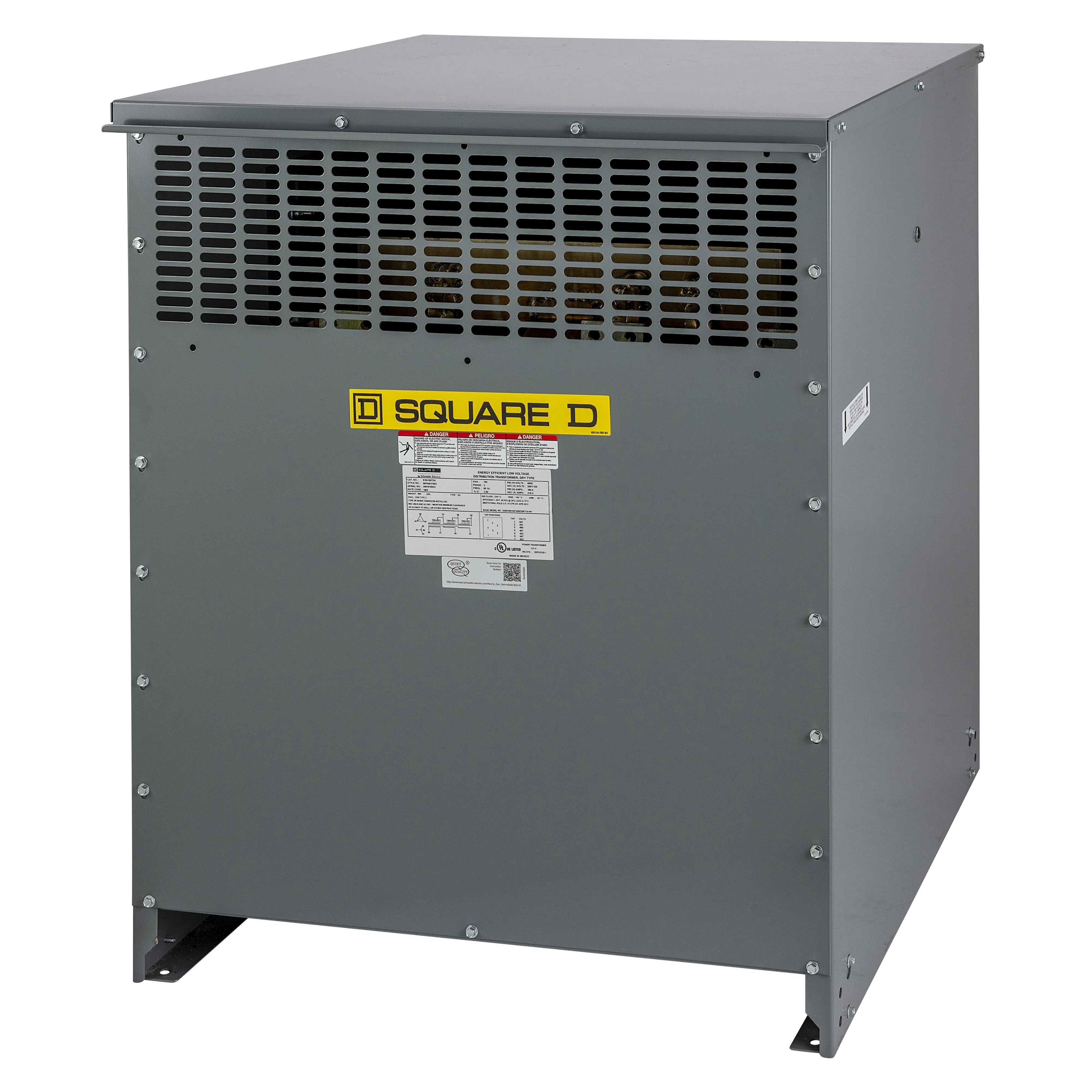

EXN112T65H EXN1 Distribution Transformer

MFR #:
EXN112T65H
UPC:
785901435952
Item #:
1399402
$15,535.82 each
Product Details

EXN three phase low voltage dry type distribution transformers from Square D comply with DOE energy conservation standards and Natural Resources Canada (NRCan) minimum energy efficiency levels. This transformer is a 112.5kVA, 600V primary (three wire), 208Y/120V secondary (four wire) with aluminum windings with a 220 insulation system design for 150 degree C temperature rise. This transformer’s DOE 2016 and NRCan efficiency is a minimum of 98.74% at 35% loading and 75°C temperature. Terminals are designed to accommodate wire ranges sized for 125% of the secondary nameplate current and 250% of the primary nameplate current. The terminals allow for NEMA two hole lugs and wiring bending radius to align with the wire ranges and to allow for side and bottom access. Units are natural air cooled with exhaust vents located on the front only, allowing the transformers to be mounted with rear clearance to obstructions of ½ inch. Units are shipped as Type 2 for indoor installation, field convertible to Type 3R via weathershield for outdoor installation. The transformers are floor mounted but field accessories are available for wall or trapeze (ceiling) mounting. EX transformers have a low sound level, with a minimum of 3dB below NEMA Standard ST-20 requirements. Units are specifically designed to function with other Square D equipment; inrush is coordinated to meet identified breaker trip curves, and IZ levels allow for let through current to match AIR levels of panelboards. See product data sheets for these values.

Manuals and Documentation

Features

  • Space-saving design
  • Terminals sized to handle Square D equipment
  • Bending radius for side and bottom access

Specifications

Identifiers

Identifiers
Manufacturer Part Number
EXN112T65H
GTIN
00785901435952
Identifiers
UPC
785901435952

General Information

General Information
Manufacturer
Schneider Electric
Brand
Square D™
Country Of Origin
CN
General Information
Standards Approvals
ECCN | PROP65 | REACH | WEEE | EAR99 | WARNING: This product can expose you to chemicals including: Phenyl Glycidyl Ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Application
low voltage electrical distribution

Dimensions

Dimensions
Dimensions
37.52 in H x 31.3 in W x 28.43 in D

Technical Information

Technical Information
Frequency Rating
60 Hz
Insulation
150, 220 deg C
Technical Information
Series
EXN1
Type
Distribution Transformer
