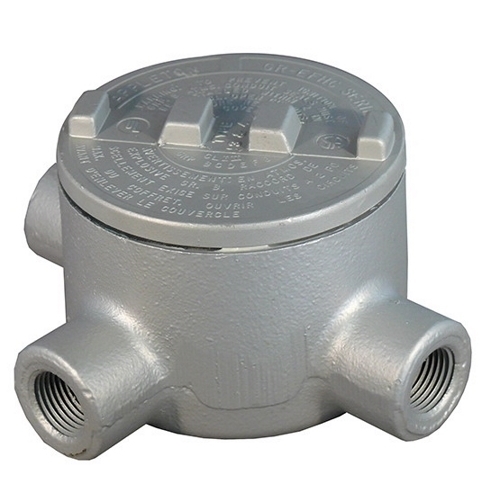

Appleton

GR Type Conduit Outlet Box; 3/4 In Hub

MFR: Appleton Electric
MFR #: GRT75
UPC: 781381444651
Item #: 1395
GR Type Conduit Outlet Box; 3/4 In Hub
Appleton Electric

GR Type Conduit Outlet Box; 3/4 In Hub

MFR #: GRT75
UPC: 781381444651
Item #: 1395
Availability
Location Available Qty
Available 15
$159.38 each

UNILETS Outlet Box, Number Of Outlet: 3, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: (3) 3/4 IN GRT Hub, Cubic Capacity: 18 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Form Number: 1, Height: 3-3/4 IN, Width: 3-3/4 IN, Depth: 2-1

Manuals and Documentation
Catalog Number
GRT75
Manufacturer
Appleton Electric
Brand
Appleton
Sub Brand
UNILETS
Country of Origin
Mexico
Made in USA
No
Application
For Use With Threaded Metal Conduit
Cable Entry
(3) 3/4 IN GRT Hub
Cubic Capacity
18 CU IN
Knockouts
No
Material
Malleable Iron
Special Features
Explosionproof, dust-ignitionproof; Malleable iron bodies have high tensile strength, ductility and provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with copperfree (4/10 of 1 PCT maximum) aluminum cover; Function as sealing fittings when used with sealing covers; Internally threaded body with externally threaded cover; Covers have pry notches for bar or wrench; Accommodate sealing, dome, hub and union hub covers and canopies; Standard O-rings provide raintight fit NEMA 3, 4; Internal ground screw standard; Smooth rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance
Standard
Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class III
RoHS Indicator
Contact Manufacturer
UPC
781381444651
GTIN
00781381444651
Item Type
Outlet Box
Length
5.0000
Length UOM
Inch
Width
5.0000
Width UOM
Inch
Height
4.5000
Height UOM
Inch
Weight
2.570
Weight UOM
Pounds
Size
3/4
