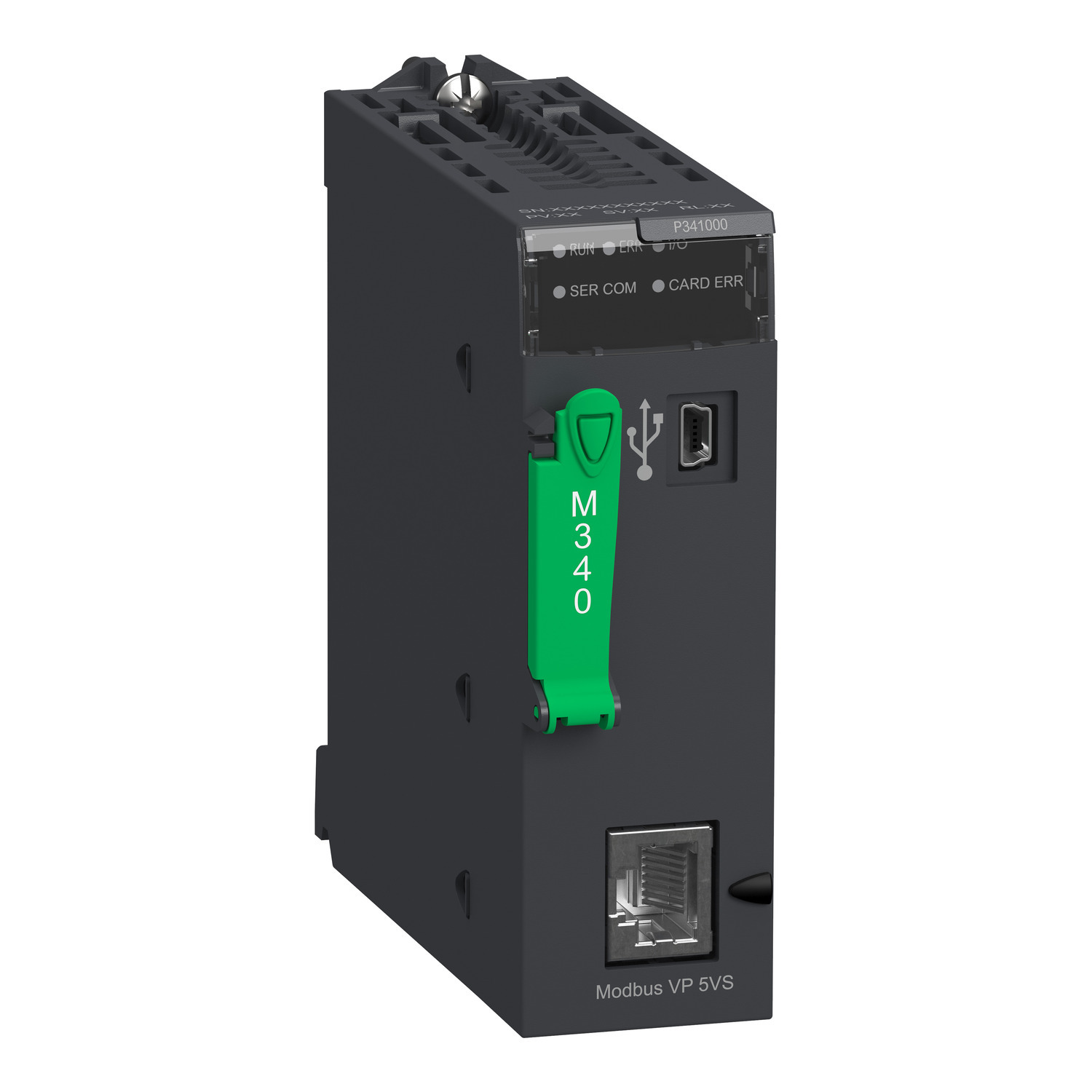

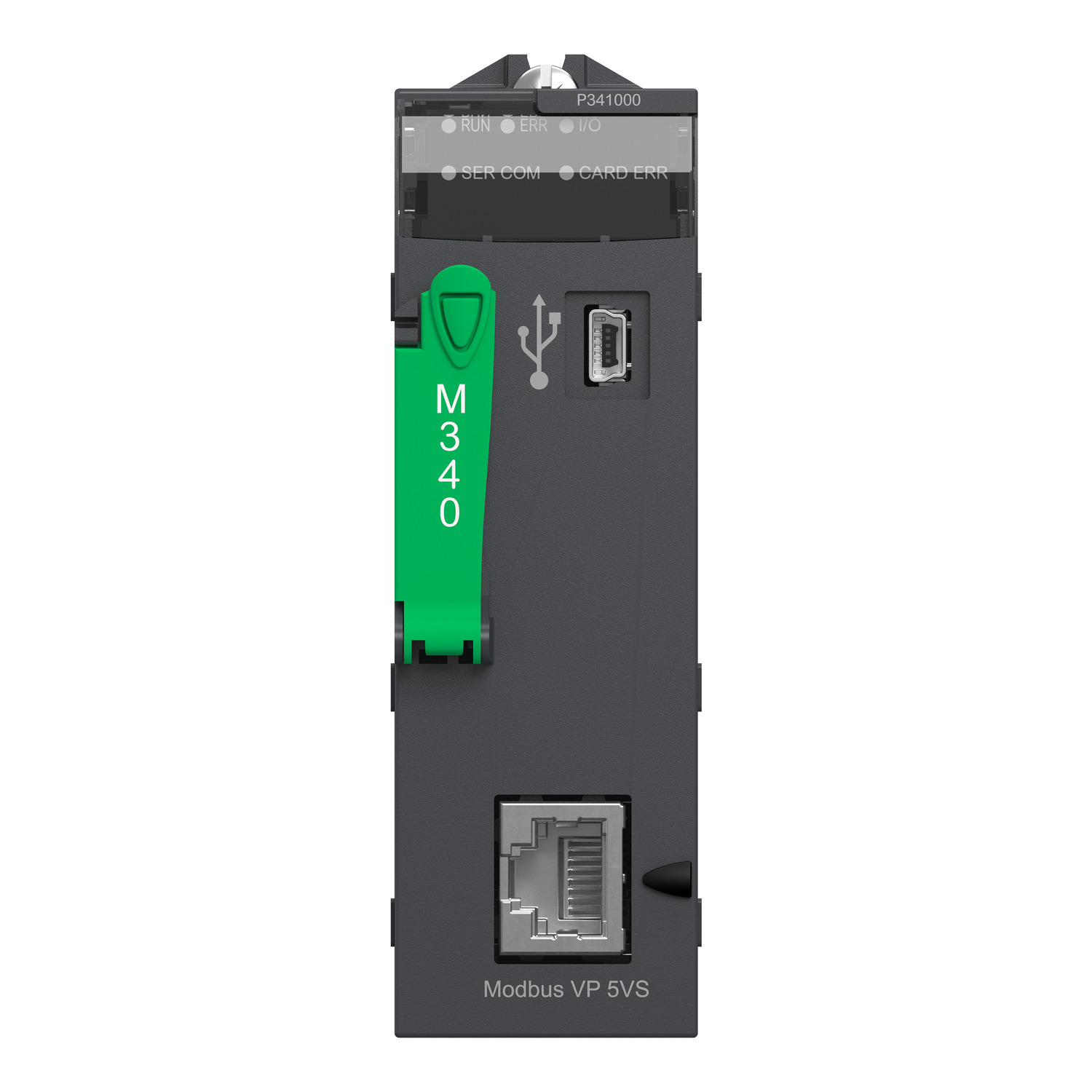

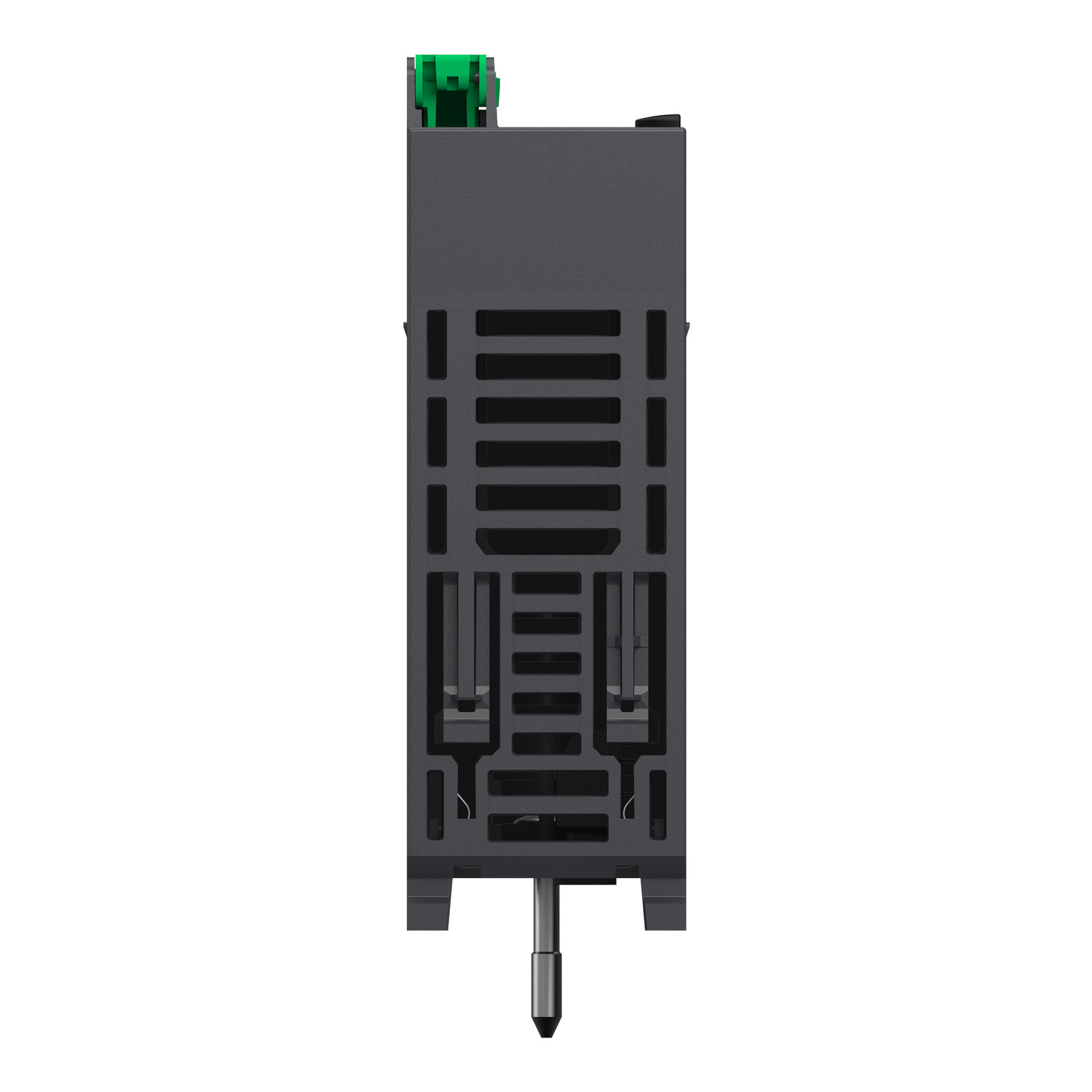

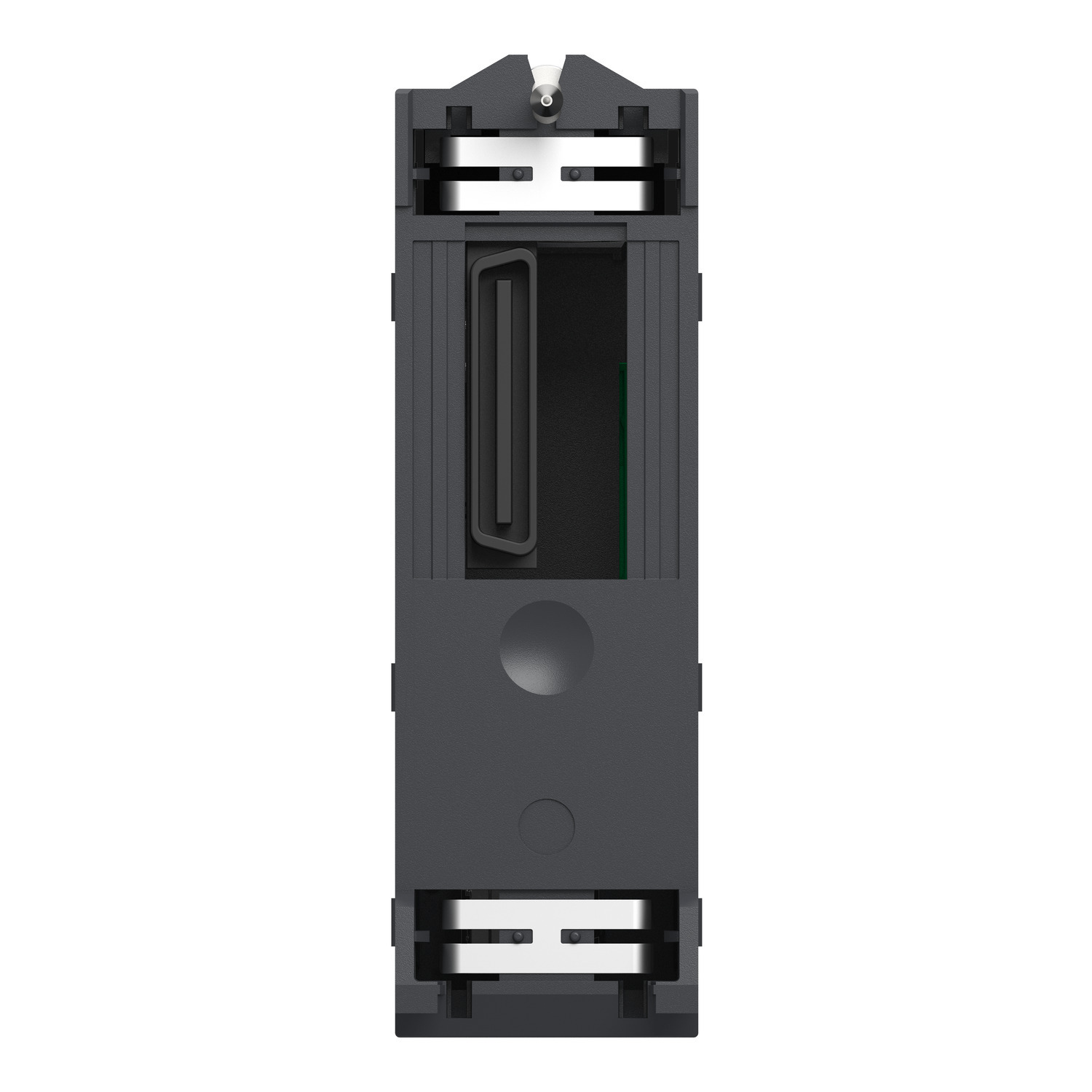

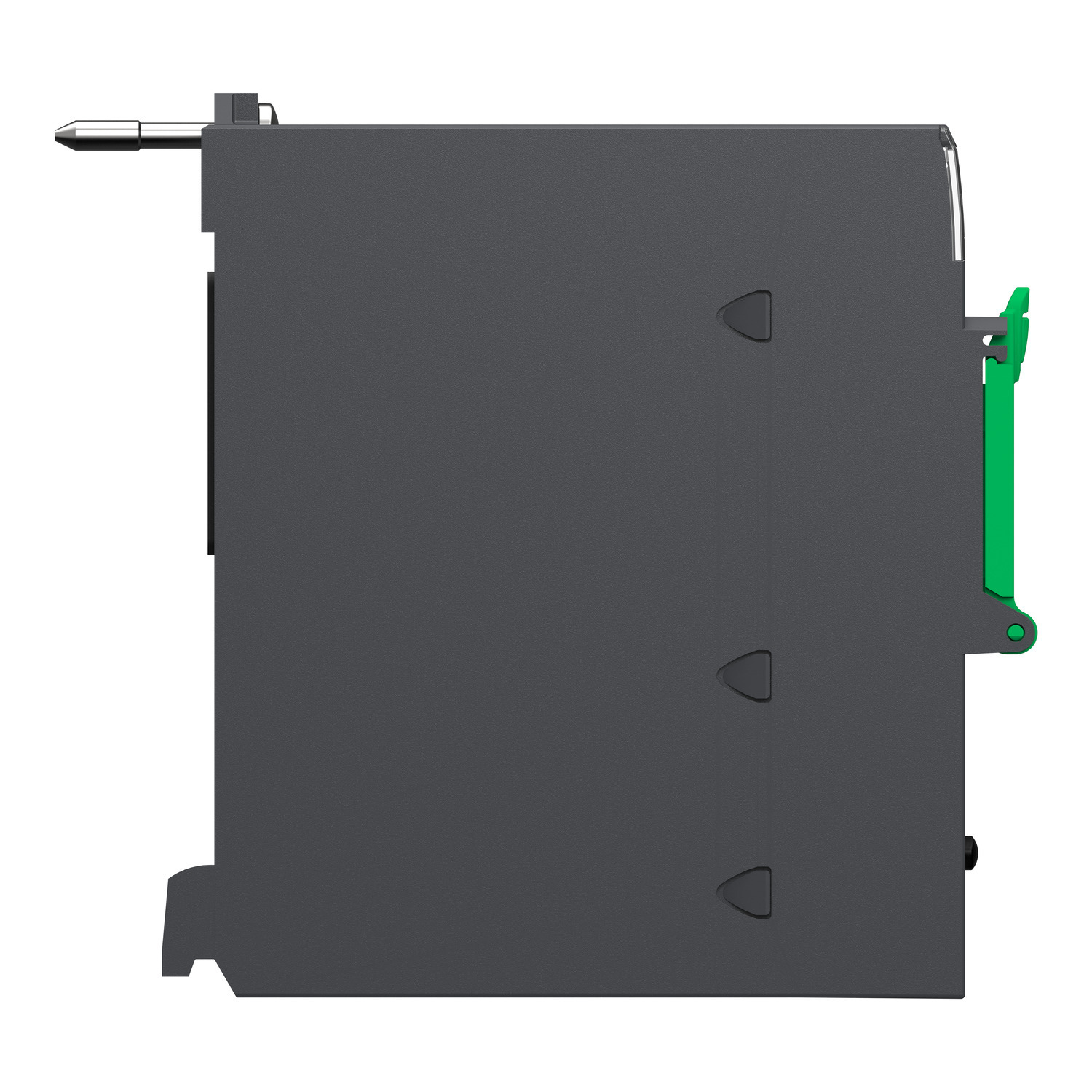

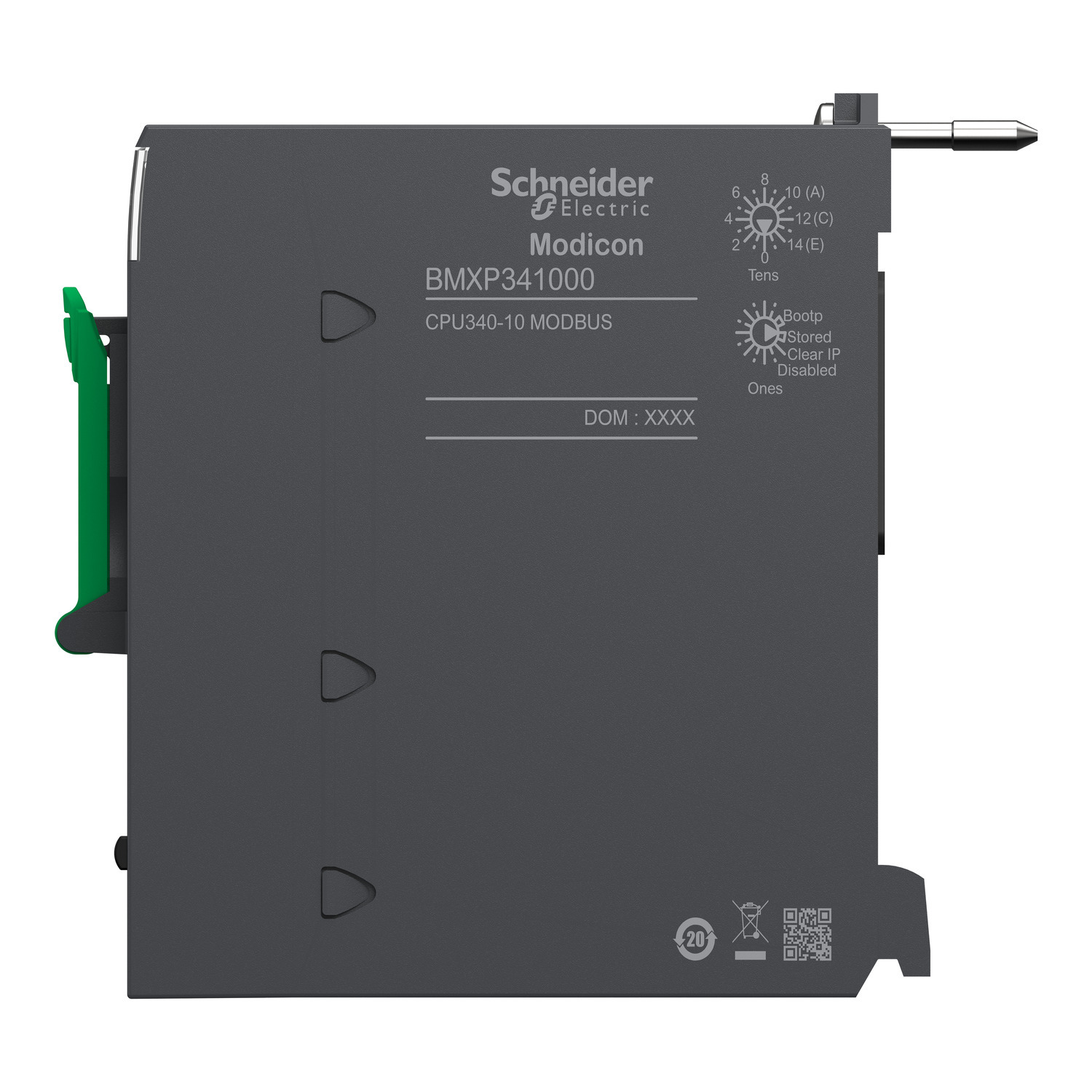

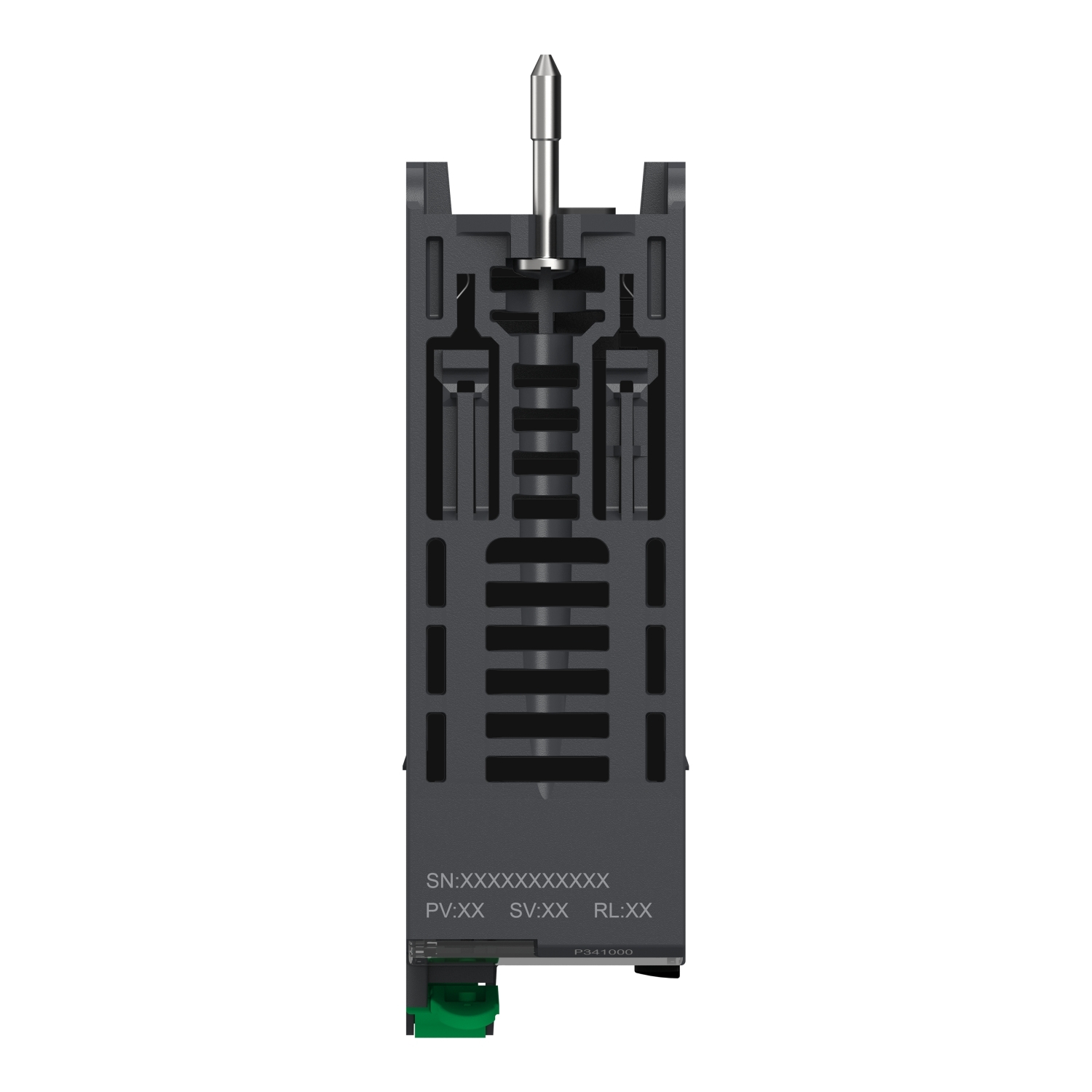

BMXP341000 Modicon Processor Module, 2048 kB Memory, 512 I/O Single Rack I/O Capacity, Rack Mount

MFR #:
BMXP341000
UPC:
785901476368
Item #:
136905
$1,062.03 each
Product Details

This processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It offers a maximum of 2 rack configuration, 20 application specific channels and 11 slots. It is a module with a current consumption of 72mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication processor module interfaces are 2 Ethernet modules and 2 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 512 multi-rack configuration discrete I/O processor capacity and 128 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports 128kb data, 2048kb, 1792kb program internal RAM memory capacity. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.

Manuals and Documentation

Features

  • M340 serves as a all-in-one CPU
  • Plug-and-work solution
  • Reduced startup time
  • Increased network reliability and maintainability
  • Reduced total cost of ownership

Specifications

Identifiers

Identifiers
Manufacturer Part Number
BMXP341000
GTIN
03595863910698
Identifiers
UPC
785901476368
EAN
3595863910698

General Information

General Information
Manufacturer
Schneider Electric
Brand
Schneider Electric
Country Of Origin
FR
General Information
Warranty
18 Months
Standards Approvals
RoHS Compliant | IEC 61131-2 | EN 61000-6-4 | EN 61000-6-2 | EN 61010-2-201 | CE Certified | REACH Compliant | Green Premium | WEEE Compliant | ECCN: EAR99 | PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Technical Information

Technical Information
Communication Ports
RJ45 Non-Isolated RJ45 Serial Link RS232C/RS485, USB Port 12 MBS
Maximum IOCapacity
512 I/O Single Rack
Memory
2048 kB
Technical Information
Mounting Type
Rack
Operating Temperature
0 to 60 deg C
