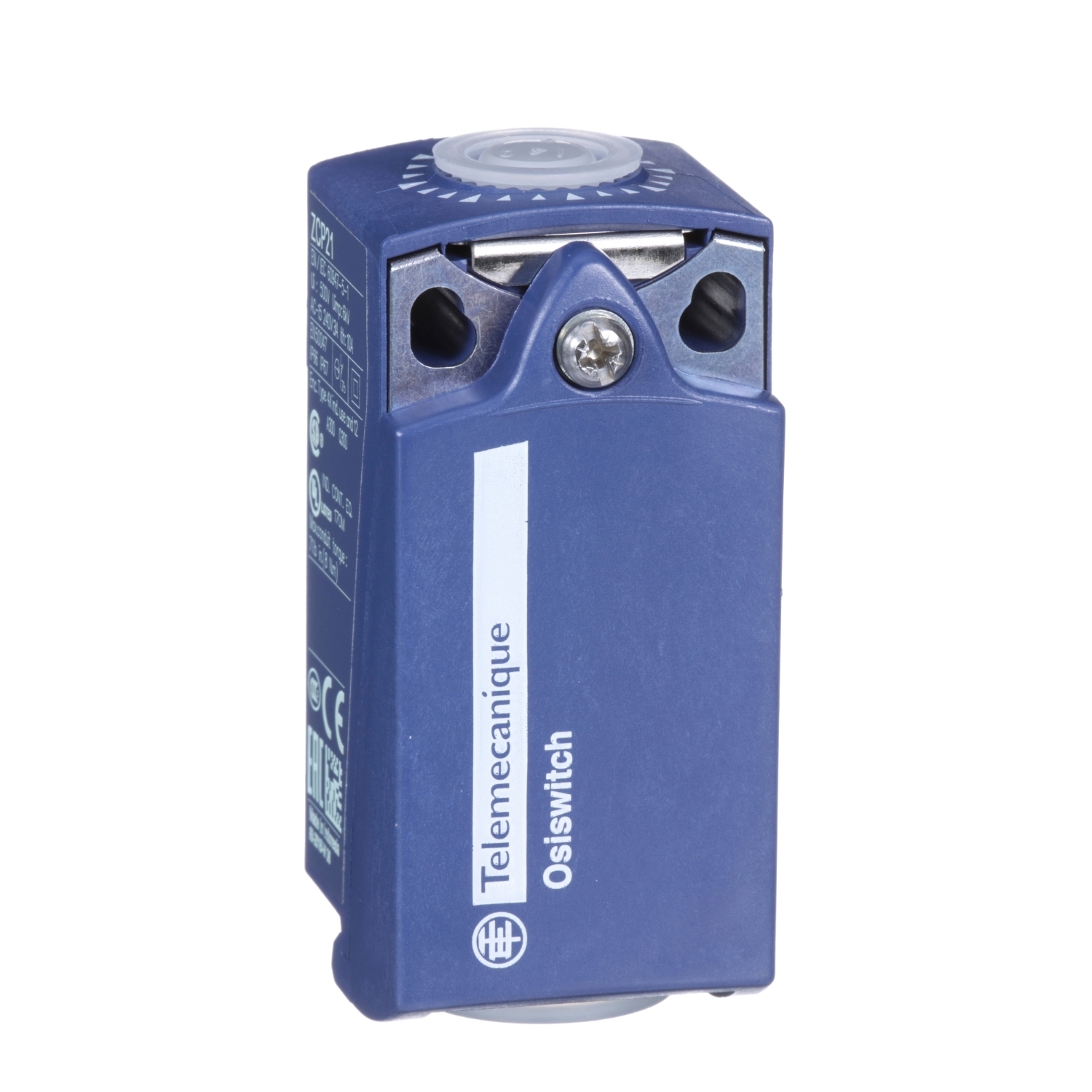

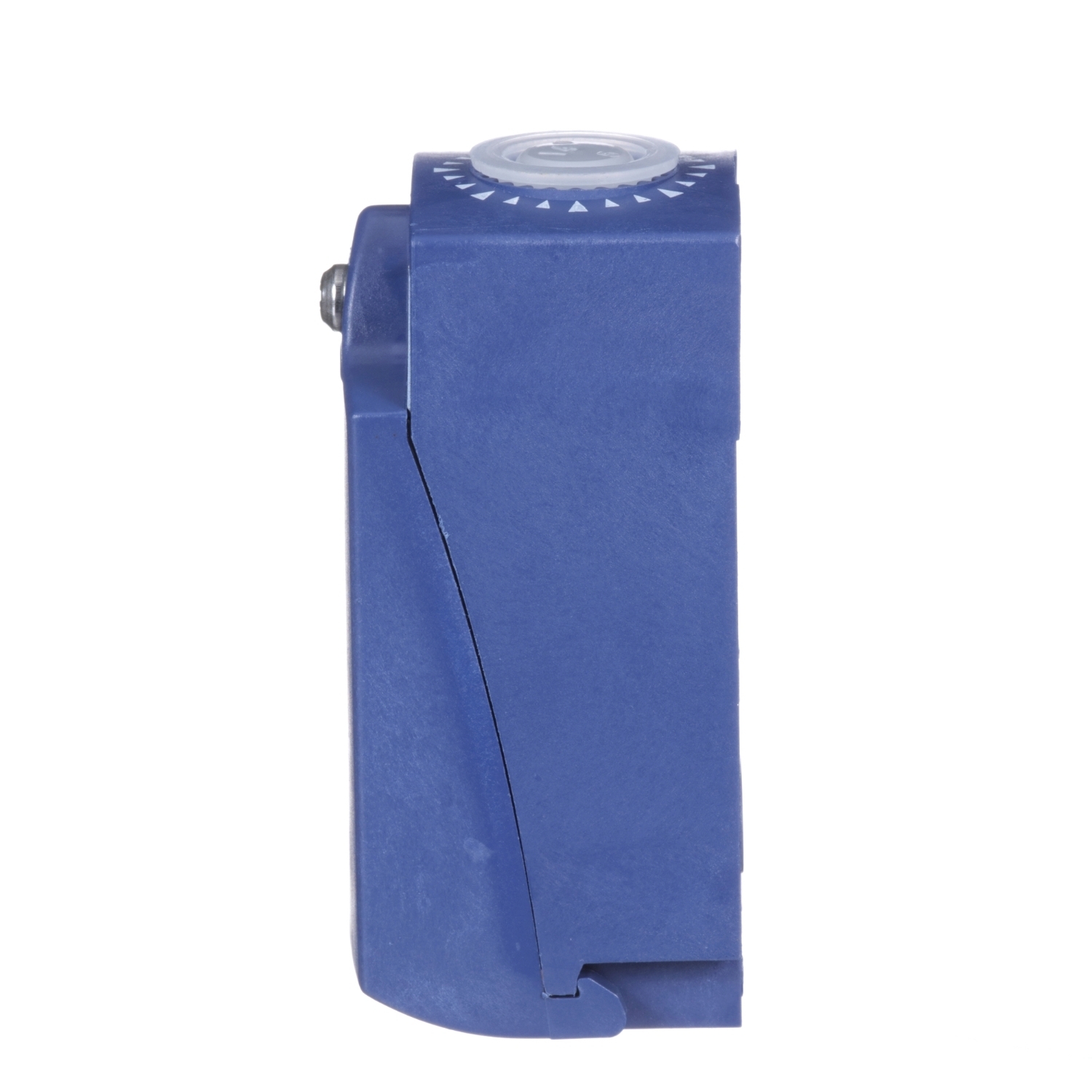

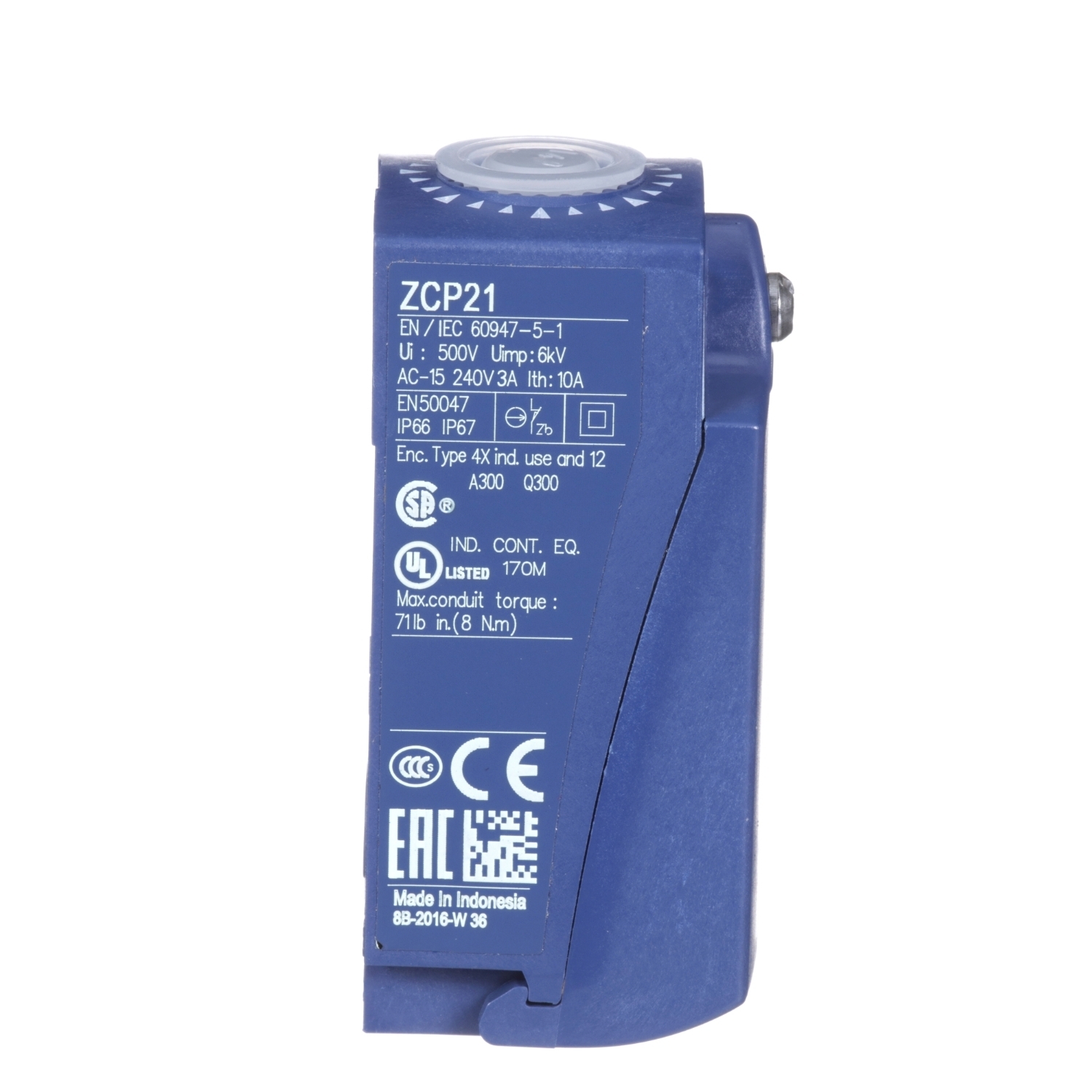

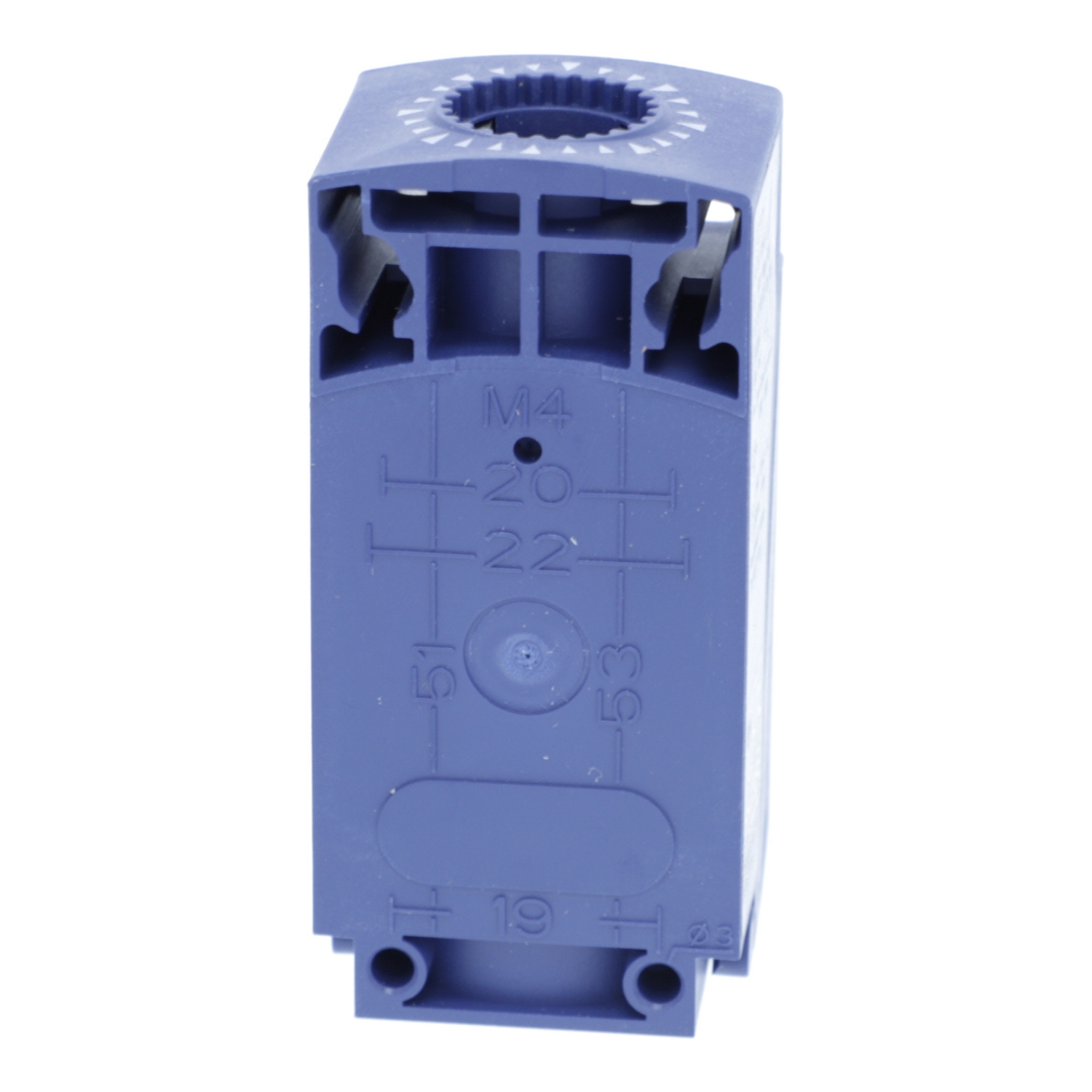

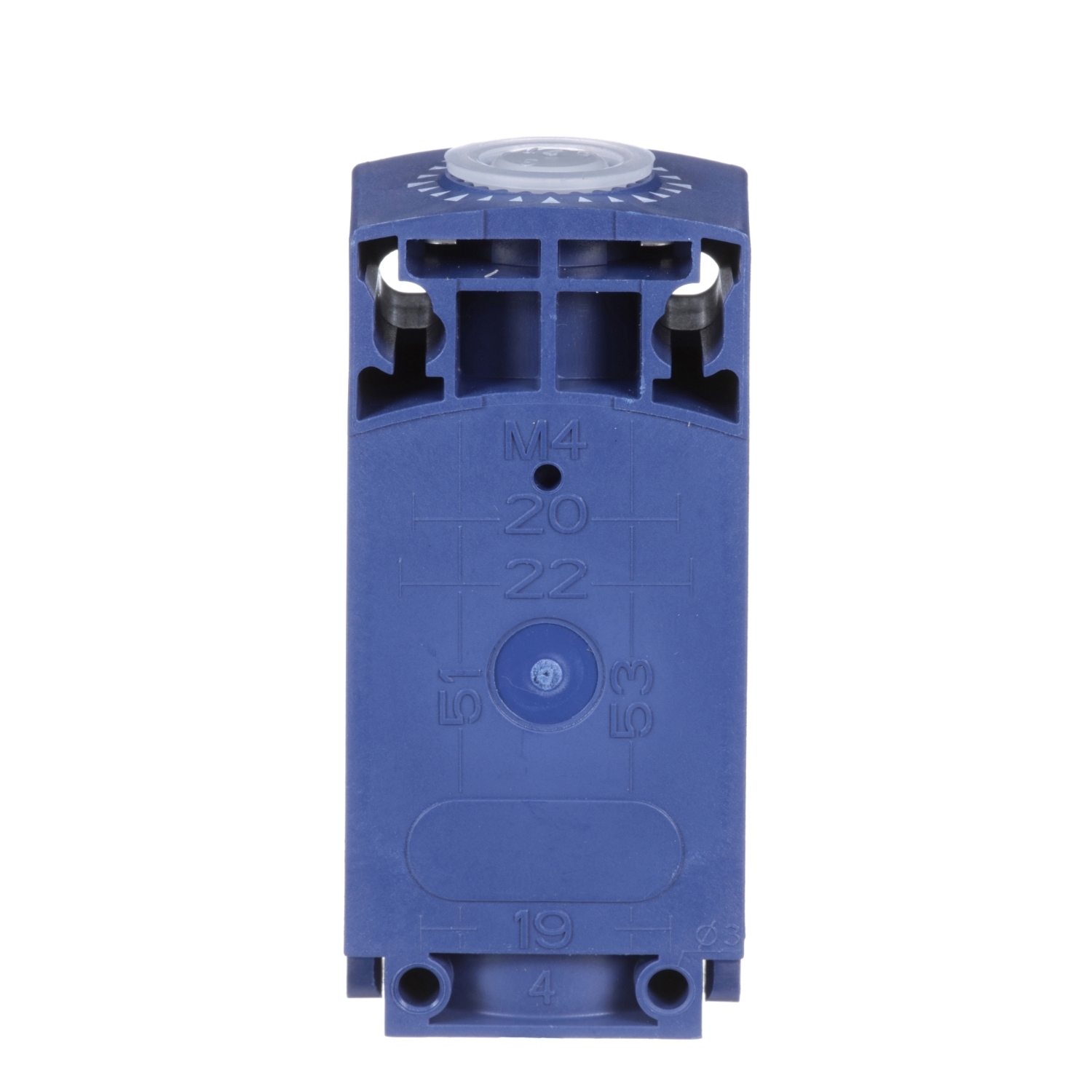

Osiswitch, limit switch body, ZCP, compact body, 1 NC and 1 NO, snap action
MFR: Telemecanique Sensors
MFR #: ZCP21
UPC: 785901290384
Item #: 133201
Osiswitch, limit switch body, ZCP, compact body, 1 NC and 1 NO, snap action
MFR #: ZCP21
UPC: 785901290384
Item #: 133201
Availability
| Location | Available Qty |
|---|---|
| Available | 3 |
$27.62
each
OsiSense XC compact modular metal limit switches meet the European standard (EN50047) for positive opening contacts, even in snap action versions which allow use in safety applications. XCKD range has a wide range of body types, different types of heads, and many limit switch arms that can be purchased as complete limit switches or as subcomponents that can be assemblied by the user to meet their specific requirement. OsiSense XC compact modular metal limit switches are often used in the packaging, materials handling, conveying, machining, food and beverage, service sector, and many more applications. These limit switches are UL Listed, CSA Certified, meet the appropriate IEC standards and are CCC.
Manuals and Documentation
- Catalog Number
- ZCP21
- Manufacturer
- Telemecanique Sensors
- Brand
- Telemecanique
- Sub Brand
- ZCP
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- France
- Made in USA
- No
- Action
- Snap action
- Amperage Rating
- 10
- Application
- XCKP
- Connection
- Screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
- Contact Configuration
- 1 NC + 1 NO
- Number of Poles
- 2
- Operating Cycles
- 5000000 CYCLES, DC-13 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
- Special Features
- FIXED
- Standard
- IEC, UL LISTED, CSA
- UPC
- 785901290384
- GTIN
- 03389110180206
- Item Type
- Limit switch body
- Size
- 1.18
- Operating Temperature
- -25-70 A Degrees C
