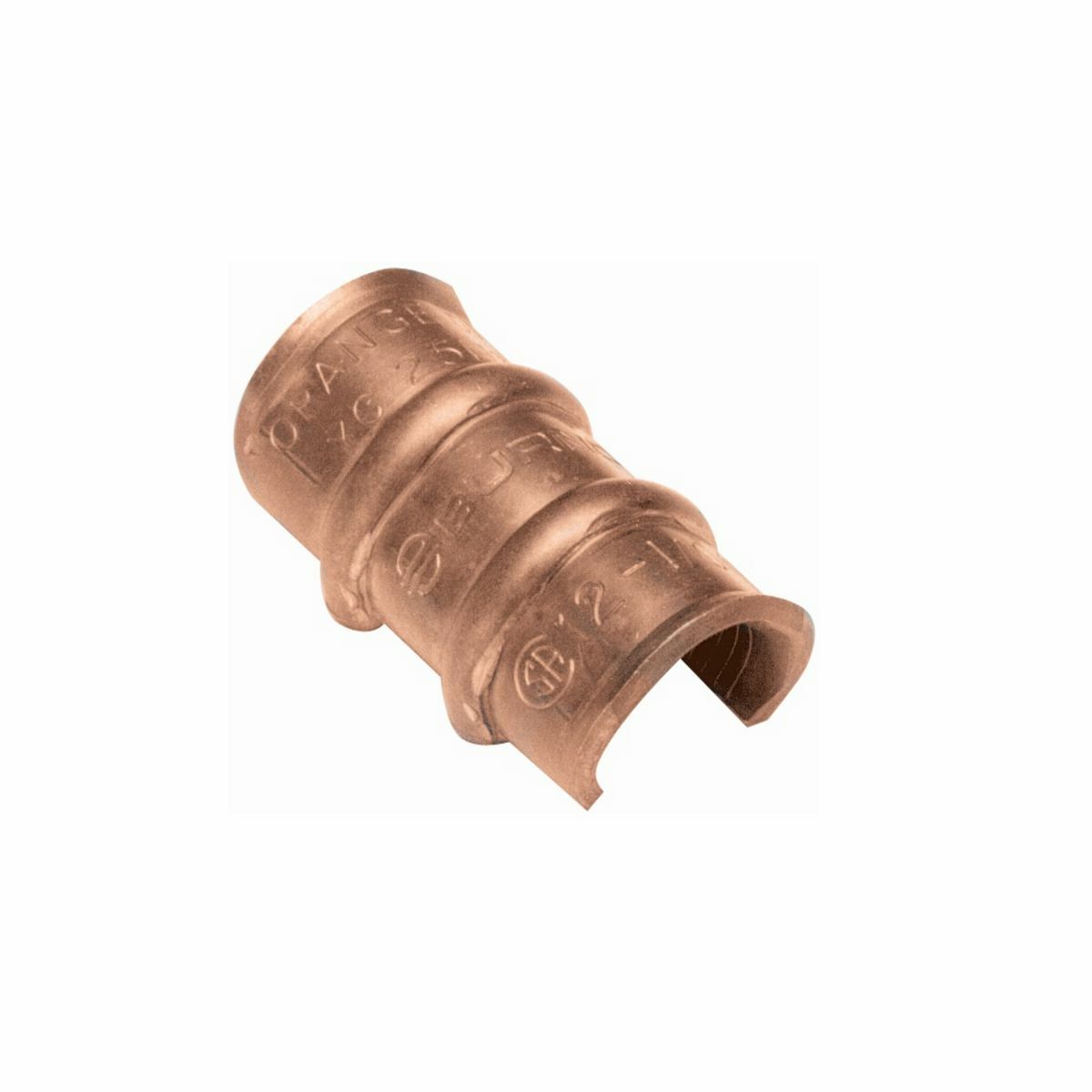

YC6L12 Type YC-L Thinwall Compression C-Tap Connector, Figure C Shape, 8 AWG Main/Run, 12 to 8 AWG Tap, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YC6L12
- UPC:
- 781810040126
- Item #:
- 132985
YC6L12 Type YC-L Thinwall Compression C-Tap Connector, Figure C Shape, 8 AWG Main/Run, 12 to 8 AWG Tap, Copper
- MFR #:
- YC6L12
- UPC:
- 781810040126
- Item #:
- 132985
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$9.67
each
Manuals and Documentation
| Catalog Number | YC6L12 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Tap |
| Finish | Tin-Plated |
| Material | COPPER |
| Special Features | Features: Manufactured Form High Conductivity Wrought Copper: Provides Low Resistance And Excellent Electrical Conductivity, Range-Taking Connector: Lowers Inventory Requirements, Reinforced Ribs: Provides Maximum Pull-Out Values, Compact Size: Easy To Tape And Insulate Connection, Economical: Provides Low Installed Cost,Type YC-L Is A Thin-Wall High Conductivity Copper Connector For Making Copper Tap And Parallel Connections From #14 To 3/0 AWG, Die Index: 8 Element A, Shape: C, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840 And MD7-34R Tool, W4CVT Die, (1), Y2MR Tool, (2), Wire Strip Length: 5/8 IN, Color Code: Gray |
| Standard | UL 486A-486B |
| UPC | 781810040126 |
| GTIN | 00781810040126 |
| Item Type | YC-L Series |
| Temperature Rating | 194 |
| Cross Reference Products | TWCTR6T12, 54715 |
