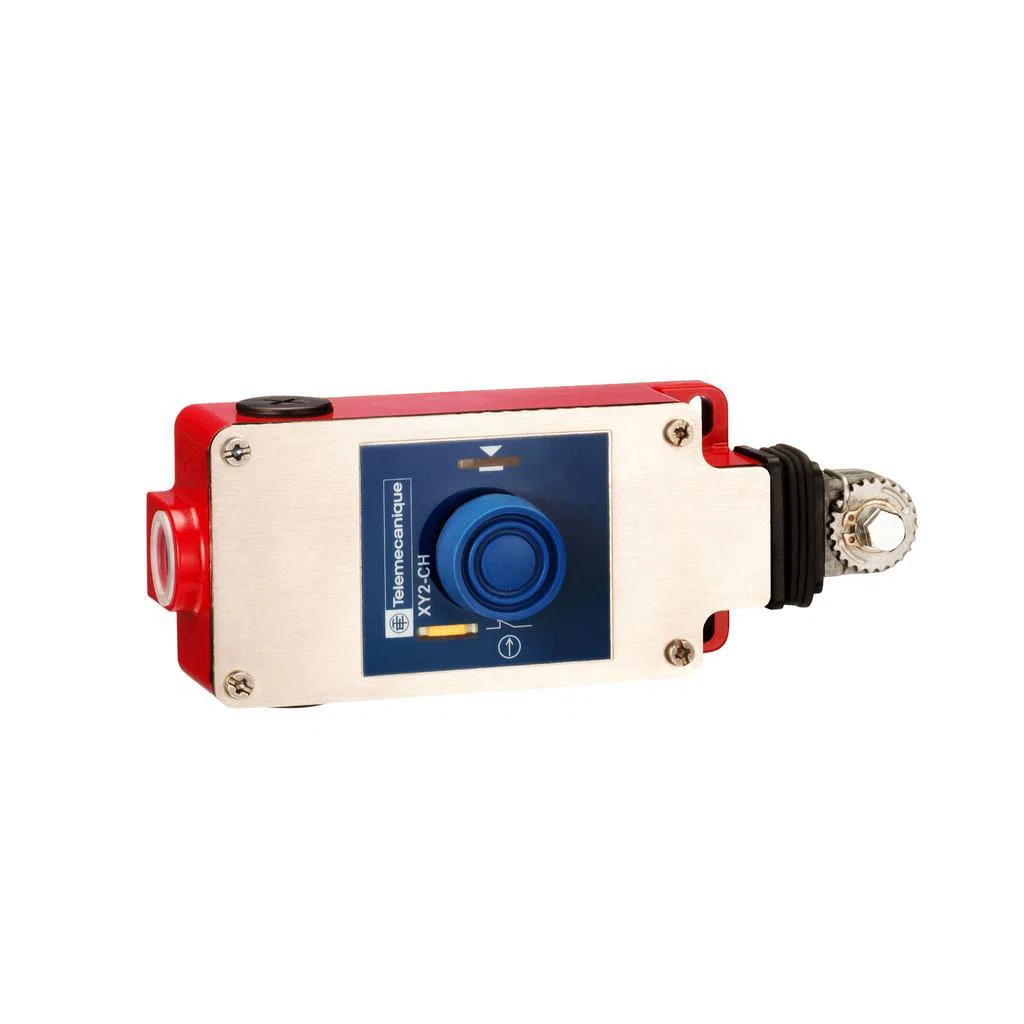

XY2CH13270H29 Latching Emergency Stop Rope Cable Pull Switch, 300 V AC, 10 A, 2NC Contact
- MFR #:
- XY2CH13270H29
- UPC:
- 785901771784
- Item #:
- 1326970
XY2CH13270H29 Latching Emergency Stop Rope Cable Pull Switch, 300 V AC, 10 A, 2NC Contact
- MFR #:
- XY2CH13270H29
- UPC:
- 785901771784
- Item #:
- 1326970
Product Details
This XY2CH Emergency Stop Rope pull Switch is designed with a right hand side or a left hand side anchor point, allowing operator to trigger the stop of potentially dangerous machine at any point of its working area. It operates with a maximum rope length of 30 meters. It has a Zamak body with a booted pushbutton reset, Chloroprene bellows, no pilot light and 2 NC slow break contacts. Its B10D reliability data is 4 000 000. This emergency stop rope pull switch is suitable for woodworking machine, shears, conveyor systems, printing machine, textile machine, rolling mills, test laboratories, paint shops, surface treatment works, etc. Its IP65 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, EN/ISO 13850, UL NISD, CSA C22.2 No 14-13 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Manuals and Documentation
Features
- Without pilot light
Specifications
Identifiers
| Manufacturer Part Number |
XY2CH13270H29
|
|---|---|
| GTIN |
03389110973525
|
| UPC |
785901771784
|
|---|---|
| EAN |
3389110973525
|
General Information
| Manufacturer |
YAGEO Corporation
|
|---|---|
| Brand |
Telemecanique
|
| Country Of Origin |
MA
|
| Warranty |
18 months
|
|---|---|
| Standards Approvals |
EN/IEC 60947-5-1/60204-1/60947-5-5 | EN/ISO 13850 | 2009/104/EC Work Equipment Directive | 2006/42/EC Machinery Directive | CE Certified | CCC Certified | 10 gn 10…150 Hz EN/IEC 60068-2-6 Vibration Resistance | 50 gn 11 ms EN/IEC 60068-2-27 Shock Resistance | RoHS Compliant | REACH Compliant | PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov | Green Premium™ Listed
|
Technical Information
| Action |
Slow-Break
|
|---|---|
| Actuator |
Booted Pushbutton
|
| Amperage Rating |
10 A
|
| Contact Configuration |
2NC
|
| Contact Rating |
3 A at 240 V AC, 0.27 A at 250 V DC
|
| Enclosure Type |
IP65
|
| Material |
Zamak
|
|---|---|
| Series |
XY2CH
|
| Temperature Rating |
-13 to 158 deg F
|
| Terminal Type |
Screw Clamp
|
| Type |
Latching Emergency Stop Rope
|
| Voltage Rating |
300 V AC
|
