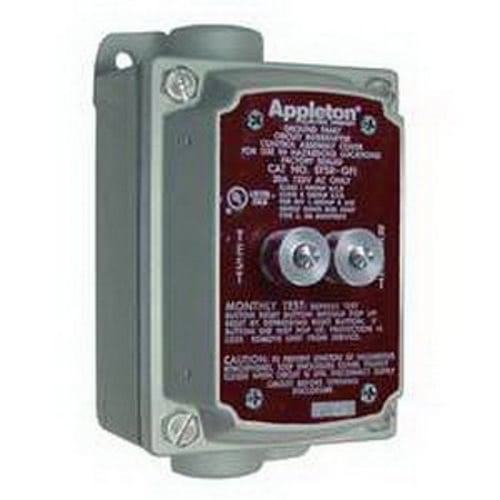

GFI Factory Sealed Ground Fault Circuit Interrupter with Cover and Box; 125 Volt AC, 20 Amp
MFR: Appleton Electric
MFR #: EFSC150GFI
UPC: 781381671125
Item #: 132675
GFI Factory Sealed Ground Fault Circuit Interrupter with Cover and Box; 125 Volt AC, 20 Amp
MFR #: EFSC150GFI
UPC: 781381671125
Item #: 132675
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2117.56
each
EFSR-GFI Series 1-Gang Ground Fault Circuit Interrupter, Voltage Rating: 125 VAC, Amperage Rating: 20 AMP, Frequency Rating: 50 - 60 HZ, Trip Type: 5 MILAMP Trip Setting, Enclosure: NEMA 3, 3R, 7BCD, 9EFG, Material: Malleable Iron, Mounting: Surface Mount With 1/2 IN Feed-Thru Hub, Standard: Class I, Group B, Class I, Groups C, D, Class II, Groups E, F, G, Class III, UL Listed: E81751, UL Standard: 943, 1203, For U-Line 20 AMP Receptacles
Manuals and Documentation
- Catalog Number
- EFSC150GFI
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Country of Origin
- Mexico
- Made in USA
- No
- Amperage Rating
- 20
- Application
- For U-Line 20 AMP Receptacles
- Enclosure
- NEMA 3, 3R, 7BCD, 9EFG
- Special Features
- GFI cover and box; 5 MILAMP Trip setting; Provides required ground fault protection for portable electrically-operated devices; For ground fault protection in hazardous locations; Well suited for use in highly corrosive atmospheres and wet locations; Factory sealed construction; No external seals are required; Arcing is confined within the device's interior sealed chamber; Smooth-operating test and reset buttons; Can be installed in standard EFD Series mounting boxes; Cover bolts, test and reset buttons and shafts are made up of stainless steel
- Standard
- Class I, Group B; Class I, Groups C, D; Class II, Groups E, F, G; Class III; UL Listed: E81751; UL Standard: 943, 1203
- UPC
- 781381671125
- GTIN
- 00781381671125
- Item Type
- EFSR-GFI Series 1-Gang Ground Fault Circuit Interrupter
- Voltage Rating
- 125
