Product Details

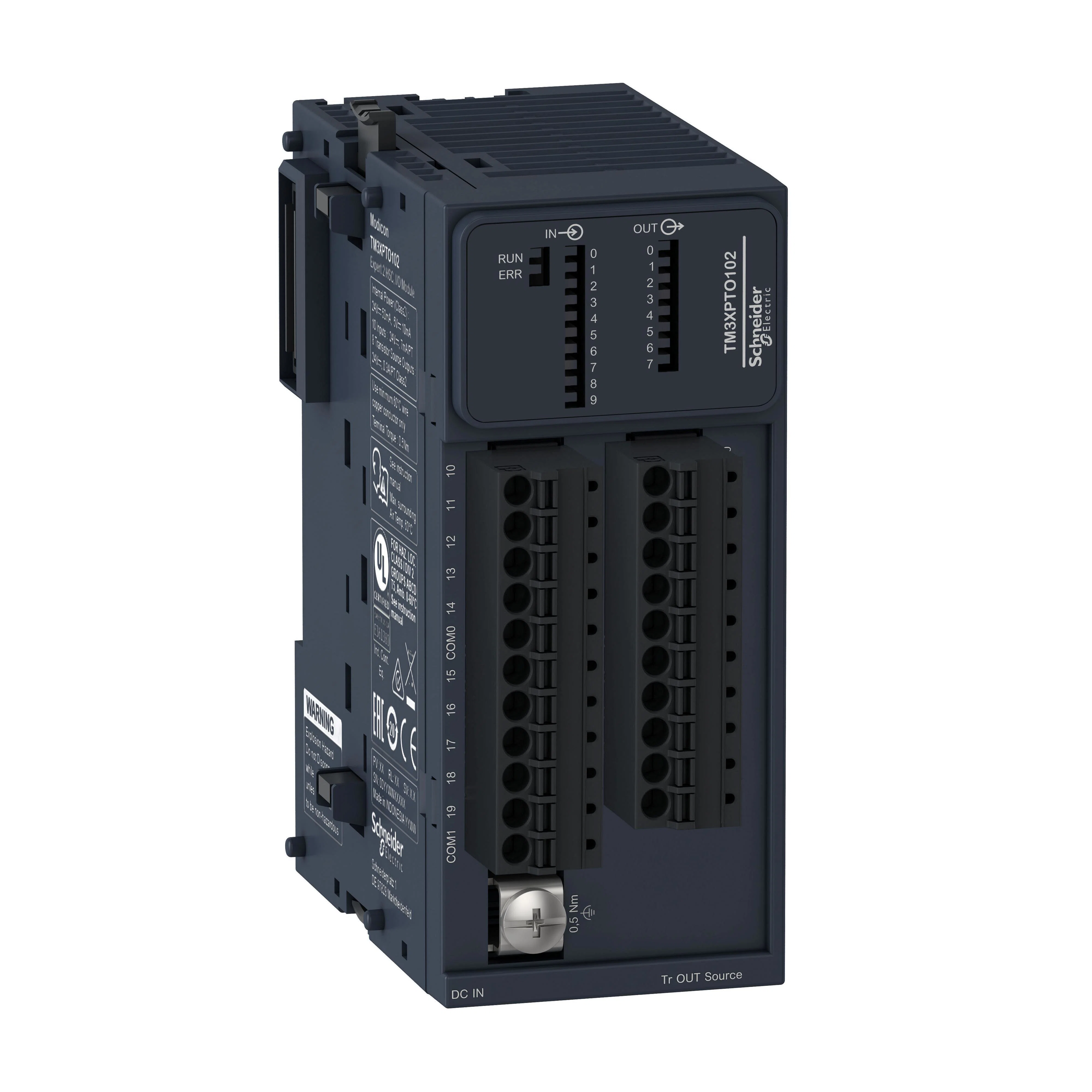

This product is part of Modicon TM3, a range of expansion I/O modules for Modicon plcs. This counter module provides 10 fast inputs and 8 fast outputs. It is a high-speed counter with reflex output management and event management. It is used to count the pulses generated by a sensor or to process signals from an incremental encoder. Its counting frequency is 200kHz. It works via a 24VDC external power supply. It is furnished with a removable spring terminal for electrical connection with pitch 3.81mm adjustment for inputs and supply. It is an IP20-rated product. Its dimensions are 39mm wide, 85mm deep and 90mm high. It weighs 0.150kg It is designed to accept high-speed pulse-type input signals for counting and to provide high-speed pulse-type output signals. This product is certified by CSA, cULus, IACS E10, RCM, CE, UKCA and EAC. This module is compatible with Modicon M262 motion/logic controller and is configurable with EcoStruxure machine expert software. It is delivered in 1 package (PCE type). It is mounted on a symmetrical DIN rail. Or with a specific kit for plate or panel mounting. The specially developed Modicon TM3 I/O system enables flexible and customizable expansion of the I/O terminals in all the controllers. From design and development to commissioning and maintenance, EcoStruxure Machine Expert is a complete machine-building solution.
Manuals and Documentation
Features
- Expansion I/O modules for Modicon M221, M241, M251 and M262 controllers
- Modularity and easness of installation
- Large choice of I/O system to enhance the capabilities of ModiconM2xx plc
- Intuitive machine programming with EcoStruxure Machine Expert
- Modicon TM3 system allows Machine plc flexible, customizable I/O extension
Specifications
Identifiers
| Manufacturer Part Number |
TM3XFHSC202G
|
|---|
| EAN |
3606489604288
|
|---|
General Information
| Manufacturer |
Schneider Electric
|
|---|---|
| Brand |
Schneider Electric
|
| Country Of Origin |
US
|
|---|---|
| Standards Approvals |
CSA | CULus | IACS E10 | RCM | PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov | CSA C22.2 No 142ANSI/ISA 12-12-01UL 1604CSA C22.2 No 213EN/IEC 61131-2:2007UL 508
|
Dimensions
| Dimensions |
3.54 in H x 1.54 in W x 3.35 in D
|
|---|
Technical Information
| Series |
M Series
|
|---|---|
| Temperature Rating |
-20 to 60 deg C
|
| Voltage Rating |
24 V DC
|
|---|
