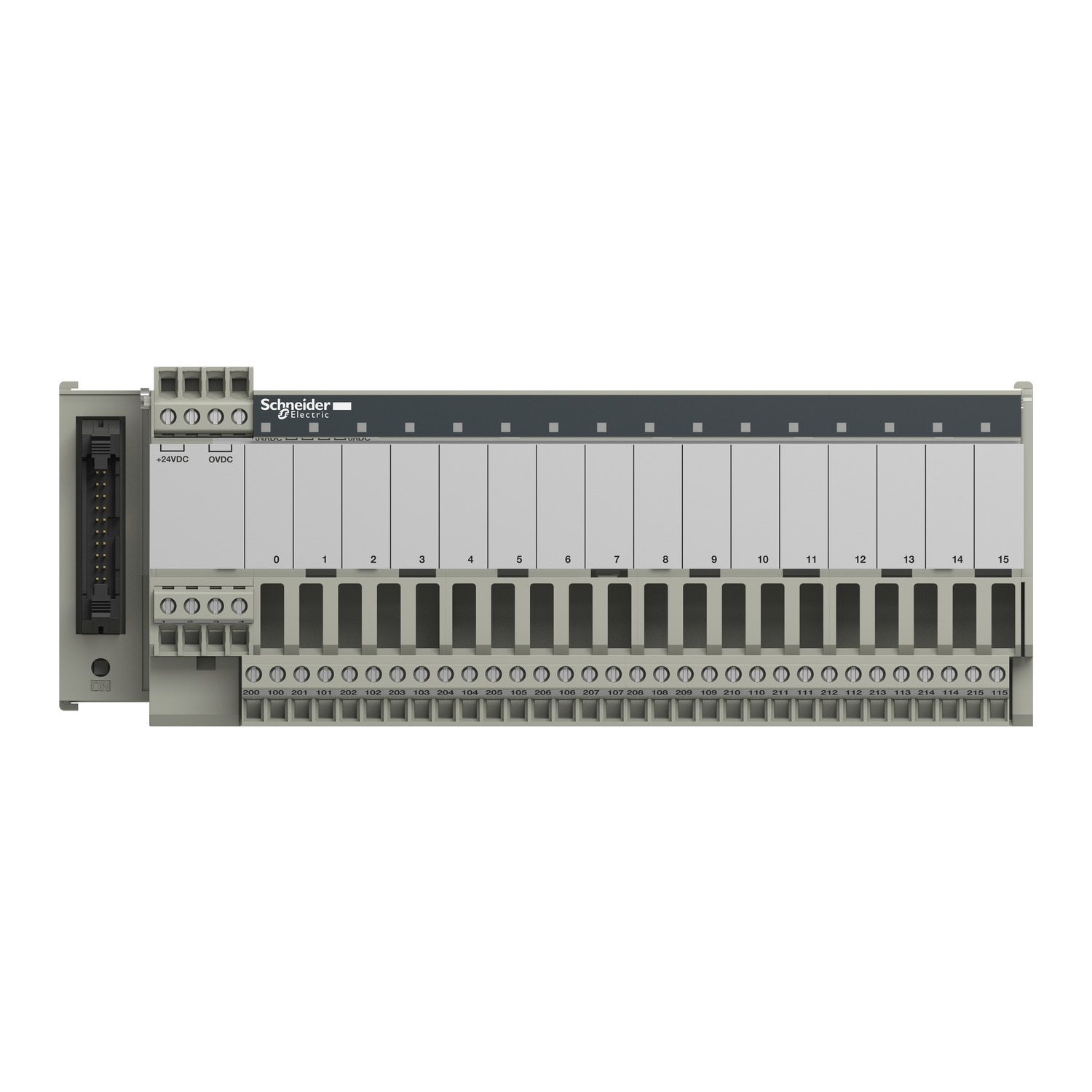

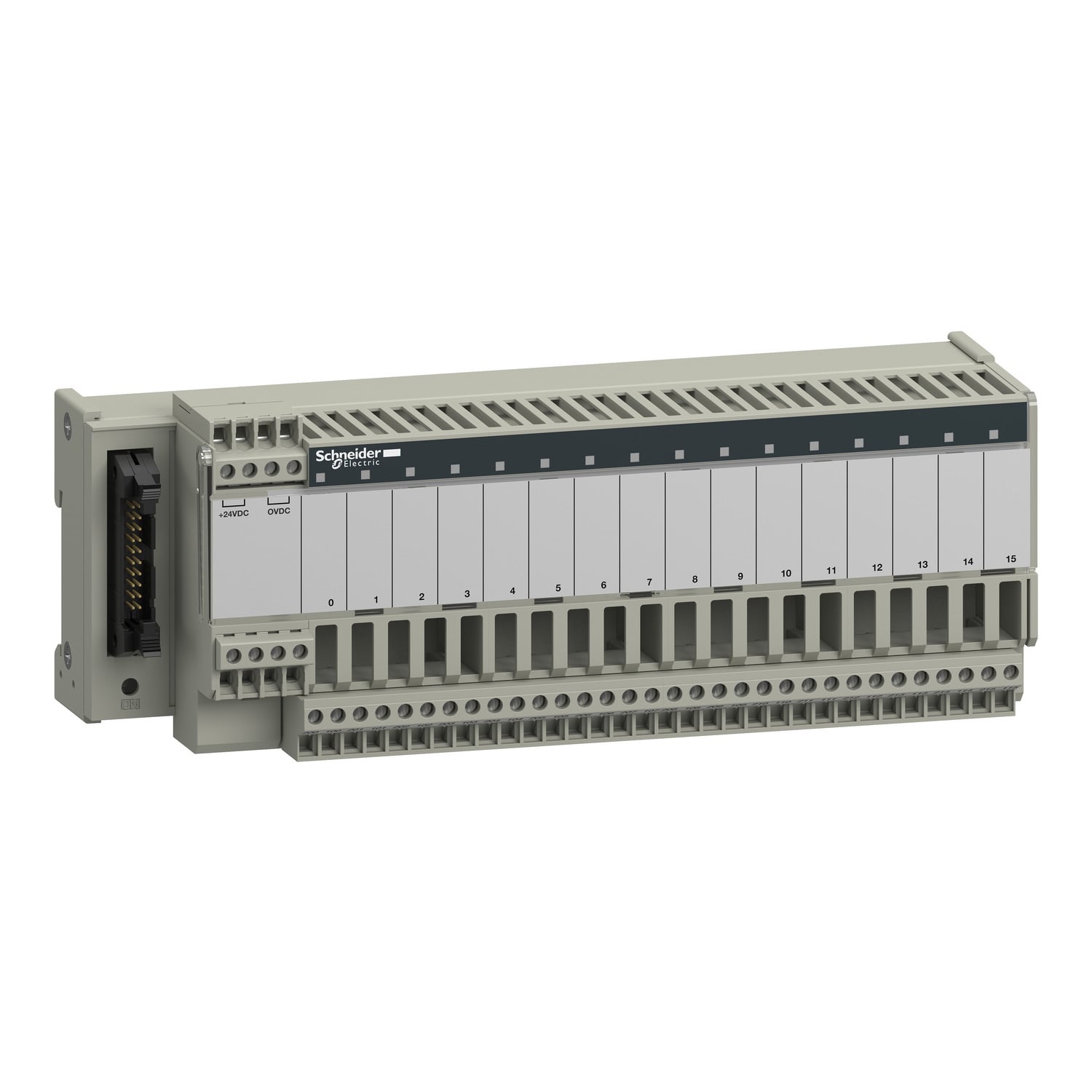

sub-base - soldered solid state output relay ABE7 - 16 inputs - 115 V AC
sub-base - soldered solid state output relay ABE7 - 16 inputs - 115 V AC
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This product is part of the Modicon ABE7 range, an offer of connection sub bases for Telefast pre-wired system. This soldered solid state output relay sub base offers 16 channels with 2 terminals per channel. The solid state input relay sub base offers a rated supply voltage of 110V/130V AC 50Hz/60Hz for sensor end and 24V DC for PLC end. It is furnished with screw type terminals for electrical connection. It is an IP2x rated product. Its dimensions are 206mm (width) x 58mm (depth) x 77mm (height). It weighs 0.397kg. It is suitable for all types of industrial applications. This product is certified by BV, UL, GL, DNV, CSA, LROS and EAC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Manuals and Documentation
- Catalog Number
- ABE7S16E2F0
- Manufacturer
- Schneider Electric
- Brand
- Schneider Electric
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- France
- Made in USA
- No
- Mounting
- Din Rail
- Power Supply
- 110/130 V AC 50/60 Hz sensor end);24 V DC PLC end)
- Special Features
- Screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09-1.5 mm² AWG 28...AWG 16) flexible with cable end;screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² AWG 26...AWG 12) solid;screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² AWG 26...AWG 14) flexible without cable end;screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.09-0.75 mm² AWG 28...AWG 20) flexible with cable end;screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2-2.5 mm² AWG 24...AWG 14) solid;Internal fuse 1 A 5 x 20 mm fast blow PLC end;adjustable by external fuse fast blow sensor end
- GTIN
- 03389110546279
- Item Type
- Solid state input relay sub-base
