WAGO WAGO Corporation

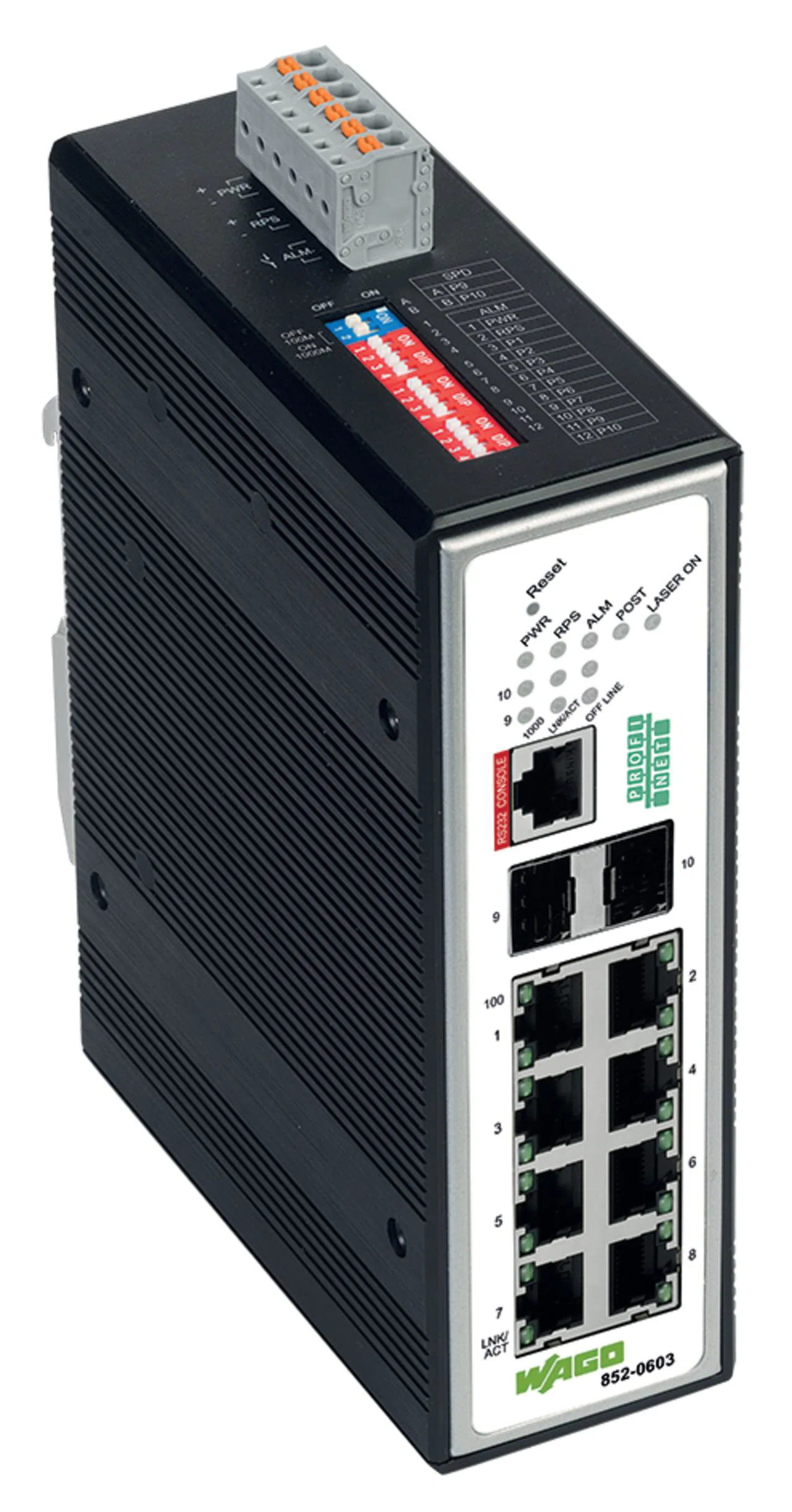

852-603 852, 100Base-TX Network, RJ45 Interface, (8) Ports

MFR #:
852-603
Item #:
1258723
$1,410.40 each
Product Details

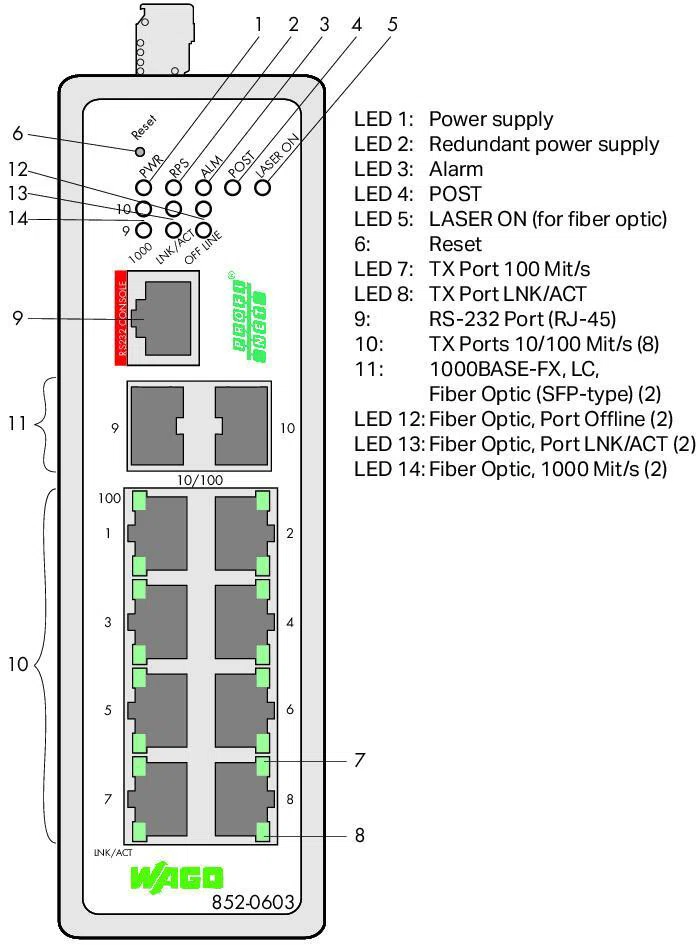

Industrial Managed Switch; 8-port 100Base-TX; 2-Slot 1000BASE-SX/LX; PROFINET; Extended temperature rangeThe configurable 852-603 Industrial Switch is a managed ETHERNET switch equipped with eight 10/100Base-TX copper ports and two SFP slots. It can be configured as a 100Base-FX or 1000Base-SX/LX device (SFP modules are optional). Packaged in a rugged housing, this switch offers both a redundant power supply and relay-based function monitoring. The PROFINET certificate (conformity class B) guarantees easy integration into PROFINET automation systems using the device description file (GSD). In addition, the device supports the PROFINET Netload Class II. The device supports flexible multi-port mirroring configuration via device description file or Web-Based Management. Function blocks allow cyclic PROFINET switch diagnostics to be efficiently implemented within the TIA Portal. An application note that outlines this process is available. Features: Web-based/SNMP management Redundant DC power supply Power supply range: 12 €¦ 60 VDC DIP switches to set alarm functions Full compliance with IEEE802.3, 802.3u, 802.3z, 802.3x, 802.1d, 802.1w, 802.1s, 802.1Q, 802.1p standards Media redundancy protocol (MRP) as manager (MRM) or client (MRC), redundant ring Non-blocking, store-and-forward switching, rapid spanning tree protocol (RSTP) Autonegotiation and AUTO-MDI/MDIC (crossover) VLAN (802.1Q) VID IGMP snooping Port configuration, status, statistics Port trunking and multi-port mirroring SNMP v1/v2c/v3 and RMON Time synchronization via SNTP Storm control, bandwidth limitation and loop detection

Manuals and Documentation

Features

  • Web-based/SNMP management
  • Power supply range - 12 60 VDC
  • DIP switches to set alarm functions
  • Media redundancy protocol (MRP) as manager (MRM) or client (MRC), redundant ring
  • Nonblocking, storeandforward switching, rapid spanning tree protocol (RSTP)
  • Autonegotiation and AUTO-MDI/MDIC (crossover)
  • IGMP snooping
  • Port configuration, status, statistics
  • Port trunking and multi-port mirroring
  • Time synchronization via SNTP
  • Storm control, bandwidth limitation and loop detection

Specifications

Identifiers

Identifiers
Manufacturer Part Number
852-603
Identifiers
EAN
4055143908030

General Information

General Information
Manufacturer
WAGO Corporation
Brand
WAGO
General Information
Standards Approvals
RoHS Compliant,No Exemption | IP30 | IEC 60068-2-6 | IEC 60068-2-27 | EN 61000-6-2

Technical Information

Technical Information
Interface
RJ45
Network Type
100Base-TX
Technical Information
Number Of Ports
8
Series
852
