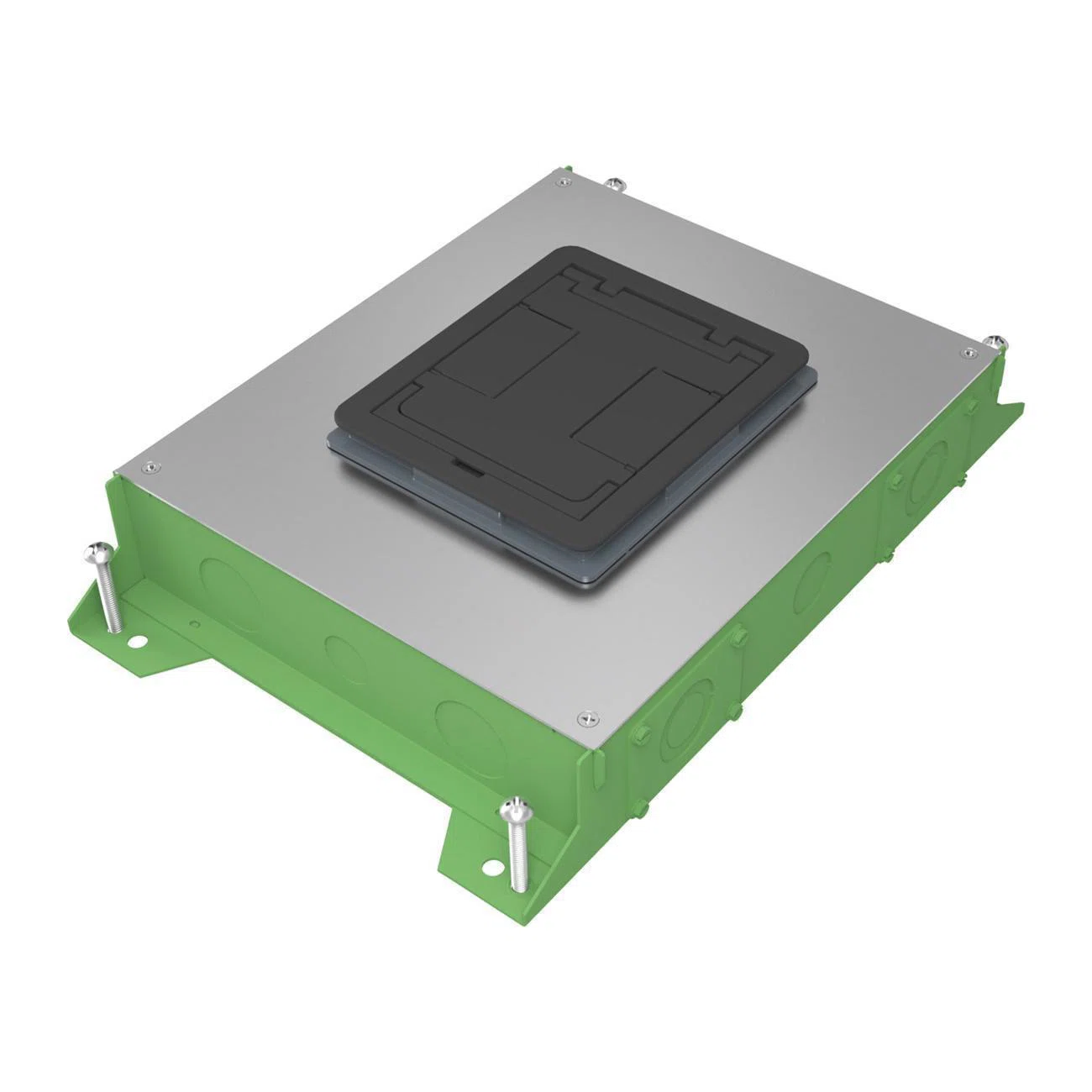

RFBA4R30OG Resource RFBA Series Standard On Grade Floor Box With Rectangular Activations, Steel, 4 Gangs, 20 Knockouts, 17-3/4 in L x 11-15/16 in W x 3-1/2 in H
- MFR:
- Legrand
- MFR #:
- RFBA4R30OG
- UPC:
- 786564105428
- Item #:
- 1256696
RFBA4R30OG Resource RFBA Series Standard On Grade Floor Box With Rectangular Activations, Steel, 4 Gangs, 20 Knockouts, 17-3/4 in L x 11-15/16 in W x 3-1/2 in H
- MFR #:
- RFBA4R30OG
- UPC:
- 786564105428
- Item #:
- 1256696
Availability
| Location | Available Qty |
|---|---|
| Available | 6 ea |
Your go-to floor box just got better. Resource RFB Series Floor Boxes are designed for maximum efficiency throughout an entire building, bringing versatile recessed activations for power and data services to open space areas or directly to workstations. No matter what size you choose, components and accessories work across the entire line interchangeably. Simply mix-and-match as needed for your project. Improved wire and cable routing makes wire pulling much easier in adjacent compartments and around corners. Available in two, four, six and 10 gang models with a variety of covers, colors and profiles. Installs in tile, stone, carpet, terrazzo, wood and polished concrete. Perfect for many applications, including schools, financial institutions, commercial office buildings, hospitality and residential.
Manuals and Documentation
Features
- One consistent design - Mix-and-match Resource RFBA Series Floor Boxes of any size with interchangeable components
- Makes every project installation quick and efficient
- Universal sized conduit feed - Meets all requirements for each box
- 2- and 4-gang shallow boxes accept a 1 conduit feed, while all standard boxes accept a 2 conduit feed
- Improved wire and cable routing - Allows for easier wire pulling in adjacent compartments and around corners, reducing the overall cost for most cabling requirements
- Two finishes - Every box configuration is available in either a standard zinc-plated construction or a lightweight slab-on-grade finish with fusion-bonded epoxy corrosion resistant paint
- Removable dividers post-pour - Fully adjustable before and after the concrete pour
- Adapts to most power and communication needs - Common mounting plates can be used for any of the Resource RFB Series Floor Boxes
- Reduces overall life cycle cost
| Manufacturer Part Number | RFBA4R30OG |
| Brand | Wiremold® |
| Manufacturer | Legrand |
| UPC | 786564105428 |
| Country Of Origin | MX |
| Dimensions | 17-3/4 in L x 11-15/16 in W x 3-1/2 in H |
| Material | Steel |
| Mounting Type | Floor |
| Series | Resource RFBA Series |
| Shape | Rectangular |
| Type | Standard On Grade |
| Alternative Part Number | 17124339 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | ARRA Compliant | Buy American Act Compliant | cULus File No. E2961 Guide QCIT | ECCN EAR99 | LEED Certified | NAFTA Certified | RoHS 2011/65/EU | RoHS 2015/863 | UL 514 |
| Application | Indoor, Schools, Financial Institutions, Commercial Office Buildings, Hospitality, Residential and Commercial Applications |
| Cable Entry Size | 3/4 to 2 |
| Knockout Size | 2 in |
| Number Of Gangs | 4 |
| Number Of Knockouts | 20 |
