WAGO WAGO Corporation

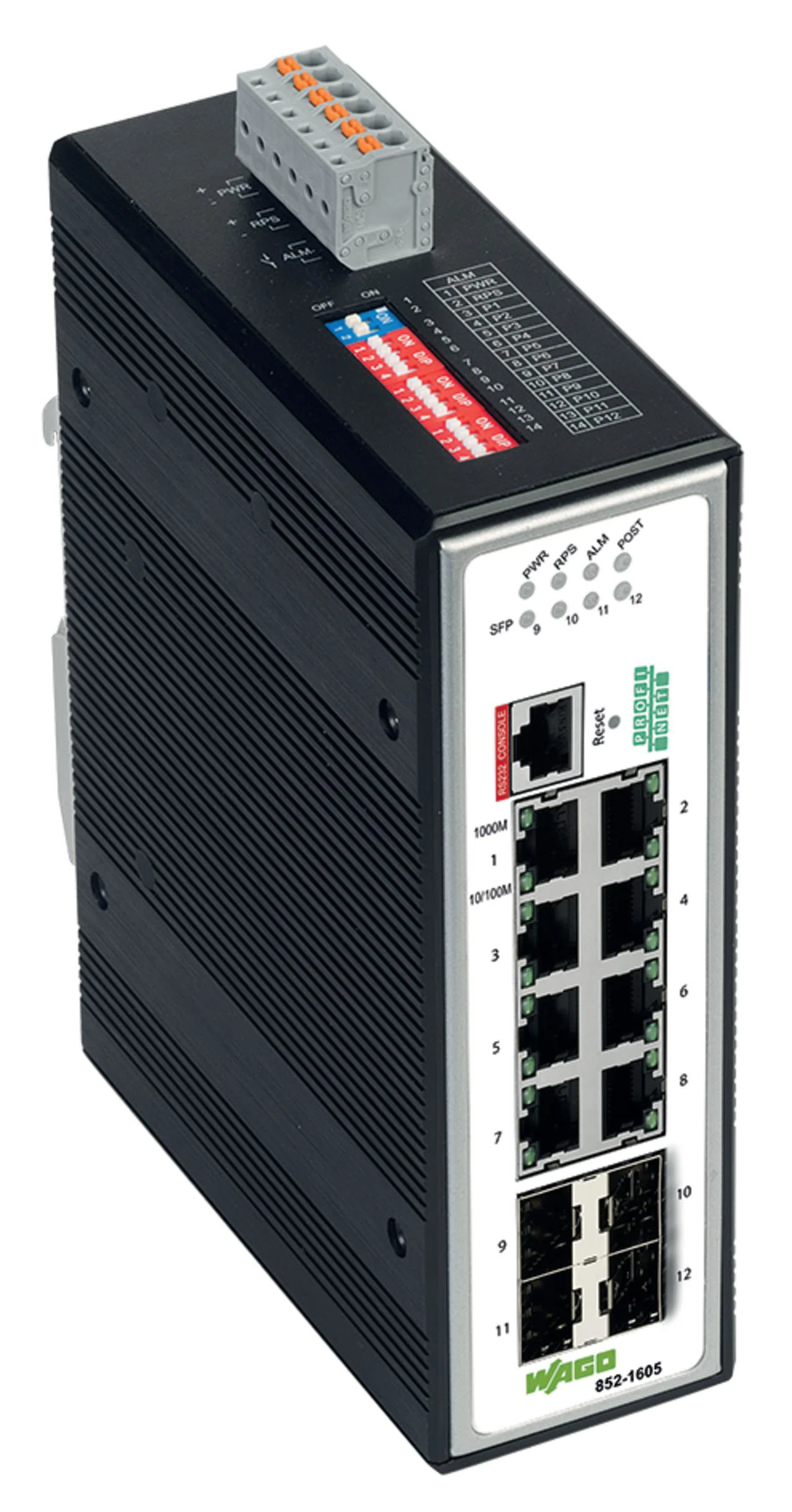

852-1605 852 Managed, Ethernet Network, 1000BASE-T Interface, (8) Ports

MFR #:
852-1605
Item #:
1251072
$1,897.28 each
Product Details

Industrial Managed Switch; 8 Ports 1000Base-T; 4-Slot 1000BASE-SX/LX; PROFINET; Extended temperature range; black metallicThe 852-1605 Industrial Managed Switch is a configurable ETHERNET switch equipped with eight 10/100/1000Base-T copper ports, four SFP-1000Base-SX/LX slots and optional SFP modules. Packaged in a rugged housing, this switch offers both a redundant power supply and relay-based function monitoring. The PROFINET certificate (conformity class B) guarantees easy integration into PROFINET automation systems using the device description file (GSD). In addition, the device supports the PROFINET Netload Class II. The device supports flexible multi-port mirroring configuration via device description file or Web-Based Management. Function blocks allow cyclic PROFINET switch diagnostics to be efficiently implemented within the TIA Portal. An application note that outlines this process is available. Features: Web-based/SNMP management Redundant DC power supply Power supply range: 12 €¦ 60 VDC DIP switches to set alarm functions Full compliance with IEEE802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1d, 802.1w, 802.1s, 802.1Q, 802.1p standards Media redundancy protocol (MRP) as manager (MRM) or client (MRC), redundant ring Non-blocking, store-and-forward switching, rapid spanning tree protocol (RSTP) Autonegotiation and AUTO-MDI/MDIC (crossover) VLAN (802.1Q) VID IGMP snooping Port configuration, status, statistics Port trunking and multi-port mirroring SNMP v1/v2c/v3 and RMON Time synchronization via SNTP Storm control, bandwidth limitation and loop detection

Manuals and Documentation

Features

  • Web-based/SNMP management
  • Power supply range - 12 60 VDC
  • DIP switches to set alarm functions
  • Media redundancy protocol (MRP) as manager (MRM) or client (MRC), redundant ring
  • Nonblocking, storeandforward switching, rapid spanning tree protocol (RSTP)
  • Autonegotiation and AUTO-MDI/MDIC (crossover)
  • IGMP snooping
  • Port configuration, status, statistics
  • Port trunking and multi-port mirroring
  • Time synchronization via SNTP
  • Storm control, bandwidth limitation and loop detection

Specifications

Identifiers

Identifiers
Manufacturer Part Number
852-1605
Identifiers
EAN
4055143918701

General Information

General Information
Manufacturer
WAGO Corporation
Brand
WAGO
General Information
Standards Approvals
RoHS Compliant,No Exemption | IP30 | IEC 60068-2-6 | IEC 60068-2-27 | EN 61000-6-2

Technical Information

Technical Information
Interface
1000BASE-T
Network Type
Ethernet
Number Of Ports
8
Technical Information
Series
852
Type
Managed
